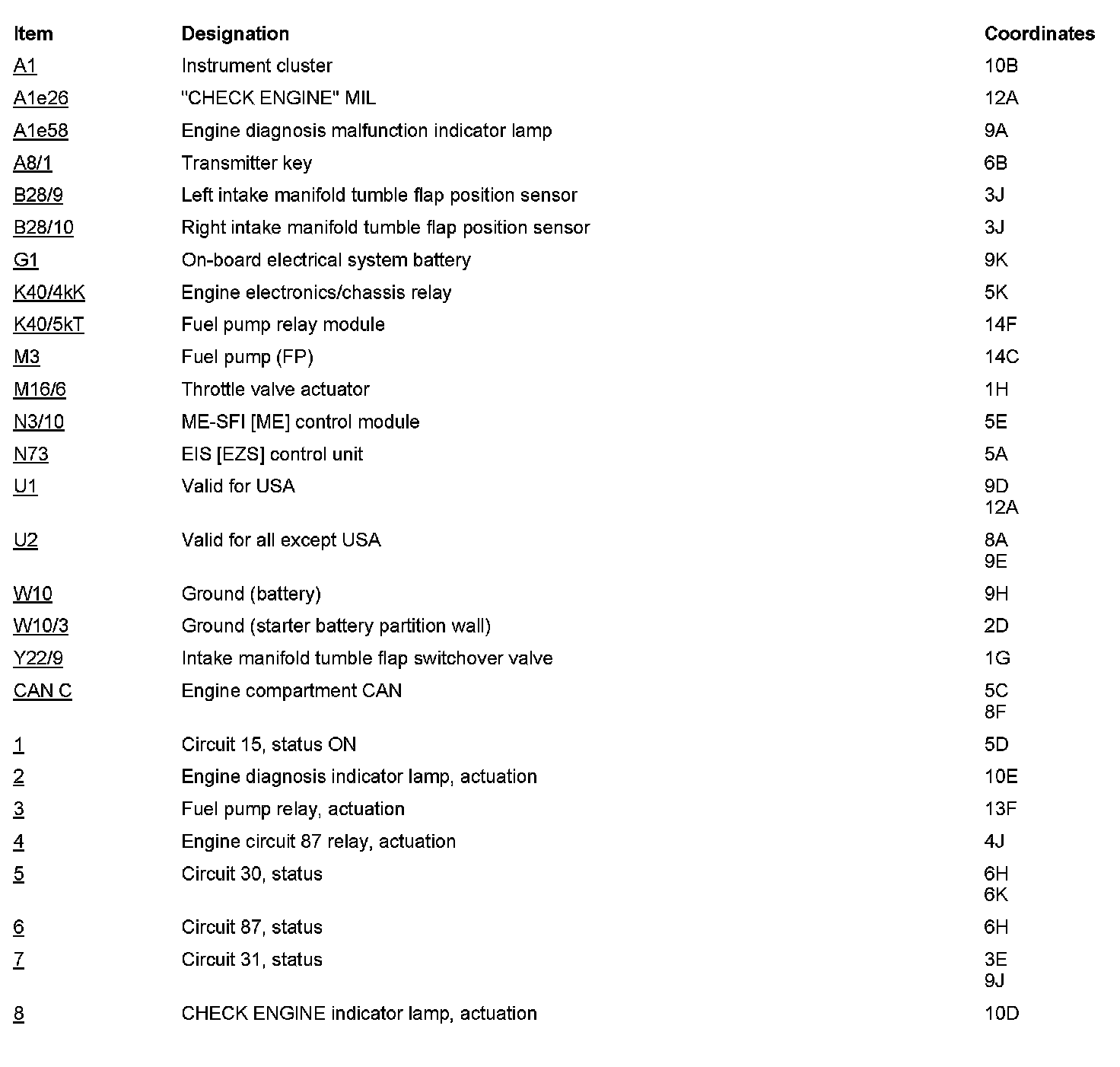

PE07.61-P-2756KA ME Ignition ON, Function Diagram

PE07.61-P-2756KA ME Ignition ON, Function Diagram

Model 230.4
- with Engine 272, 273
- as of model year 2009 /YoM 08 model refinement package










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
