Alternator: Service and Repair
AR15.40-P-5032RX Remove/install
alternator

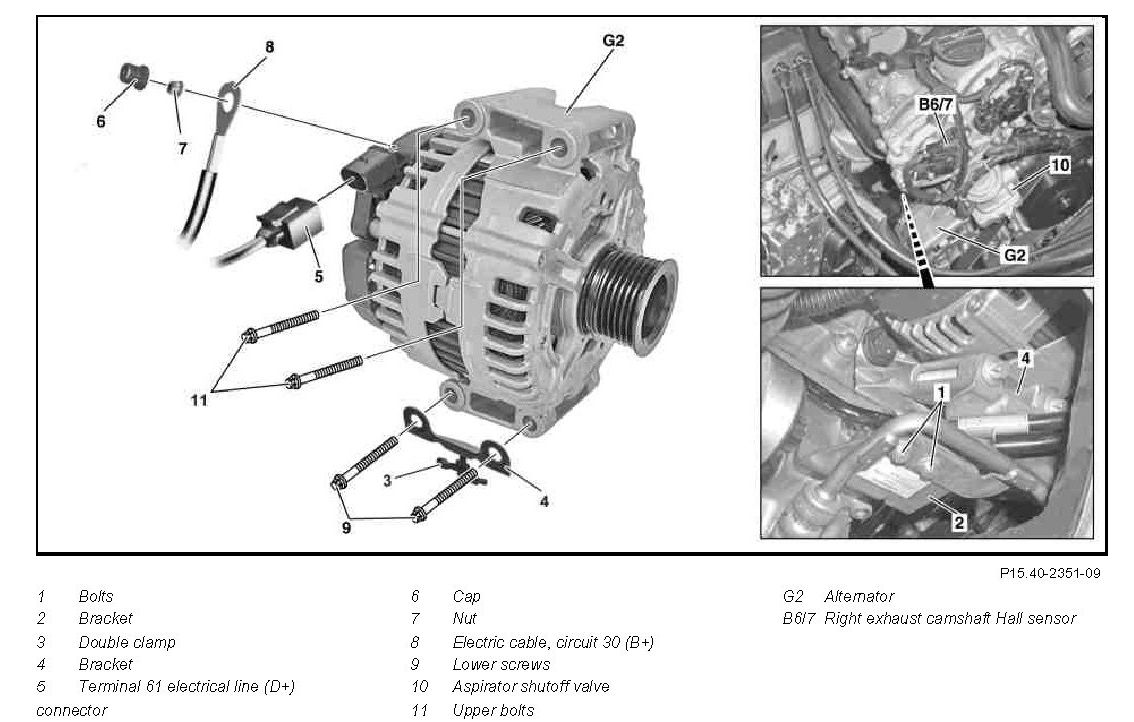

Component Identification:

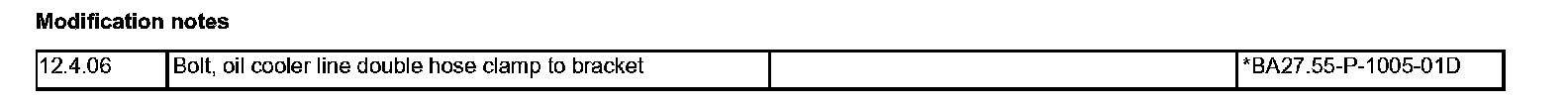

Modification notes:
Remove/install Steps 1-13:

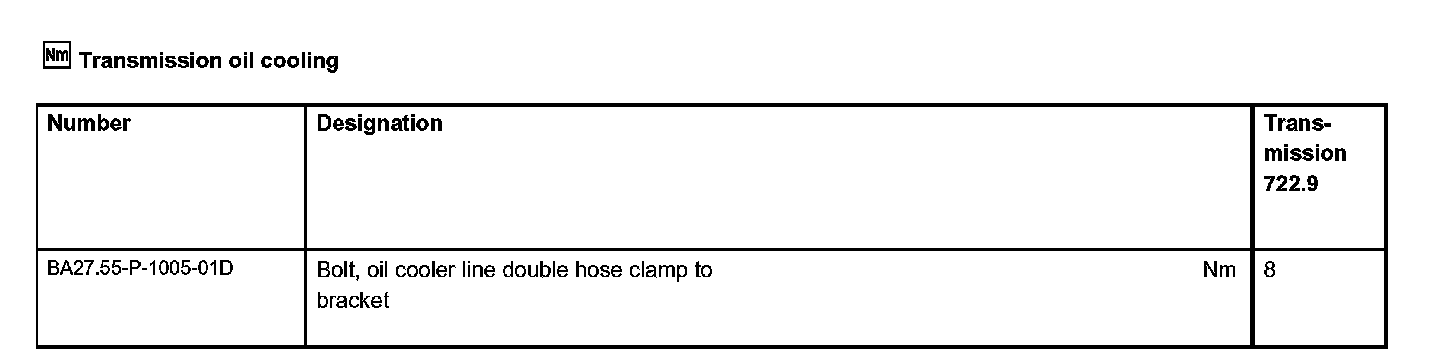

Transmission oil cooling:

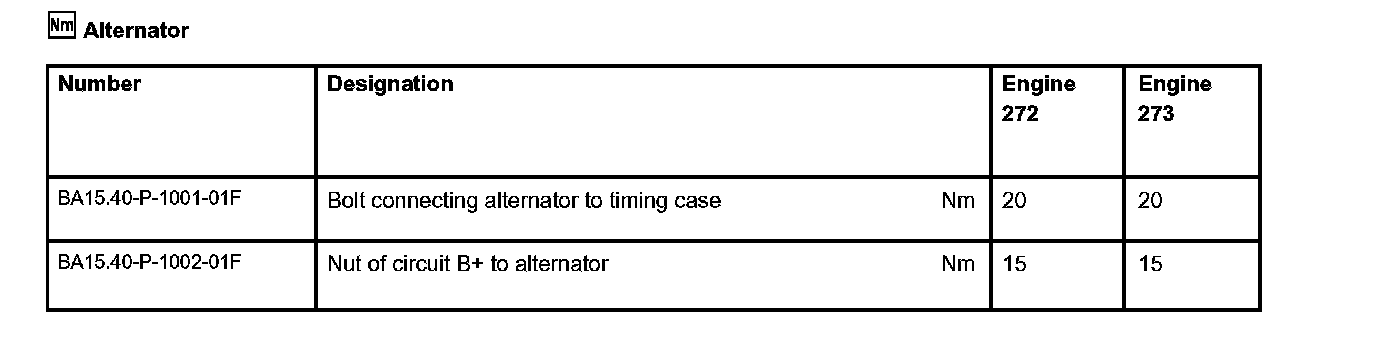

Alternator:

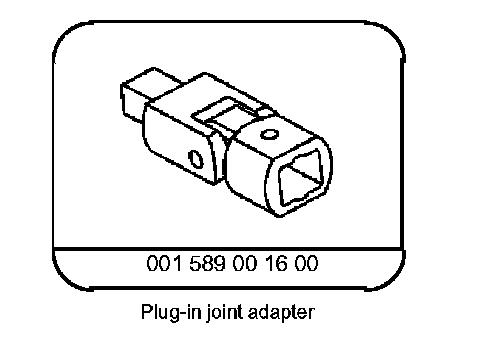

Special Tools:
