BE82.30-P-1000-01E Adjustment Values For Windshield Wiper



BE82.30-P-1000-01E Adjustment Values For Windshield Wiper

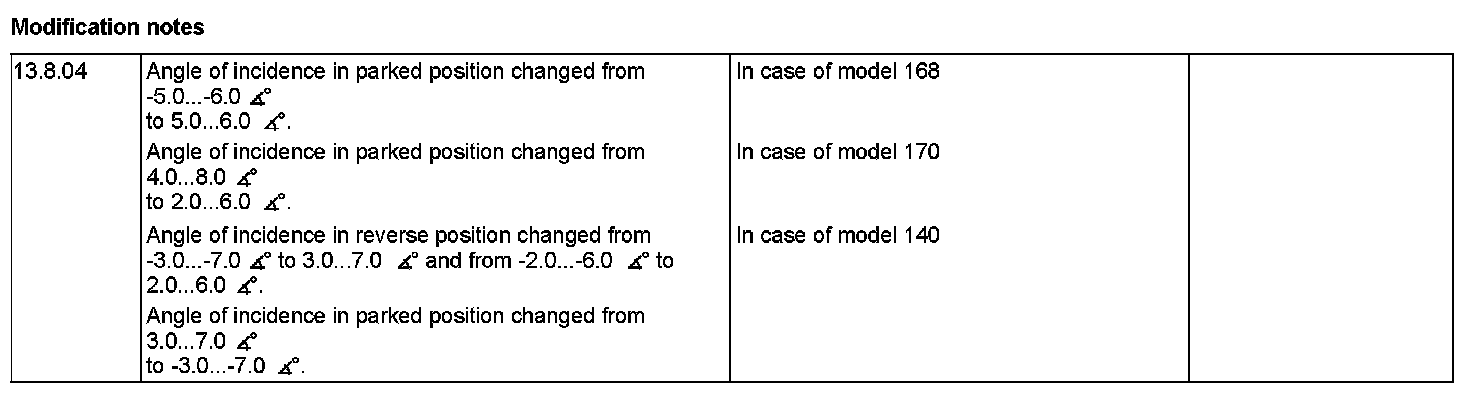

Modification Notes:

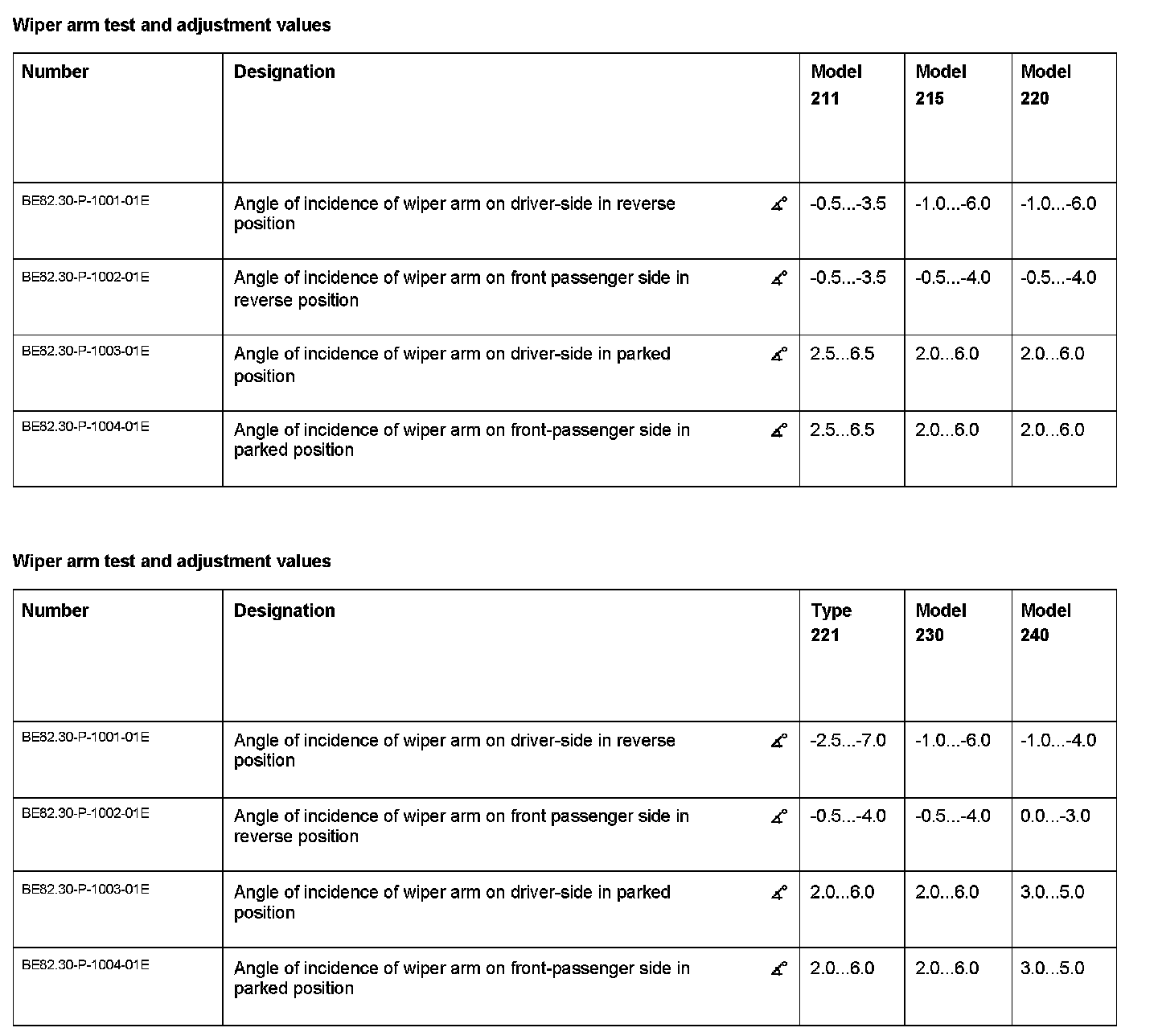

Wiper Arm Test And Adjustment Values:




Wiper Arm Test And Adjustment Values:
