Grille: Service and Repair

AR88.40-P-4001R Remove/Install Radiator Grille







DANGER:
- Risk of injury to fingers being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.
- When moving components, ensure that no body parts or limbs are within the operating range of moving parts.

1 Open engine hood

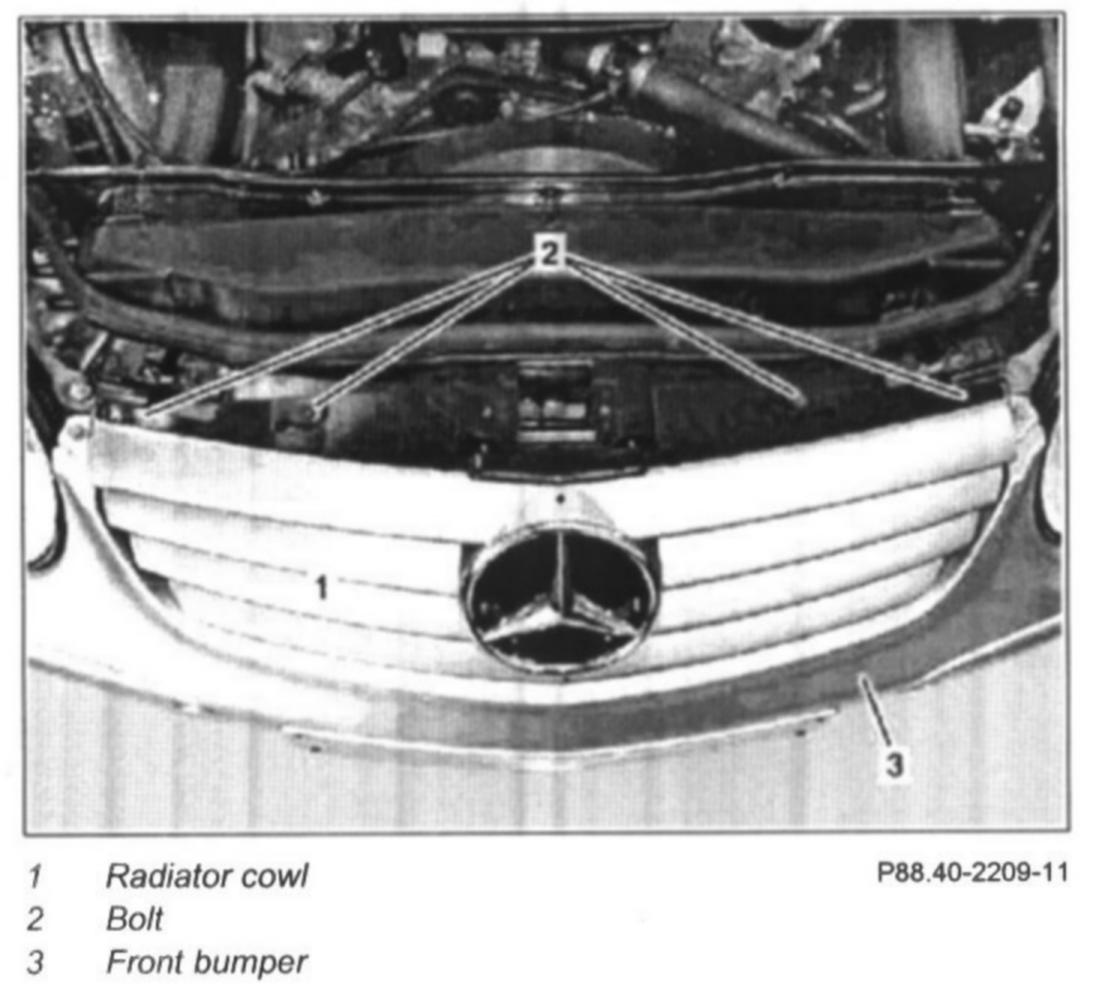

2 Unscrew bolt (2)
3 Tilt radiator paneling (1) toward front and take out of front bumper (3).

NOTE: Installation: First of all insert radiator paneling (1) into front bumper (3).

4 Install in the reverse order
