Oil Filter Housing
Oil Filter Housing

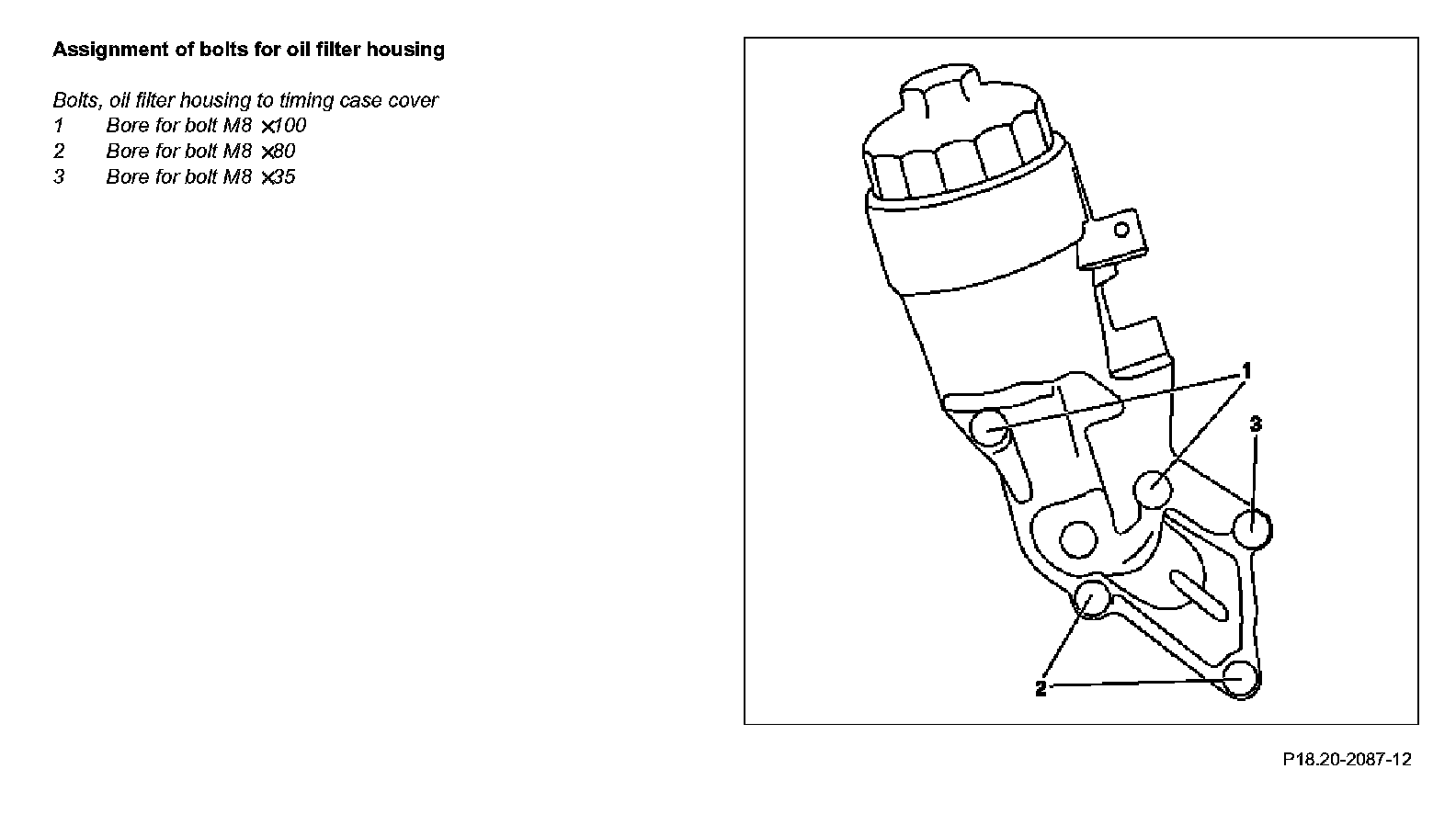

AR18.20-P-3471-01AMG Bolt plan for
oil filter housing
Oil filter:
Assignment of bolts for oil filter housing:
