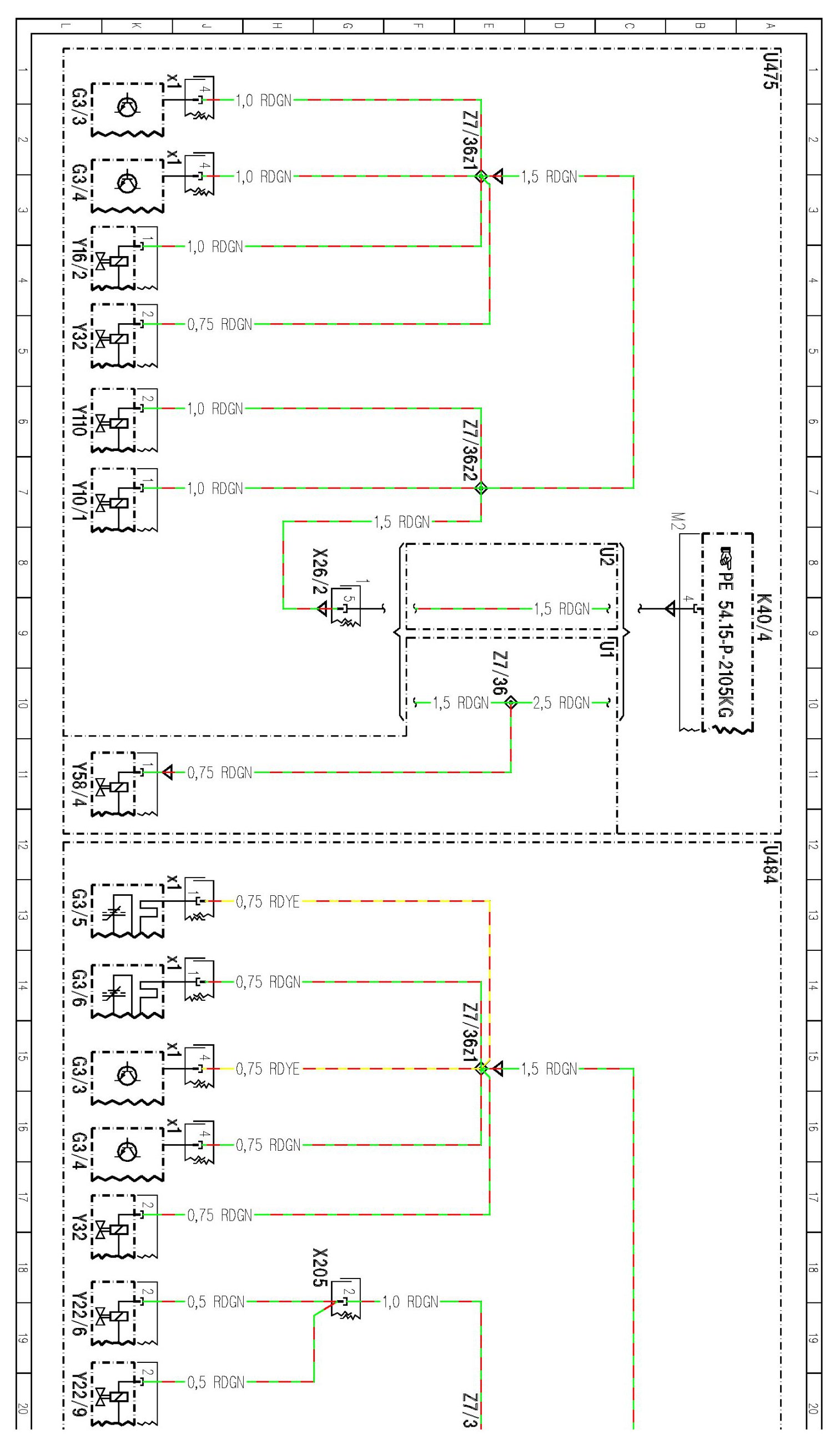

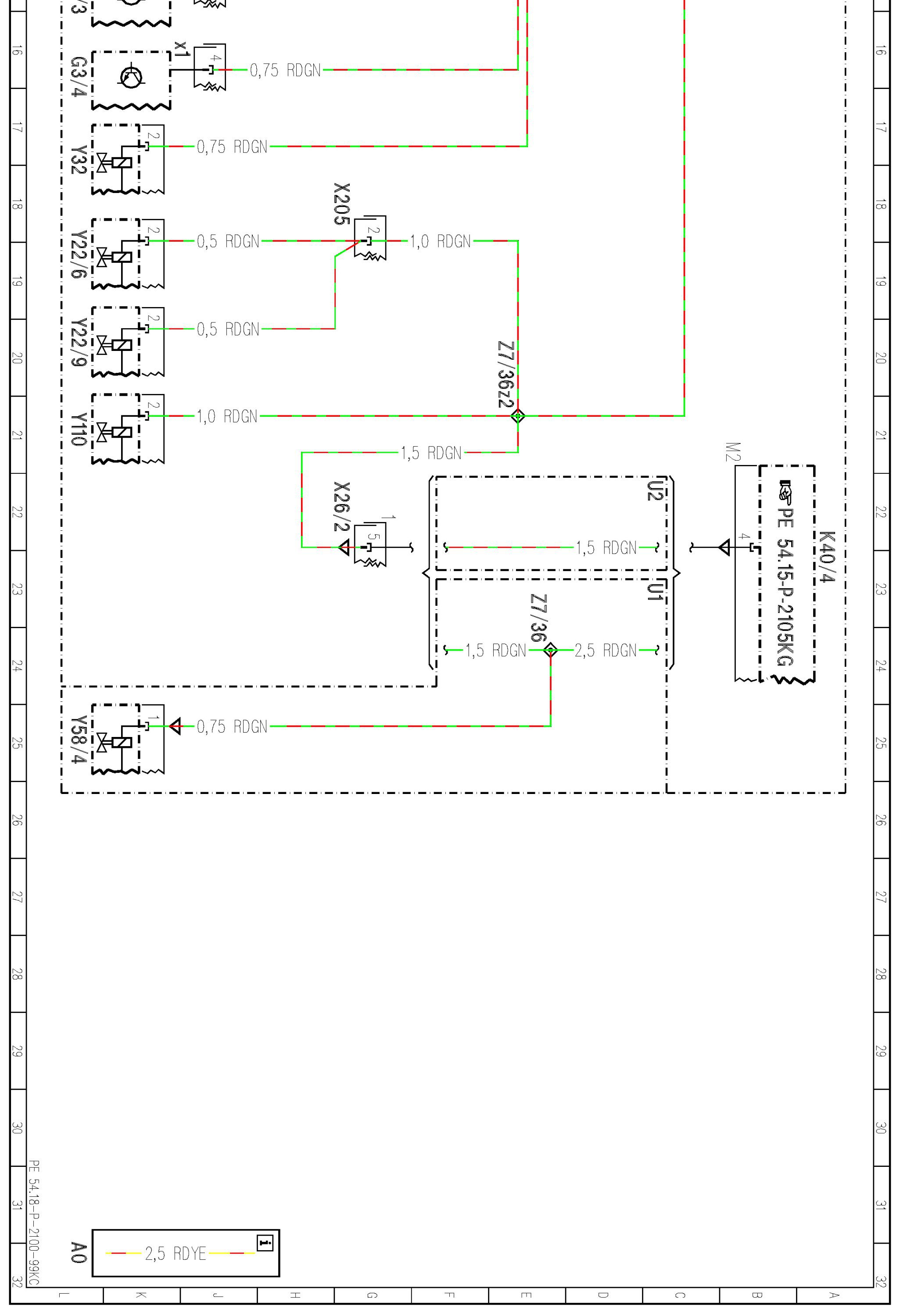

PE54.18-P-2100KC Voltage Distributor, Wiring Diagram

PE54.18-P-2100KC Voltage Distributor, Wiring Diagram

Model 230
- as of model year 2009 /YoM 08 model refinement package

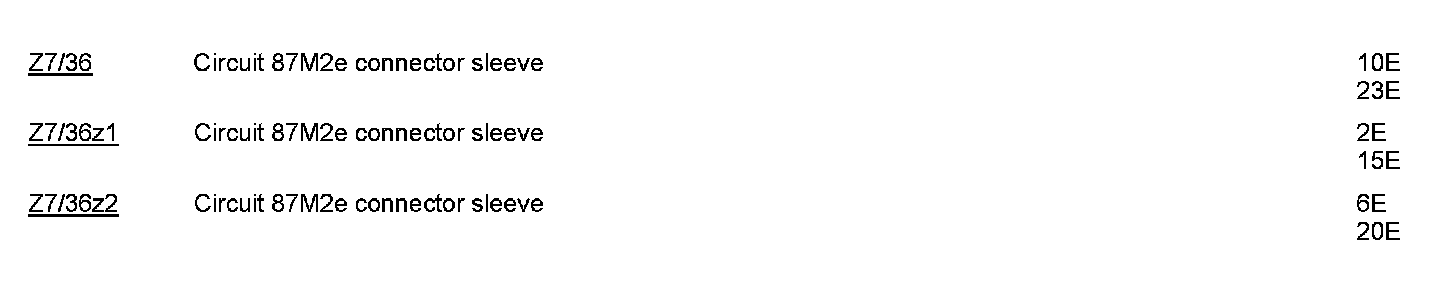

- Z7/36, Z7/36z1, Z7/36z2, Sheet 3


















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
