Grille: Service and Repair

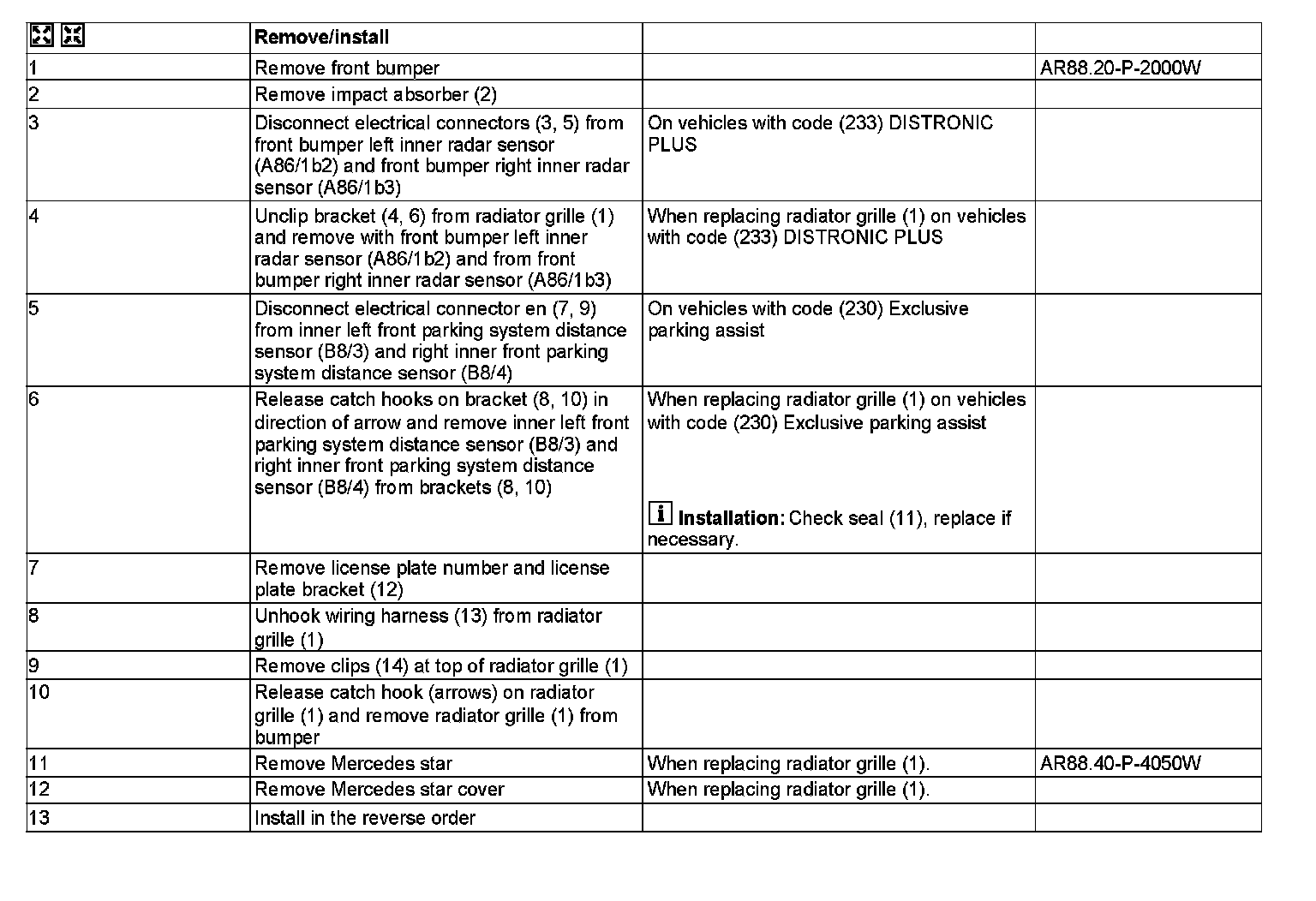

AR88.40-P-4001W Remove/Install Radiator Grille
MODEL 172.4





Shown with code (230) Exclusive parking assist and code (233) DISTRONIC PLUS

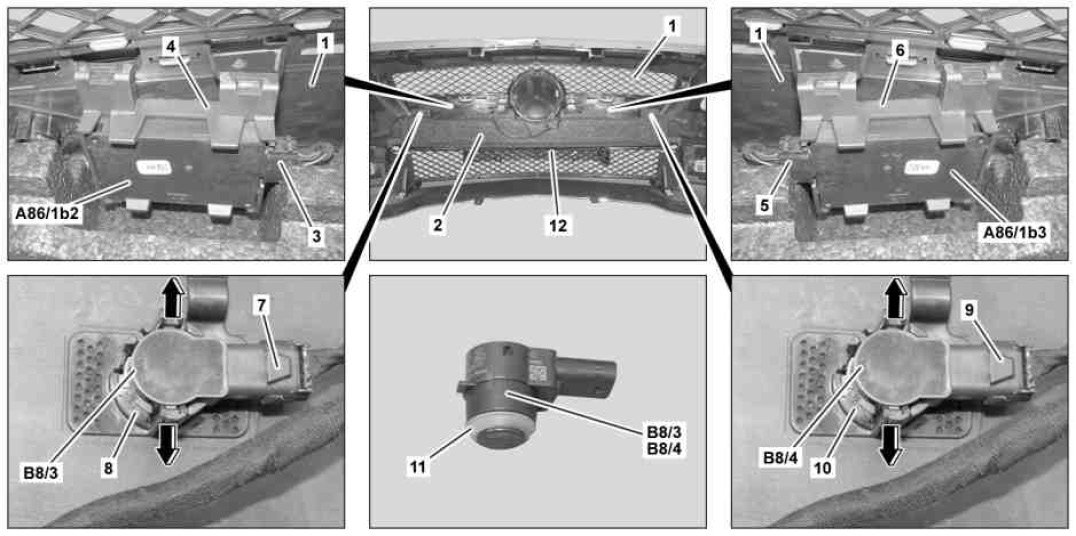

1 Radiator grille
2 Impact absorber
3 Electrical connector (with code (233) DISTRONIC PLUS)
4 Bracket (with code (233) DISTRONIC PLUS)
5 Electrical connector (with code (233) DISTRONIC PLUS)
6 Bracket (with code (233) DISTRONIC PLUS)
7 Electrical connector (with code (230) Exclusive parking assist)
8 Bracket (with code (230) Exclusive parking assist)
9 Electrical connector (with code (230) Exclusive parking assist)
10 Bracket (with code (230) Exclusive parking assist)
11 Seal (with code (230) Exclusive parking assist)
12 License plate bracket

A86/1b2 Front bumper inner left radar sensor (with code (233) DISTRONIC PLUS)
A86/1b3 Front bumper inner right radar sensor (with code (233) DISTRONIC PLUS)
B8/3 Left inner front parking system distance sensor (with code (230) Exclusive parking assist)
B8/4 Right inner front parking system distance sensor (with code (230) Exclusive parking assist)

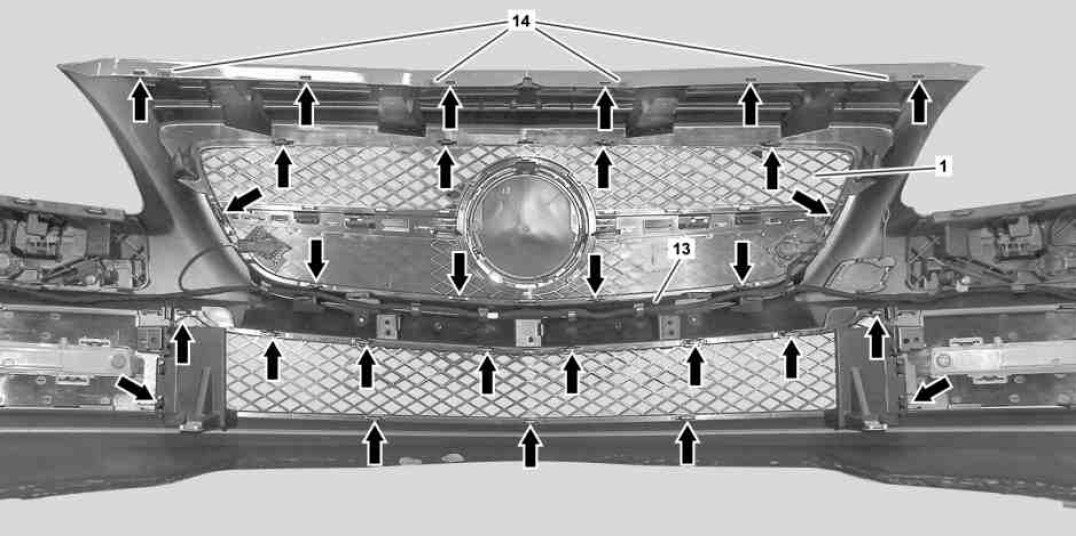

1 Radiator grille
13 Wiring harness
