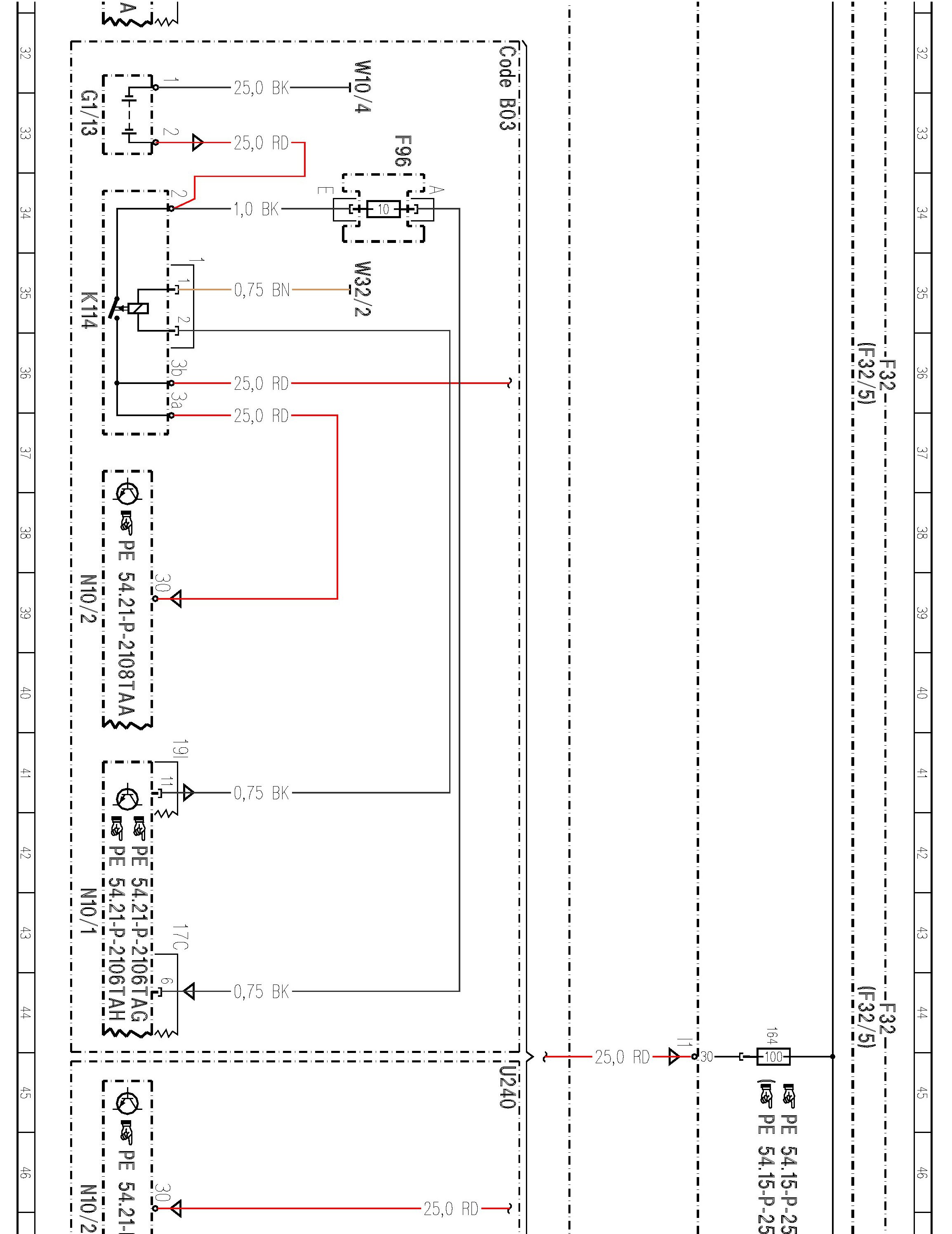

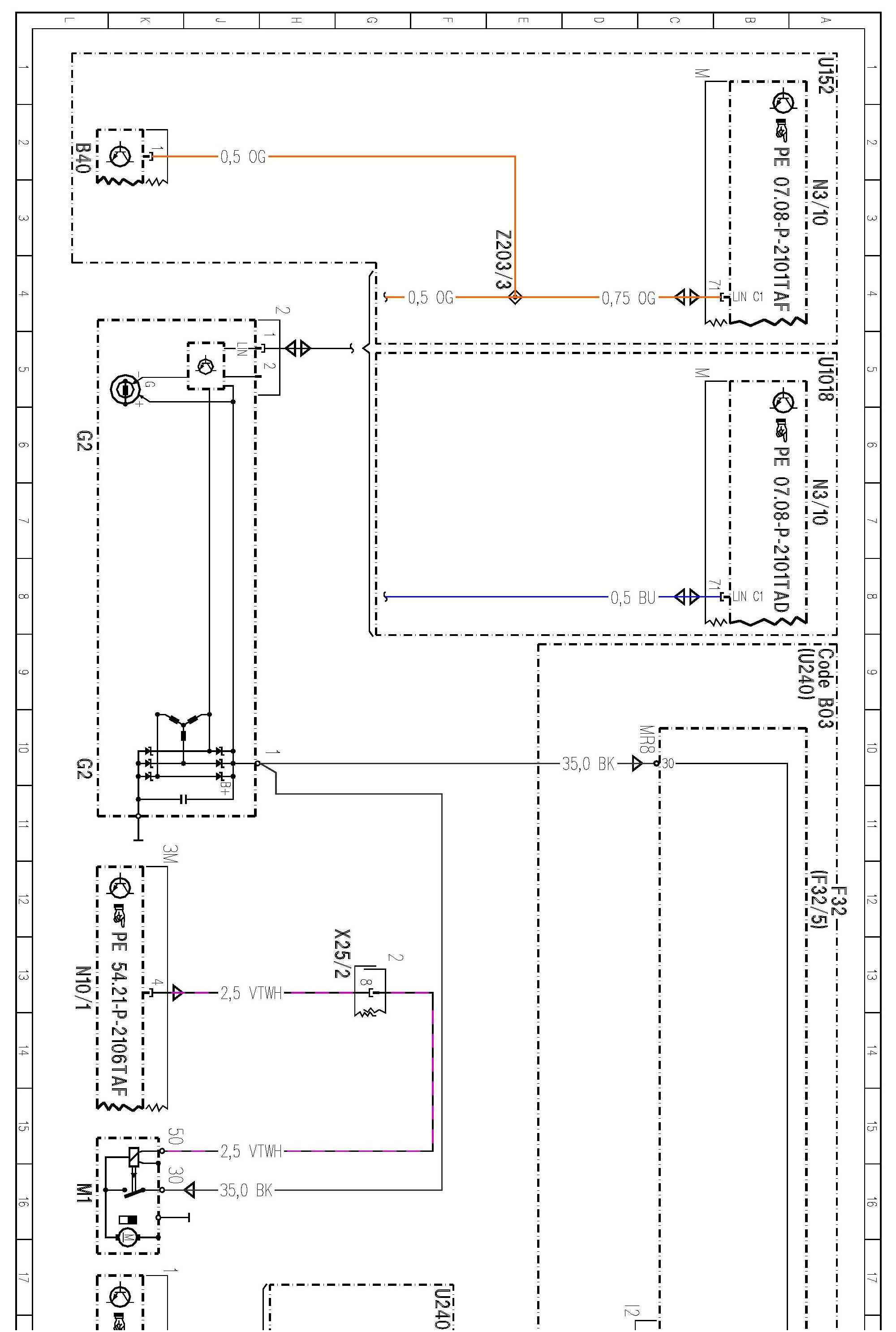

Starting and Charging: Diagrams

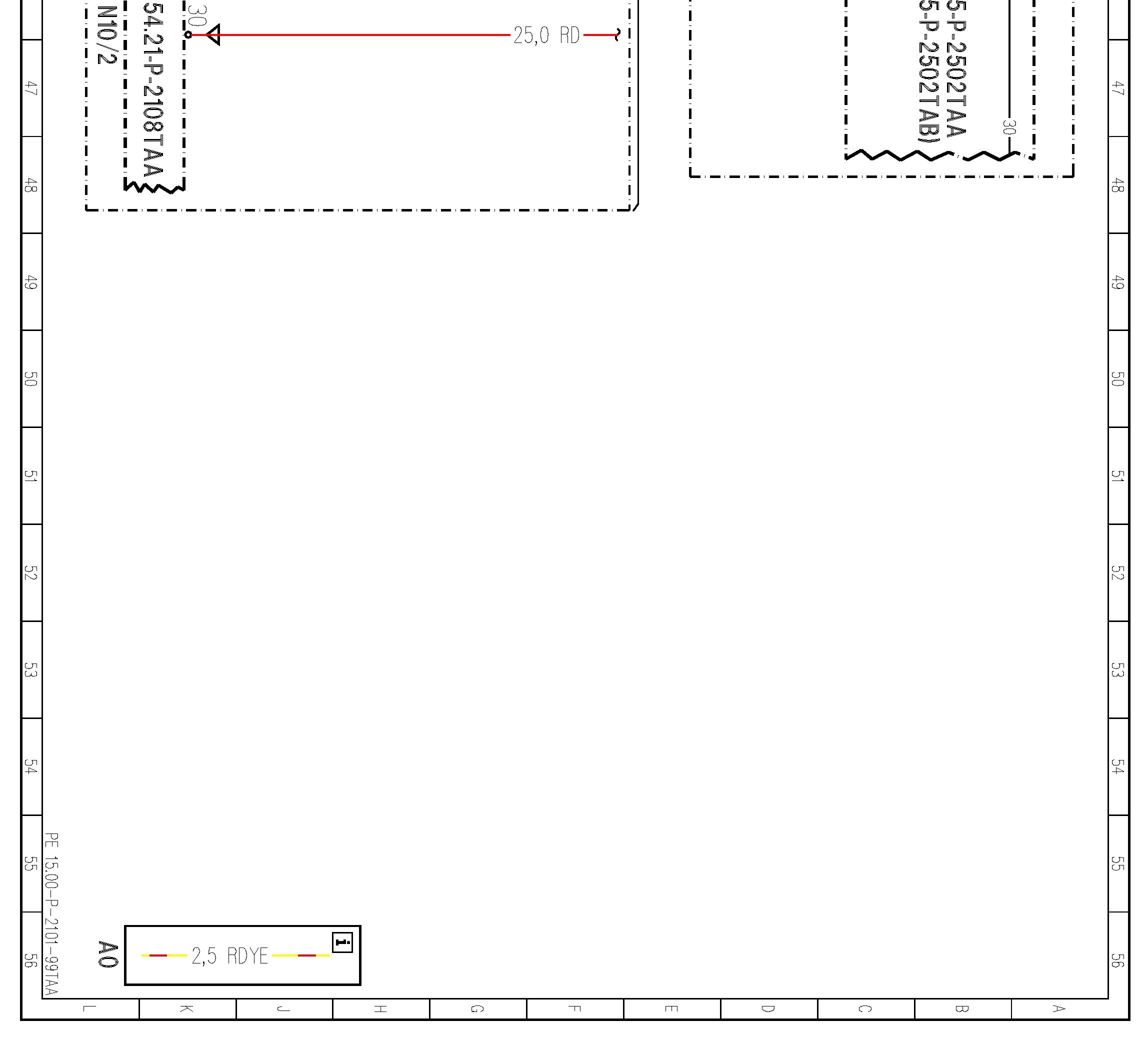

PE15.00-P-2101TAA Starter, Alternator, Battery

ENGINE 276.9, 152.980 in MODEL 172.4


































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
