Cooling System: Testing and Inspection

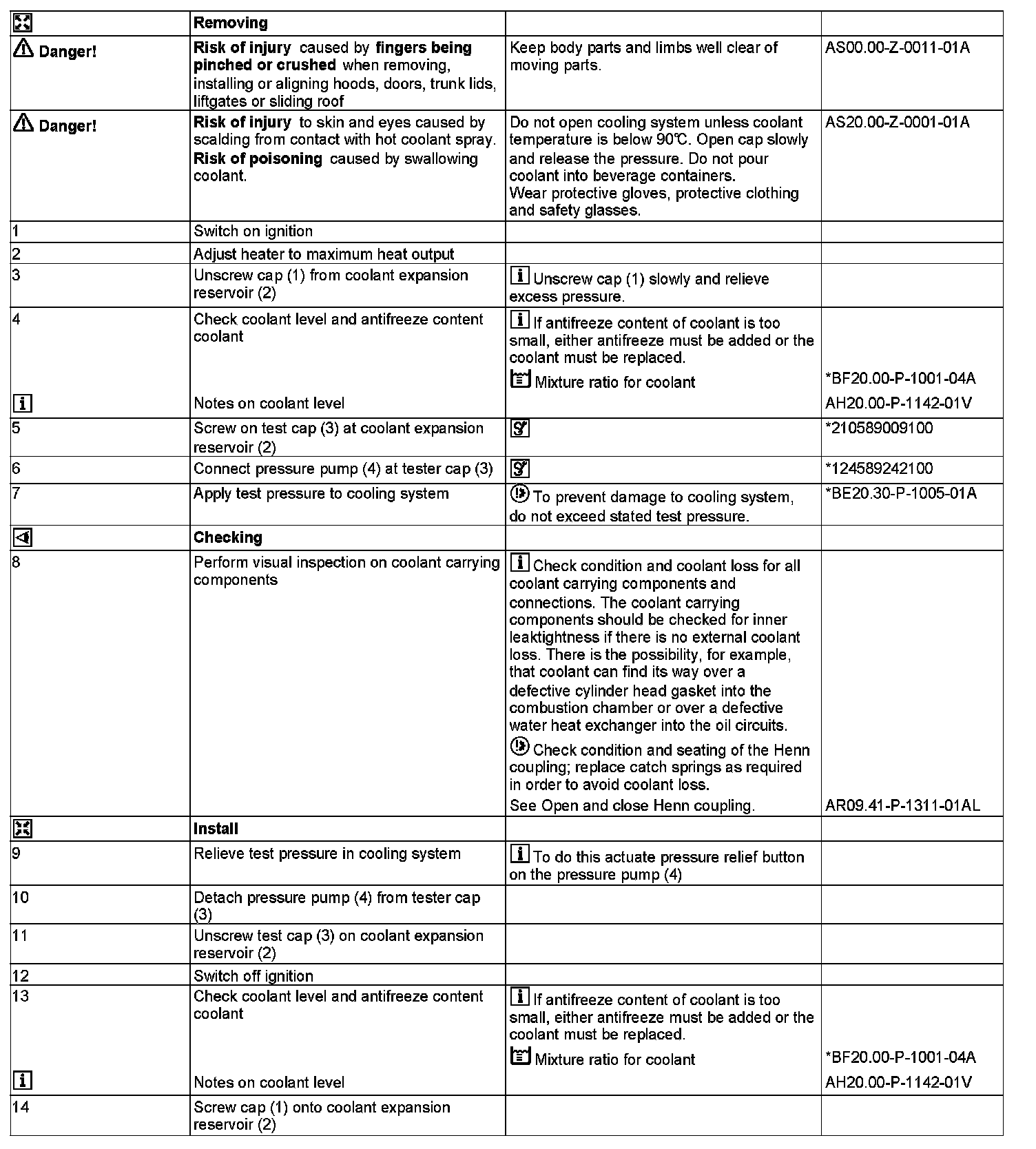

AR20.00-P-1010W Inspect Cooling System For Leaks
ENGINES 152, 276 in MODEL 172





Shown on engine 276

1 Cap
2 Coolant expansion reservoir
3 Tester cap
4 Pressure pump














210 589 00 91 00
Test cap





124 589 24 21 00
Pressure pump
