Control Assembly: Service and Repair

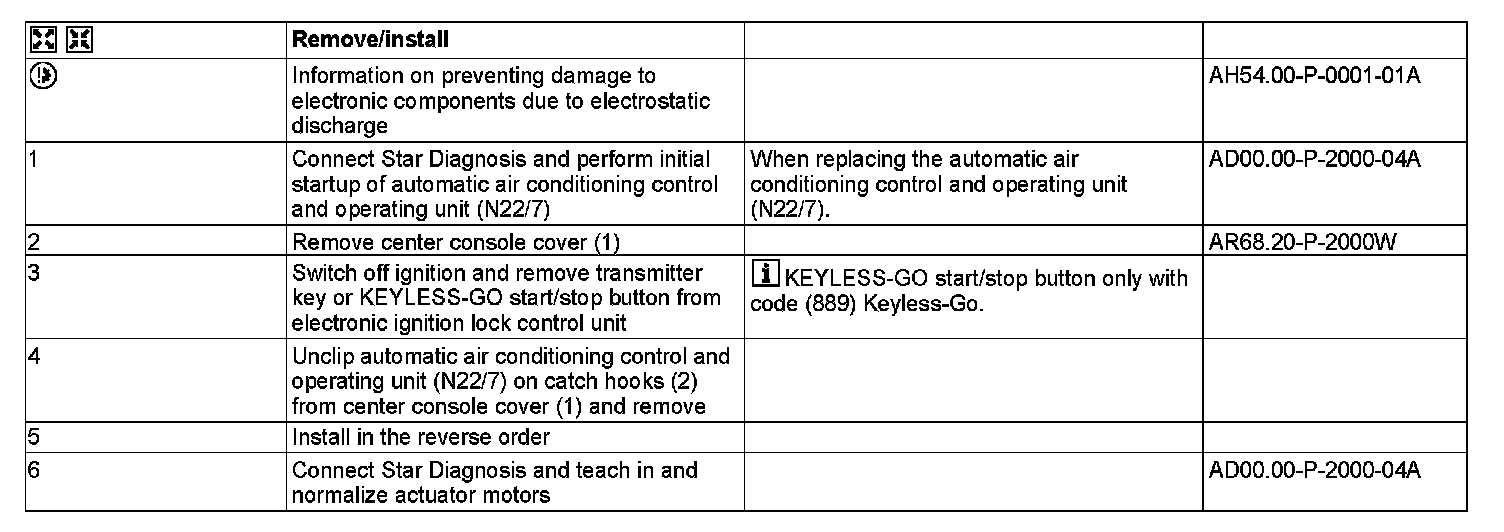

AR83.40-P-6350W Remove/Install Control and Operating Unit
MODEL 172.4





Shown on (code (581) Comfort automatic air conditioning
1 Center console cover
2 Catch hook
N22/7 Automatic air conditioning control and operating unit
