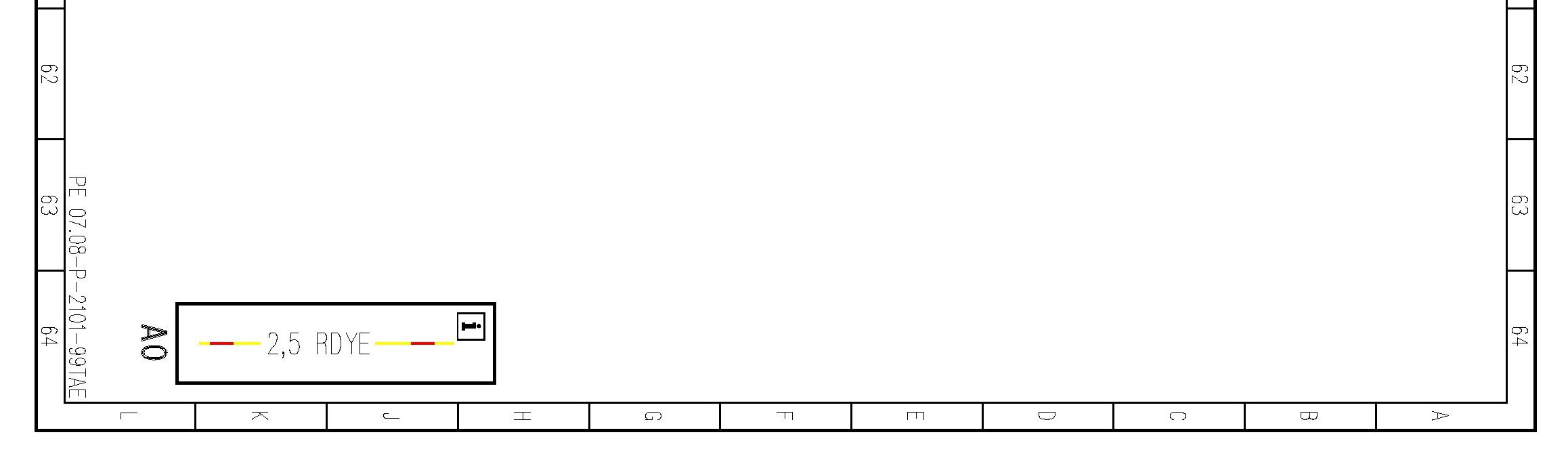

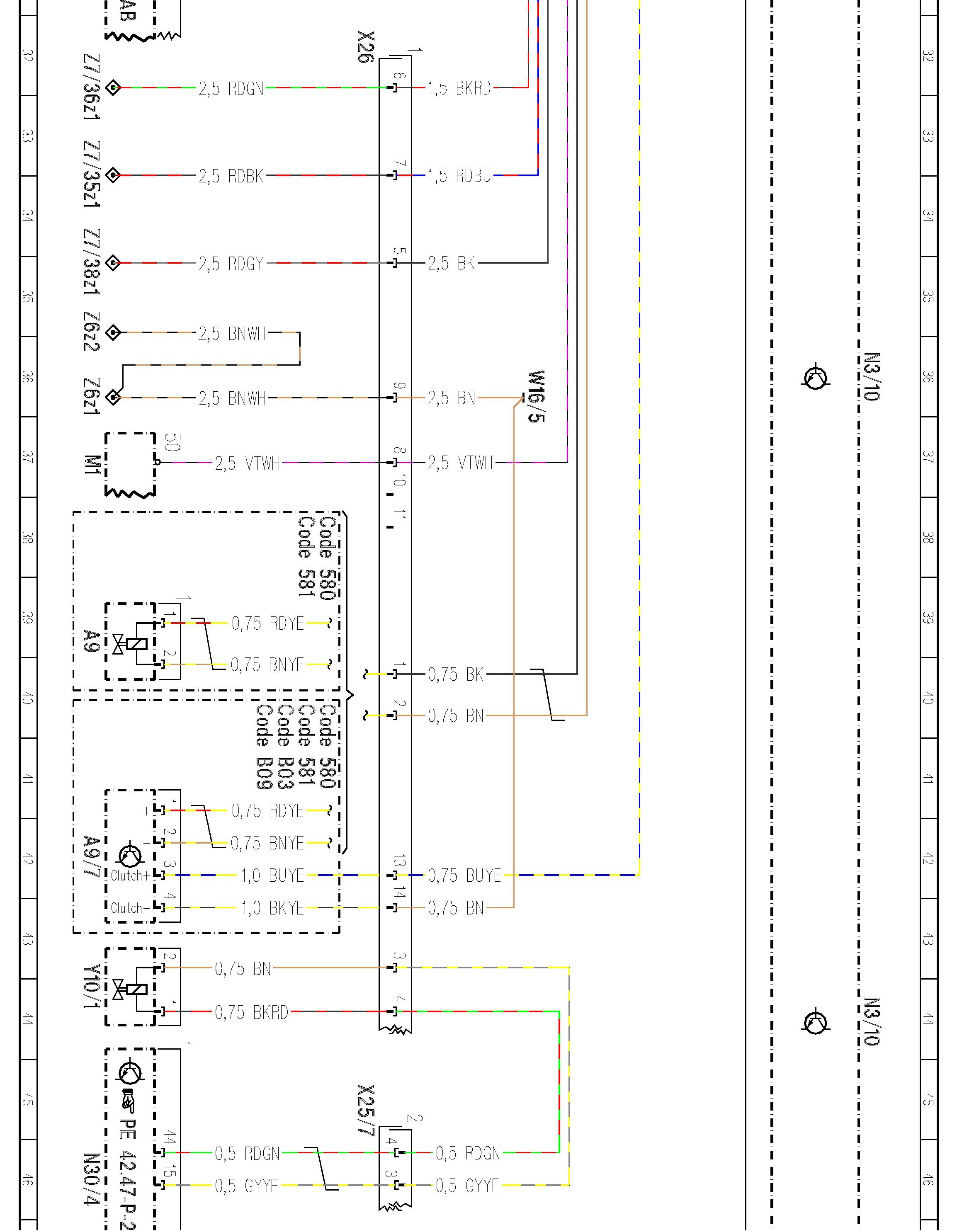

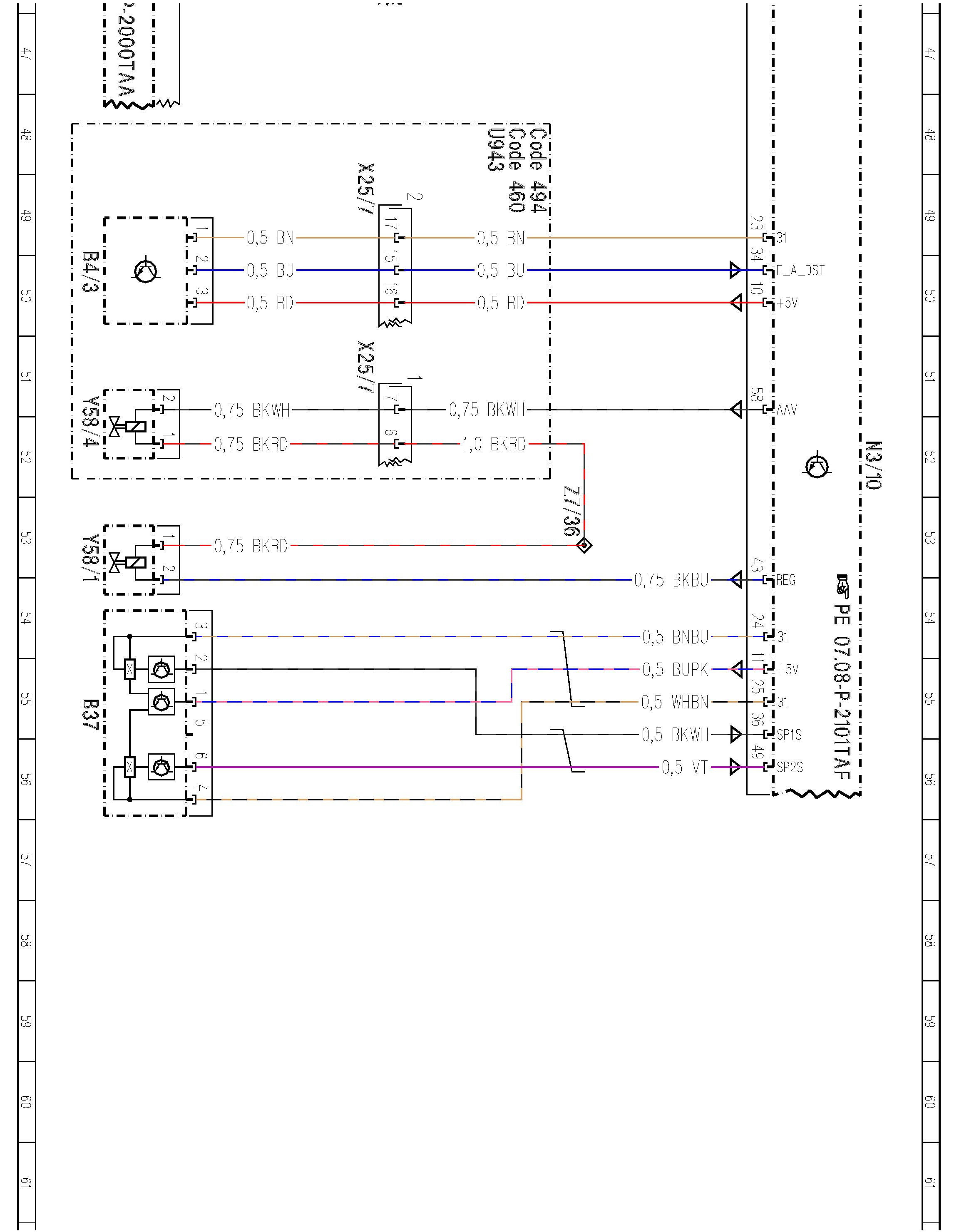

PE07.08-P-2101TAE Gasoline Direct Injection System Control Unit

PE07.08-P-2101TAE Gasoline Direct Injection System Control Unit

ENGINE 152.980 in model 172.475
as of 06/01/12
- control unit N3/10, body side






















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
