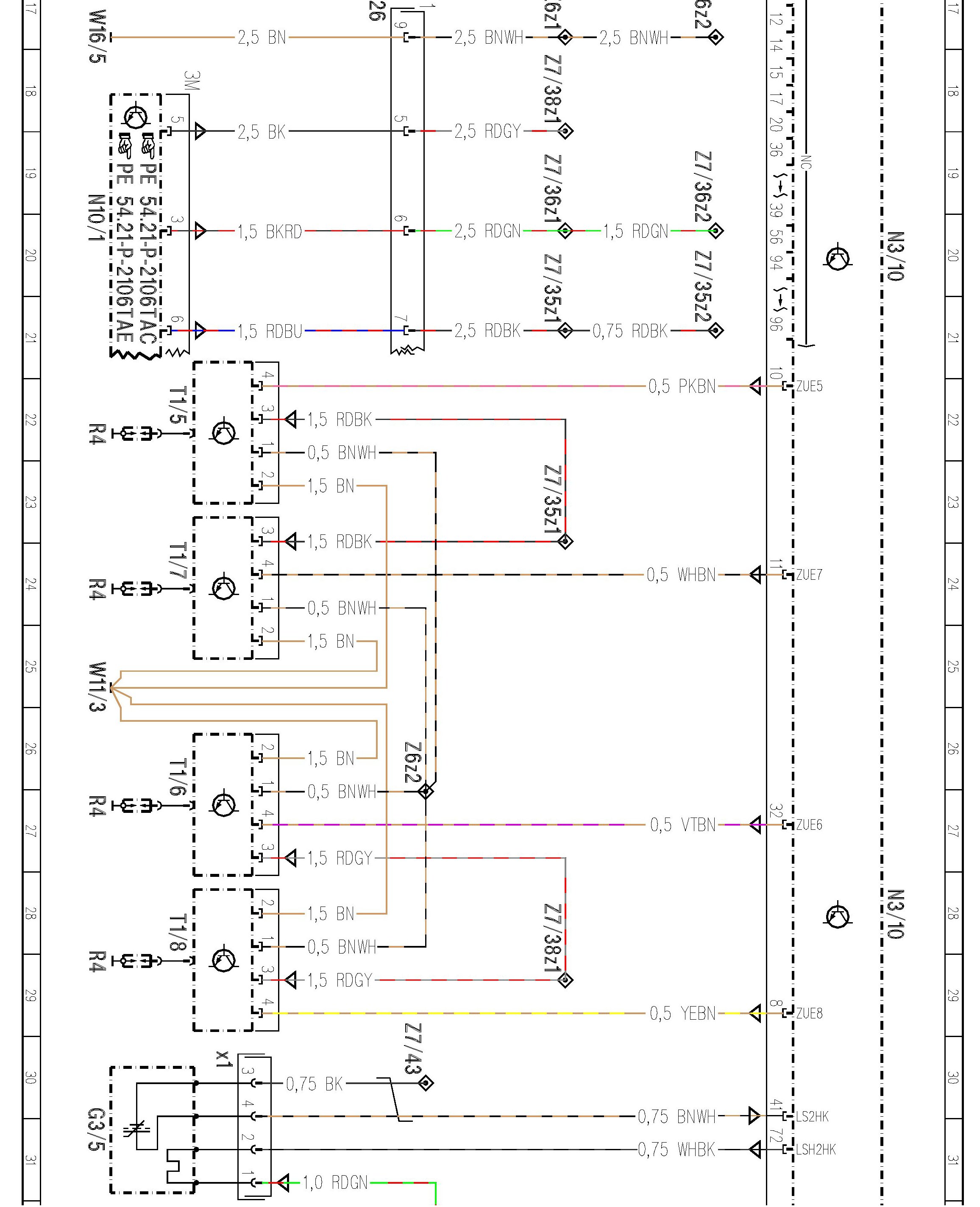

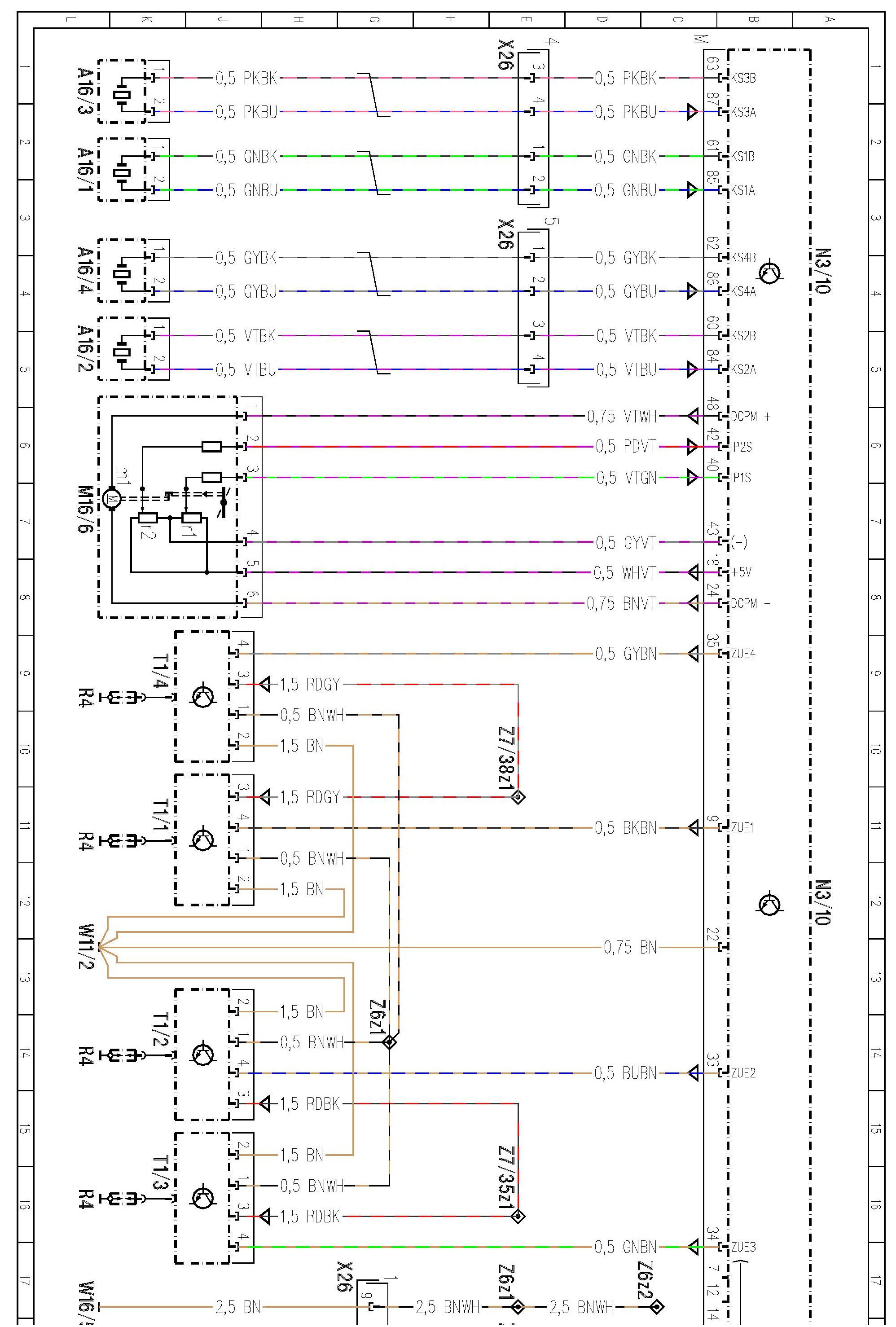

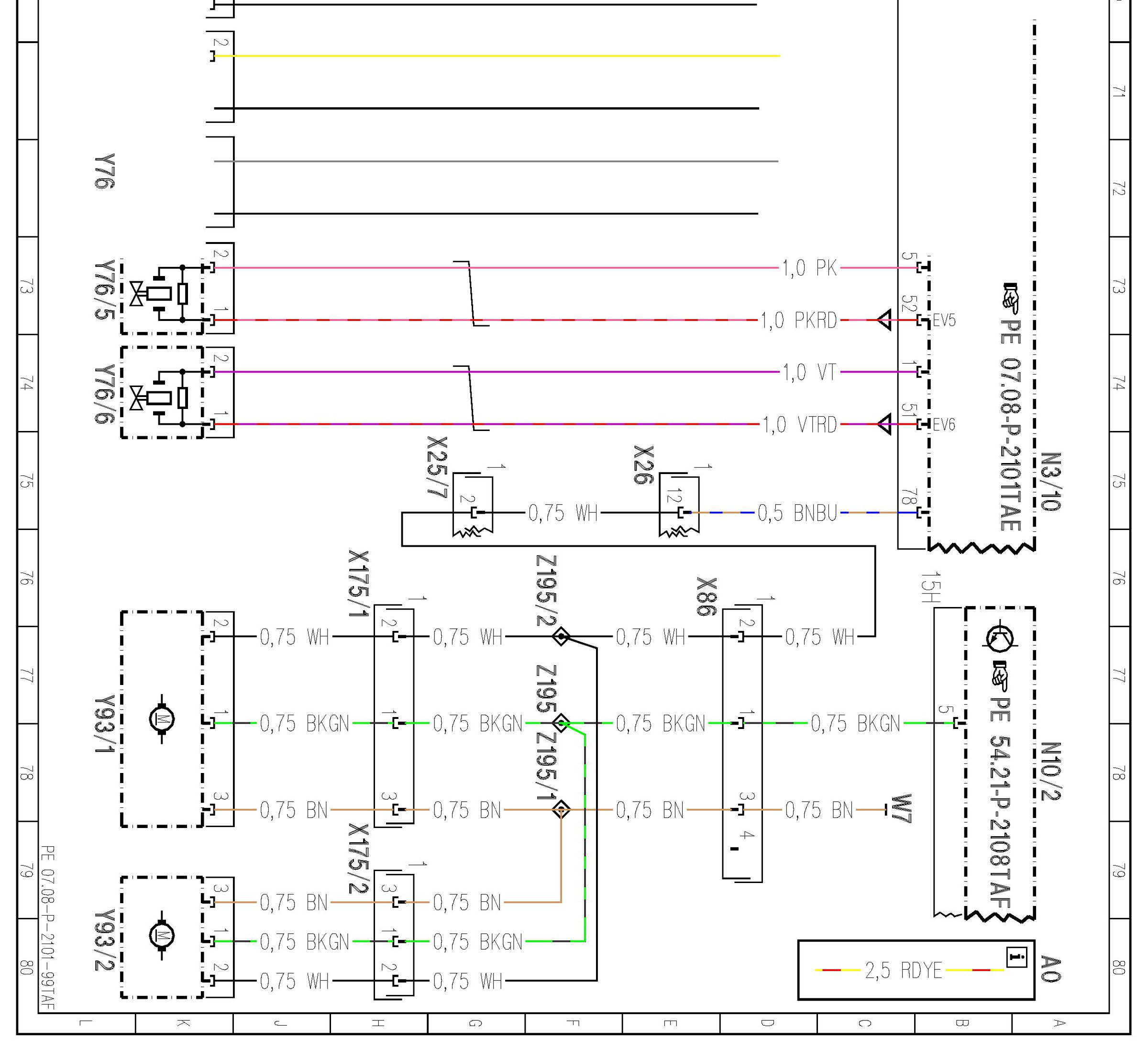

PE07.08-P-2101TAF Gasoline Direct Injection System Control Unit

PE07.08-P-2101TAF Gasoline Direct Injection System Control Unit

ENGINE 152.980
as of 172.475 in MODEL 06/01/12

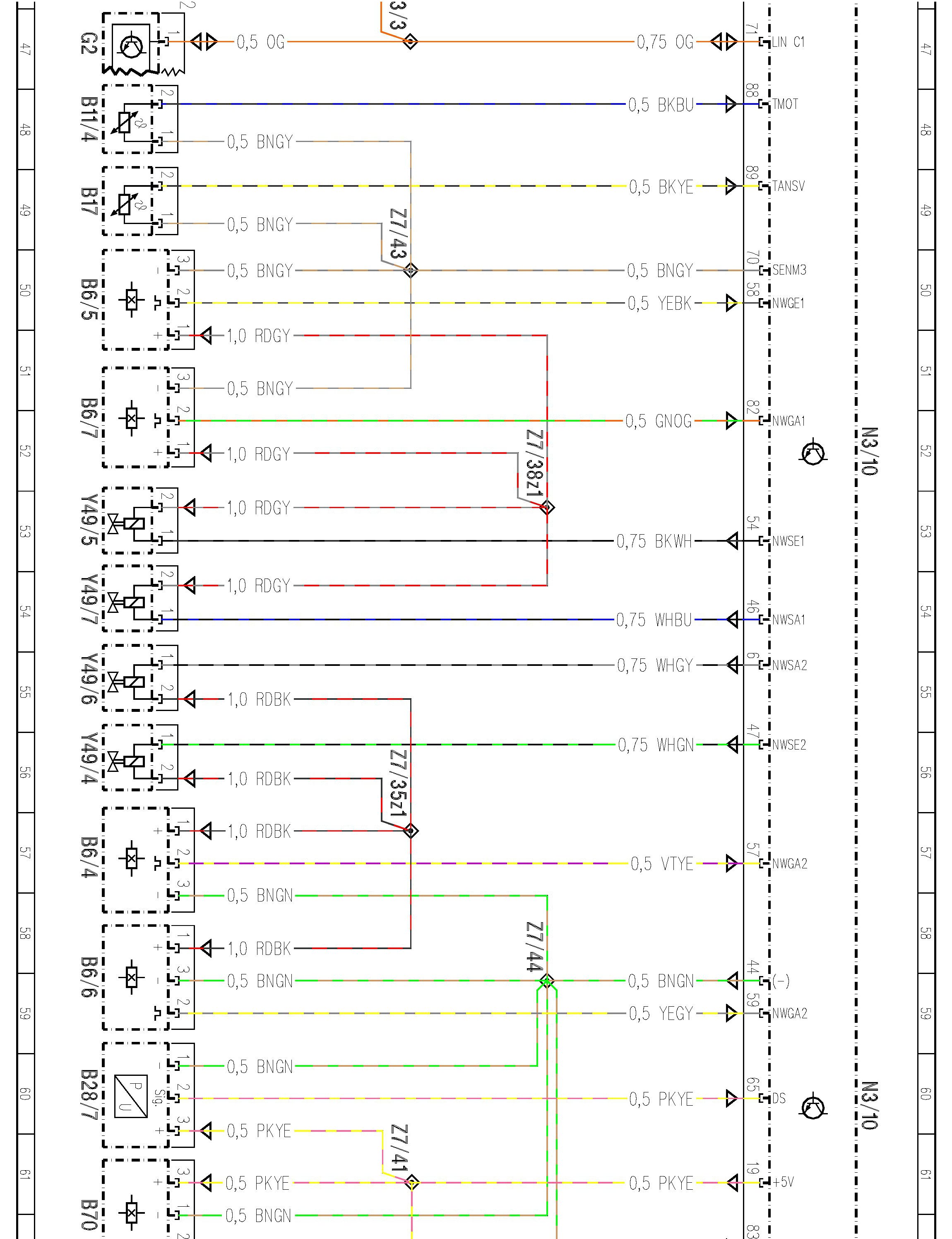

- control unit N3/10, engine side


















































































































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
