Infotainment - AMG Performance Media Menu Items Not Selectable

AMG Performance Media -- Menu items not selectable

Topic number LI82.00-P-054540

Version 1

Design group 82.00 General

Date 09-05-2012

Validity 204.377 with code P98 ("Black Series" special model) and/or code
255 (AMG Performance Media)

Reason for change

Complaint
Menu items of AMG Performance Media are not selectable (grayed out).

Cause
Connections of central operating unit (COU), plugs swapped.

Remedy

1. Remove central operating unit (COU)

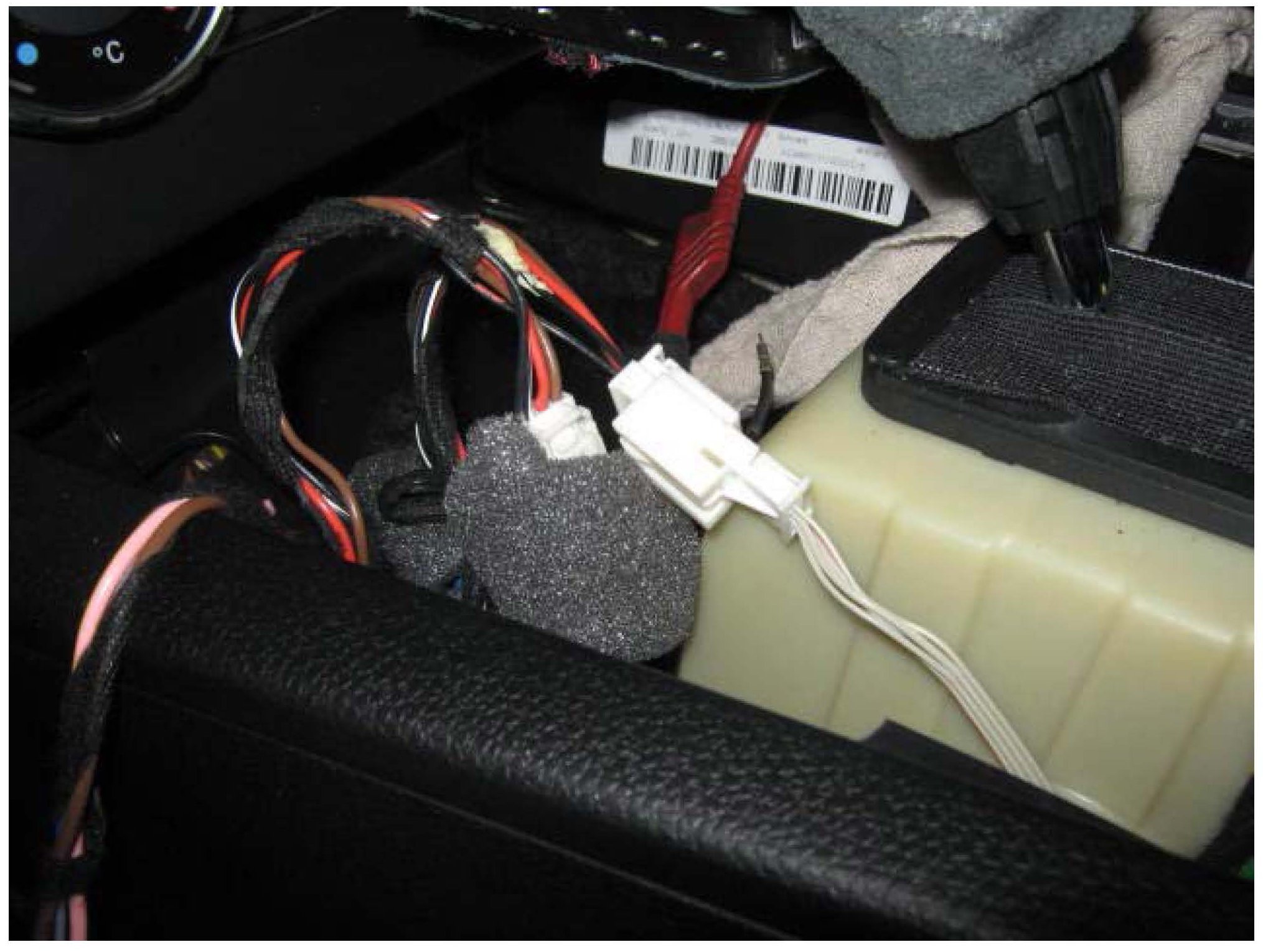

2. Correct the plug connections (see picture in attachment)

3. Install remaining parts

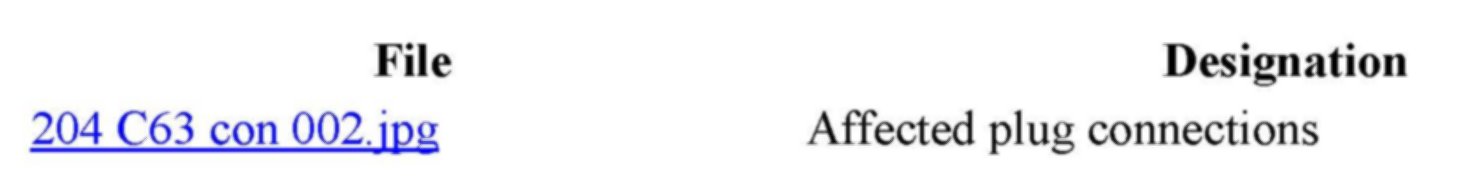

File Designation

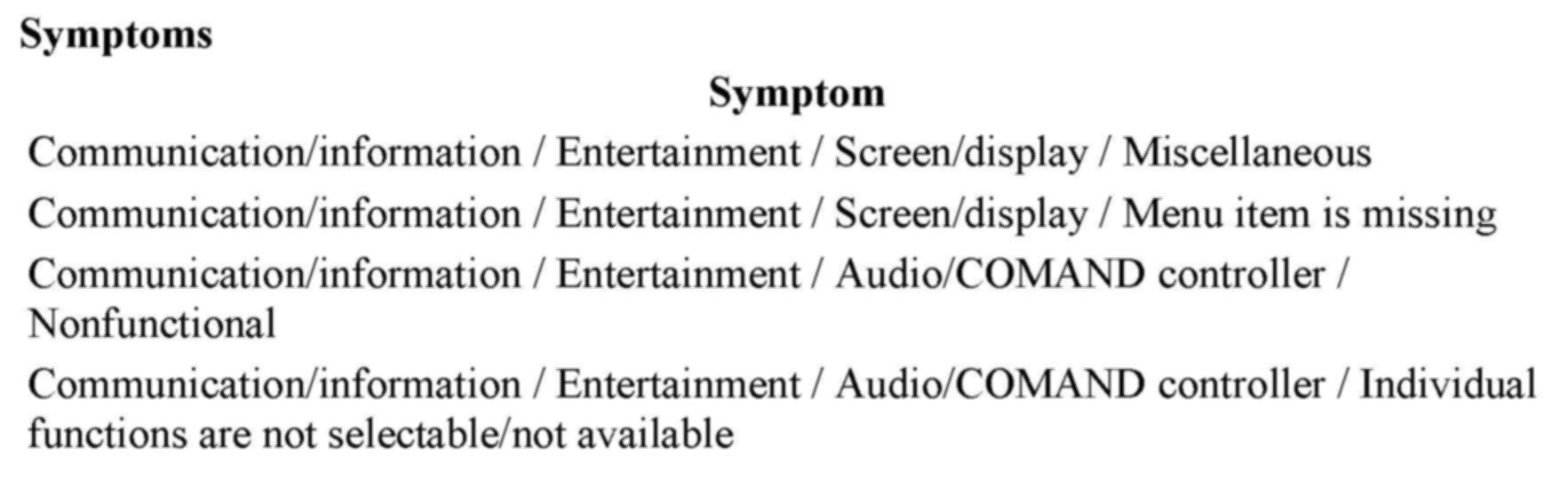

Symptoms

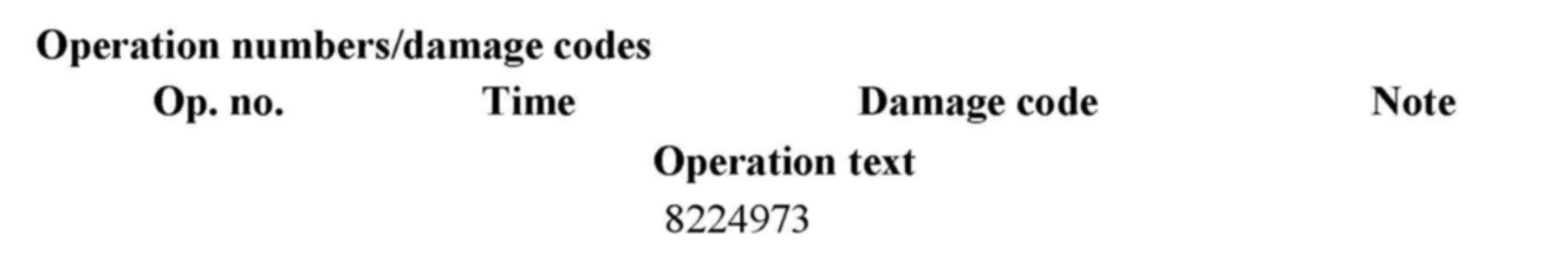

Operation numbers/damage codes
