Brakes - Squeaking Noise When Braking
Model 231, squeaking noises when brakingTopic number LI42.10-P-054801
Version 1
Design group 42.10 Service brake
Date 10-25-2012
Validity MODEL 231.473 without code 950, 951, P88, U28
MODEL 231.457 without code 950, P88
Reason for change
Complaint:
Squeaking noises from the front axle when braking
Cause:
Incorrect positioning of the semicircular cutout in the pad backing plate
Remedy:
Check installation position of brake pads as per P-B-42.10-121 (see reference).

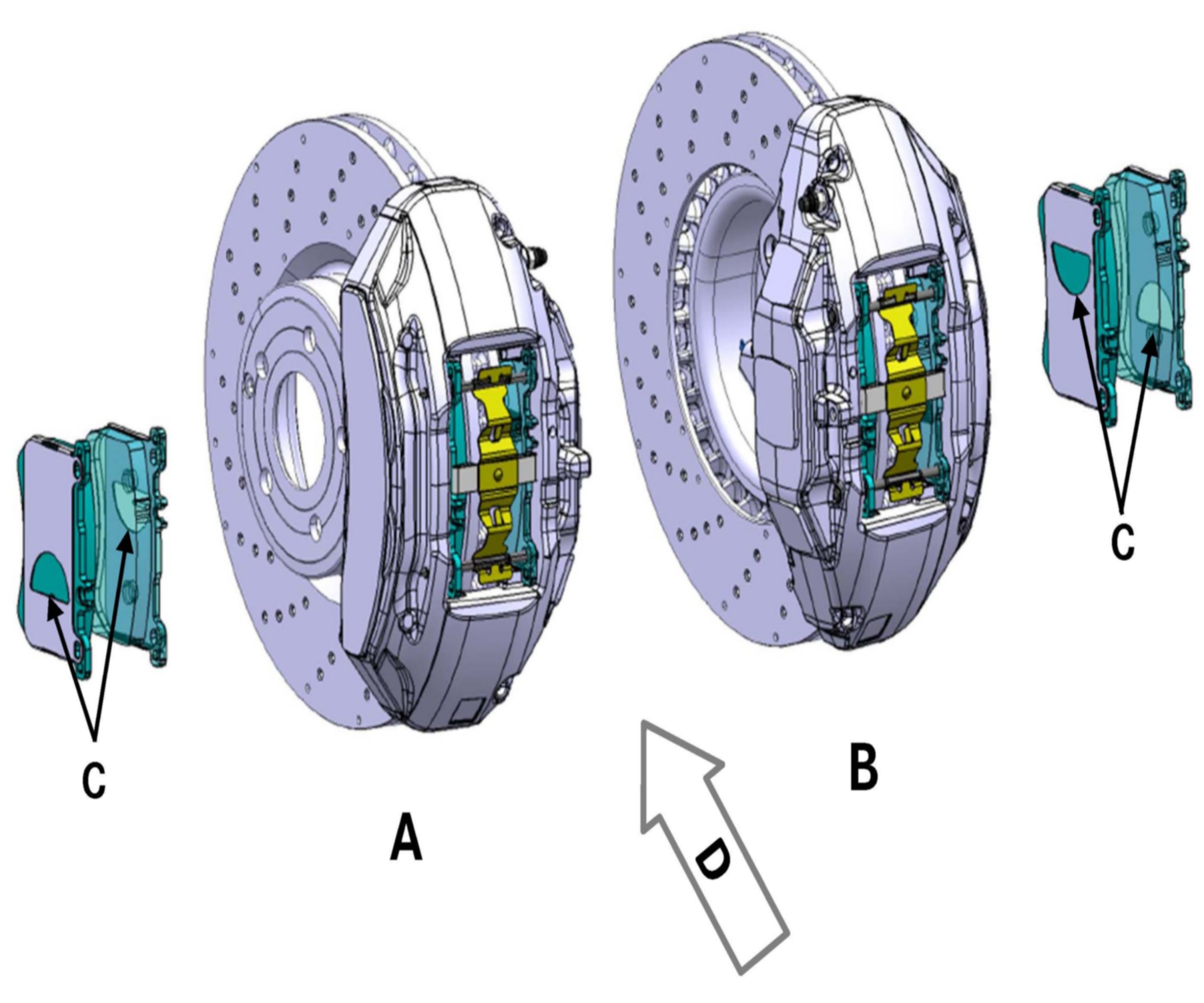

When installing the brake pads, observe the following:
^ The brake pads on the outside of the brake calipers must be installed with the semicircular cutout at the bottom.
^ The brake pads on the inside of the brake calipers must be installed with the semicircular cutout at the top.
If brake pads are found to have been installed incorrectly, proceed as follows:
^ Install new brake pads
^ Mark installation position of old parts and make photographic records
^ Create a TIPS case with the photos of the brake pads and send it to the relevant national organization for processing
Attachments

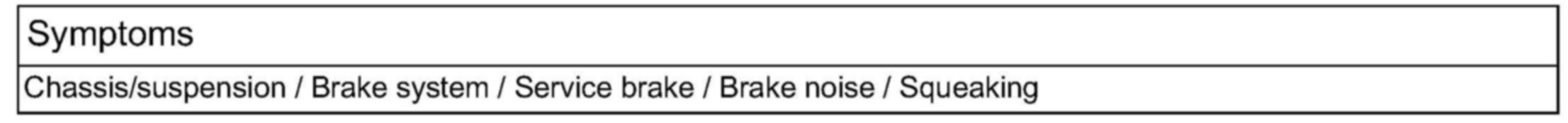

Symptoms

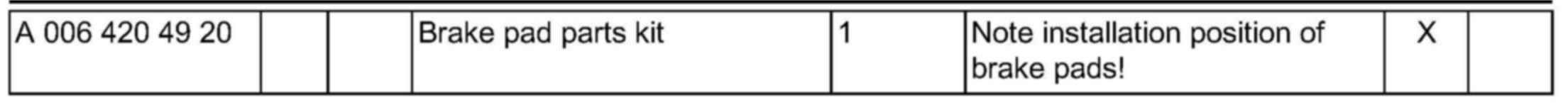

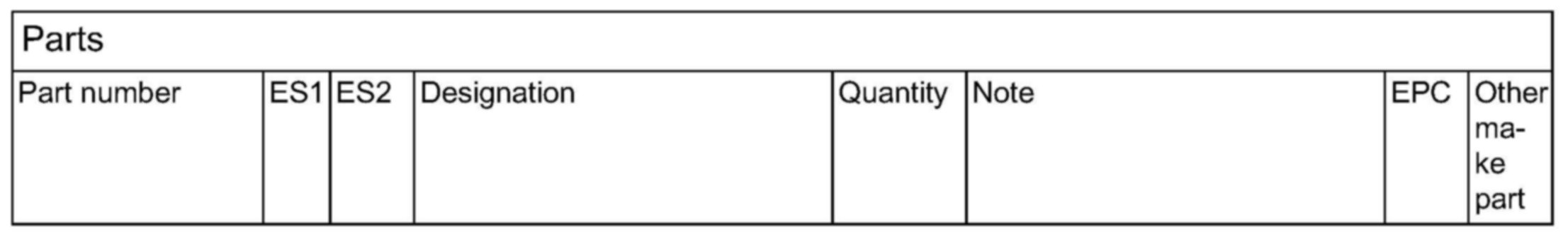

Parts
WIS-References
Attachment
