Body - Paint Flaking Off AMG Seat Badge
Paint flaking off AMG seat badgeTopic number LI91.18-P-054984
Version 1
Design group 91.18 Seat covers
Date 12-21-2012
Validity Model 172.475
Reason for change
Complaint:

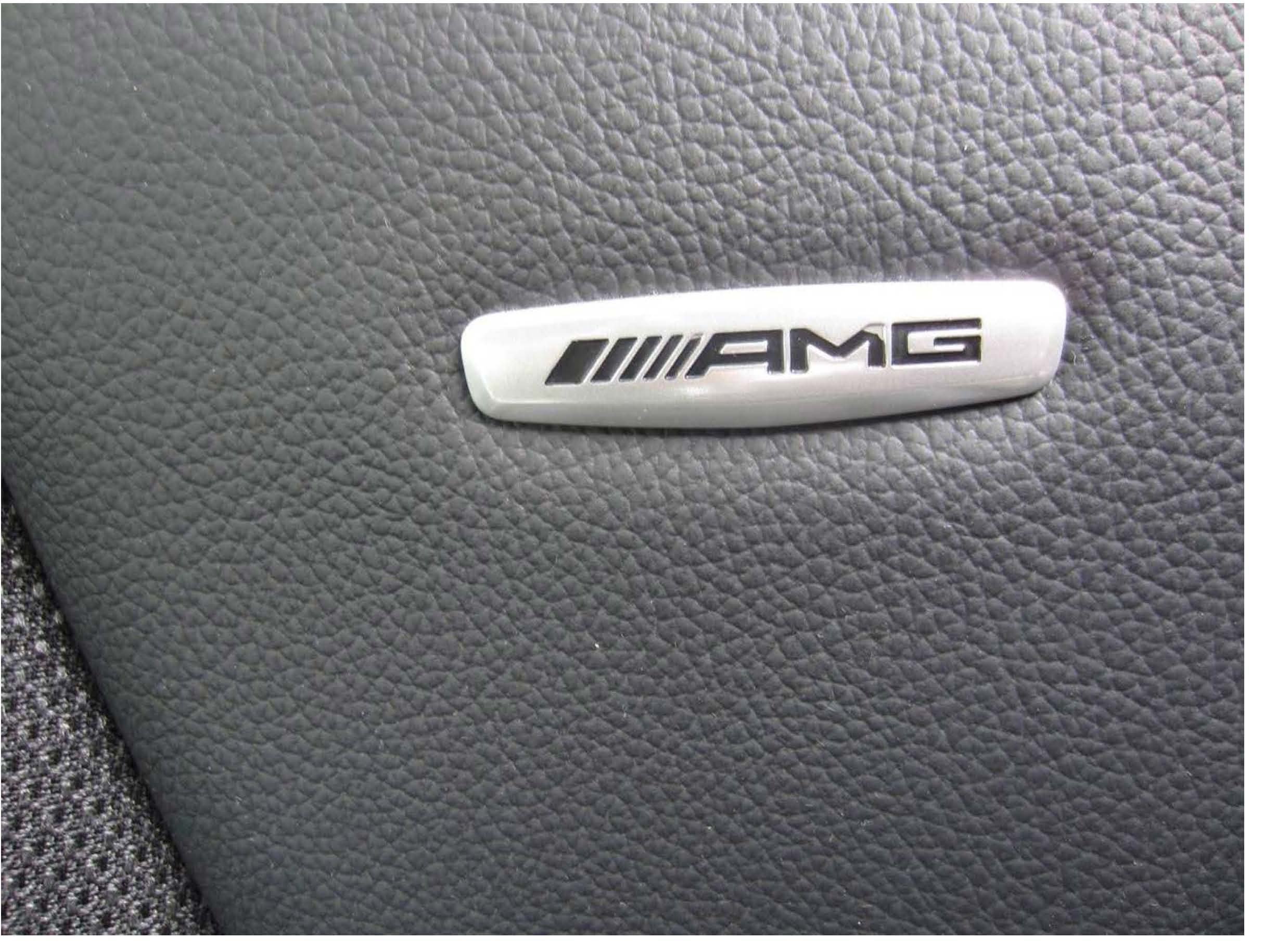

Paint flaking off AMG logo on seat badge.
Attachments
Cause:
Faulty painting process during manufacture.
Remedy:
Please perform the following procedure:
1. Move seat forward

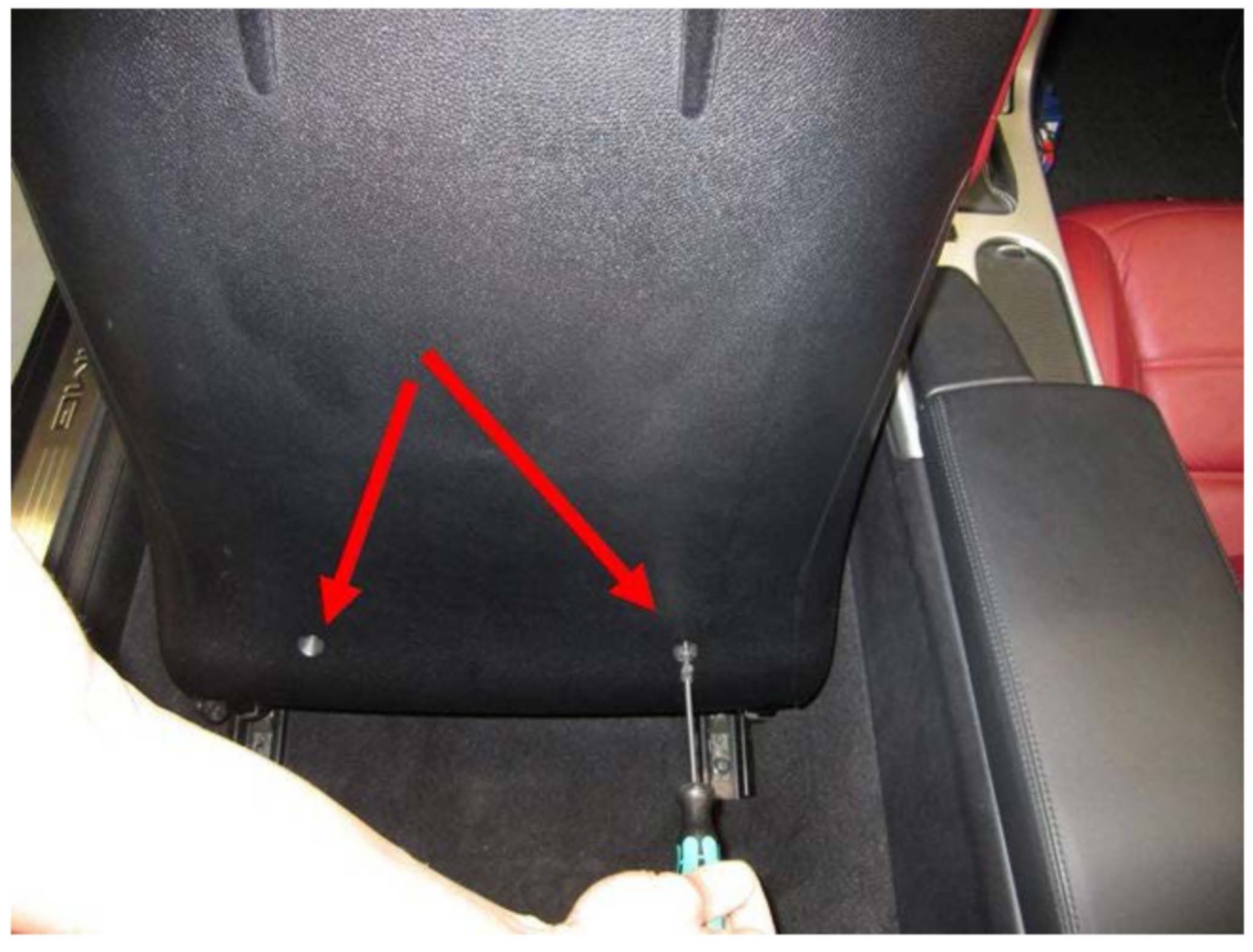

2. Remove both bolts on seat shell (Picture 1)
3. Insert assembly wedge on each side between seat shell and leather cover, and lift off seat shell. Then pull off seat shell downwards.

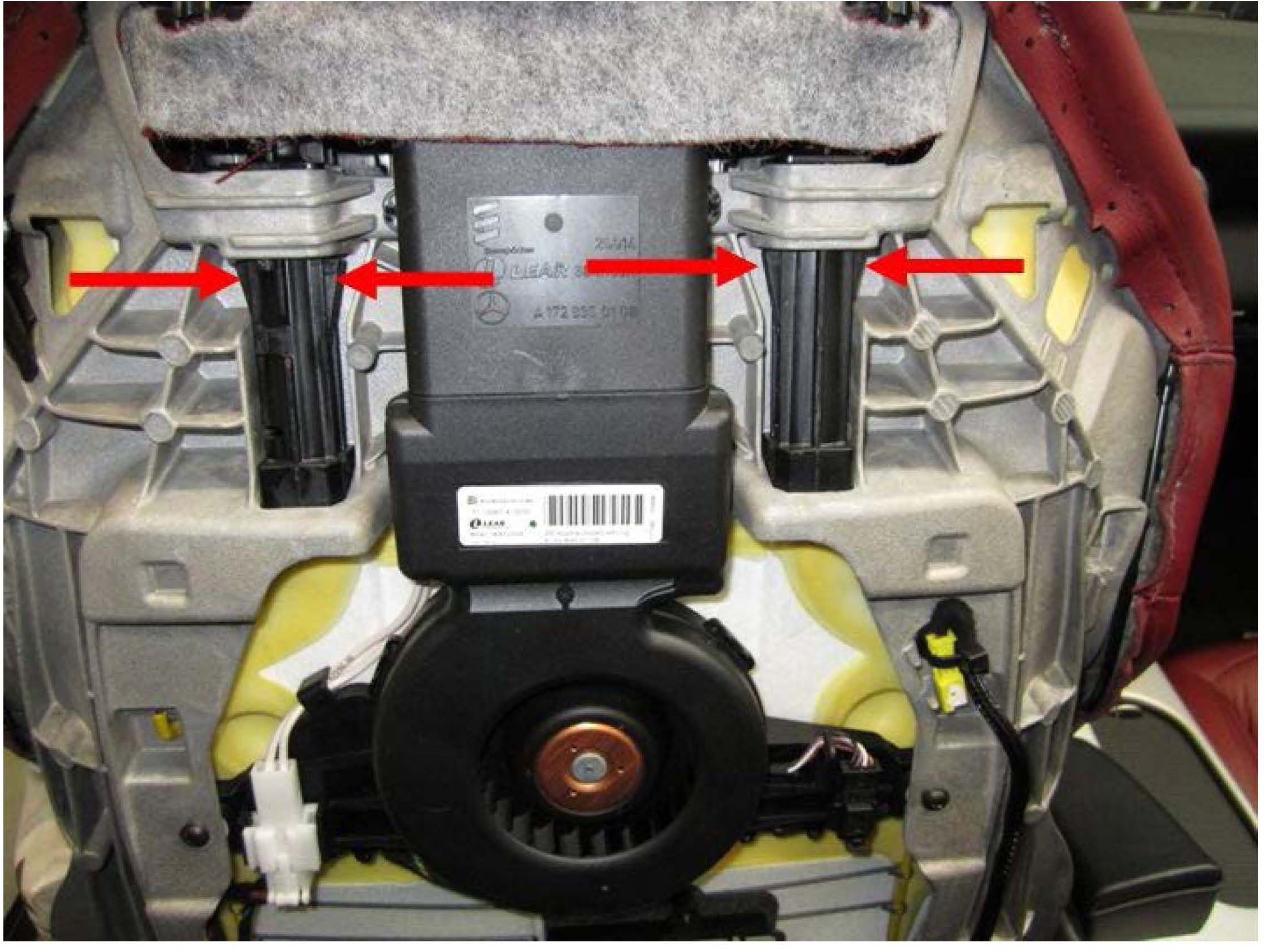

4. Unplug NeckPro and move seat backrest to the rear. Pull off head restraint upwards (press release button, see Picture 2)
5. Press catch on head restraint guide and push upwards (Picture 3)
6. Remove both bolts behind (Picture 4)
7. Lift off cover

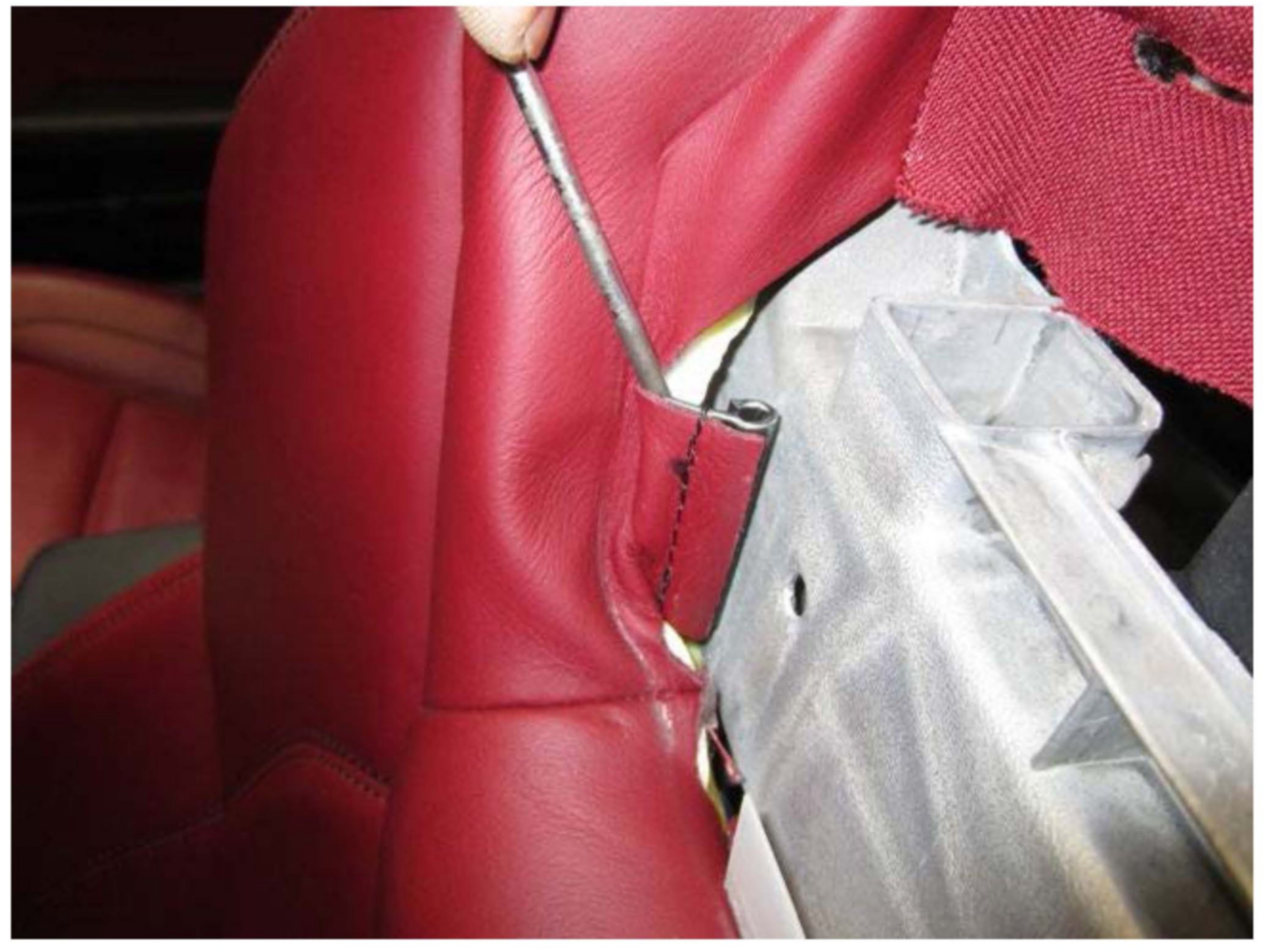

8. Unclip leather holders on both sides (Picture 5)

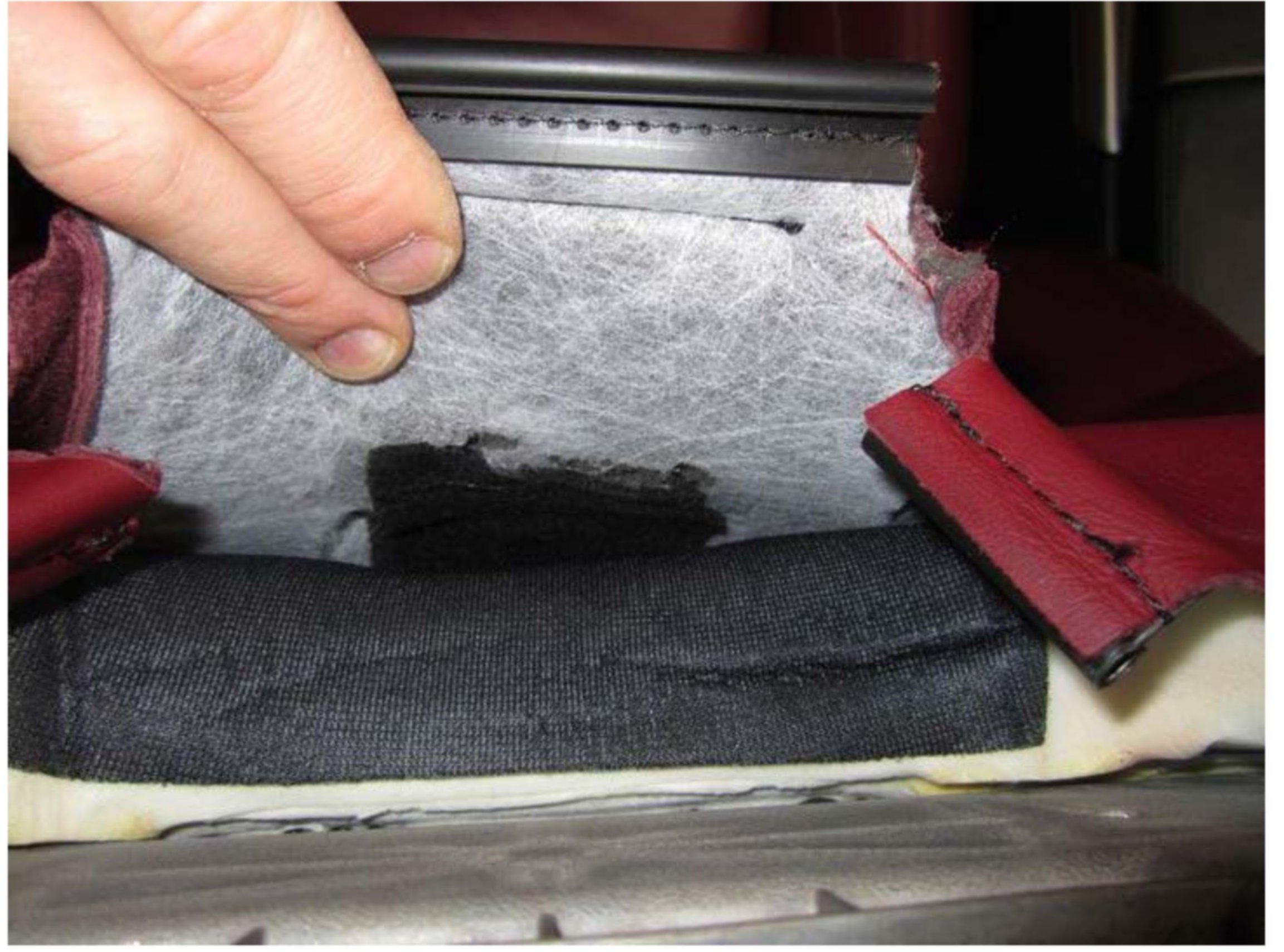

9. Pull leather cover forwards and remove felt pieces behind (Picture 6)
10. Bend open retaining tabs of badge and pull off retaining plate
11. Pull badge forwards out of leather cover and replace with a new one
12. Install in the reverse order

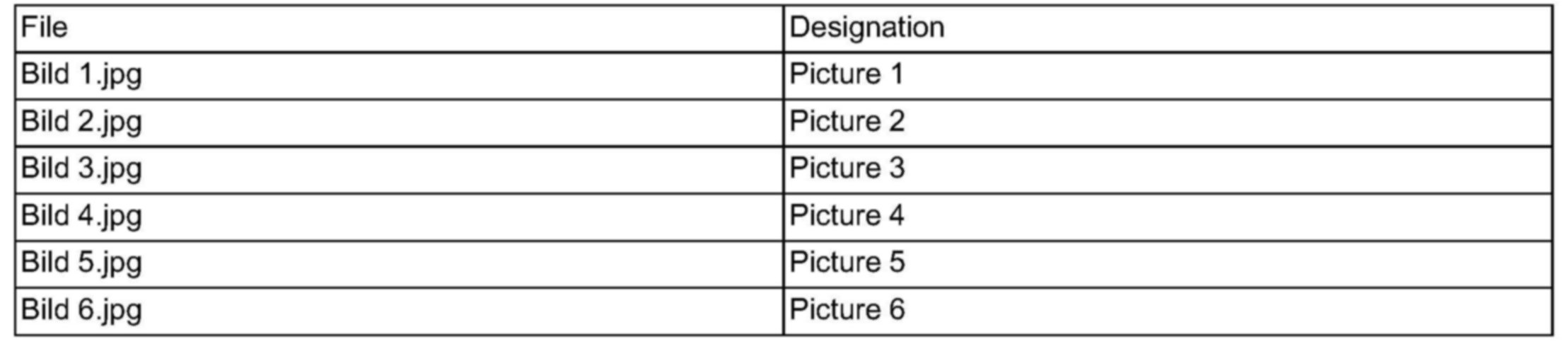

Attachments
Attachments

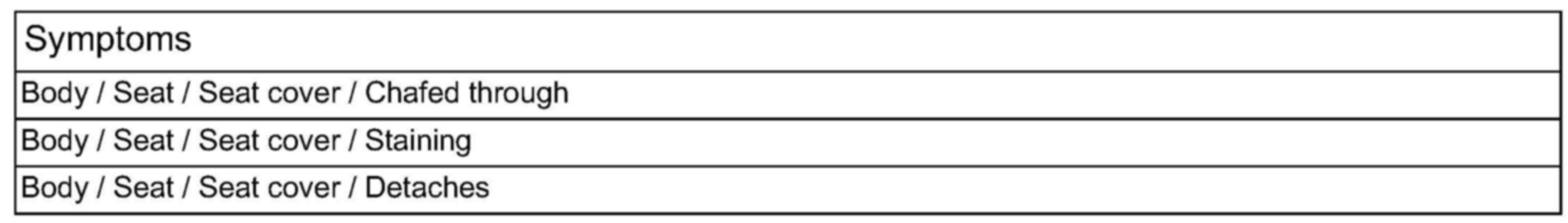

Symptoms

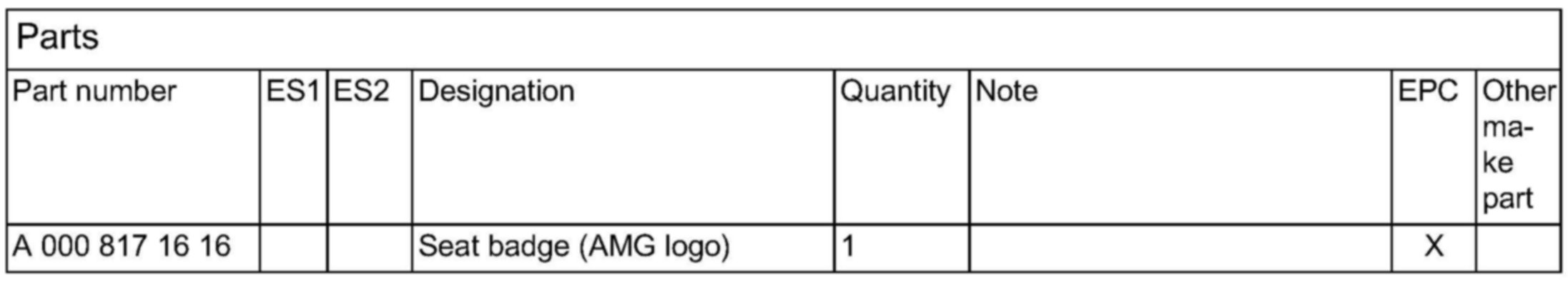

Parts

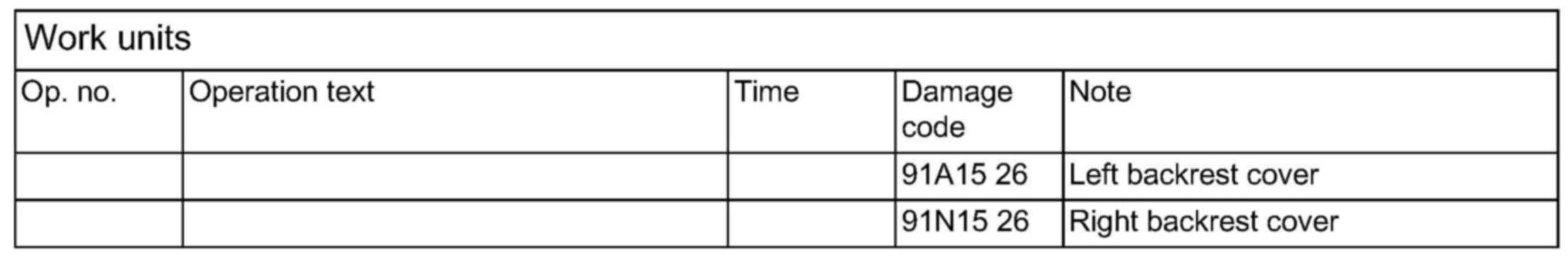

Work units

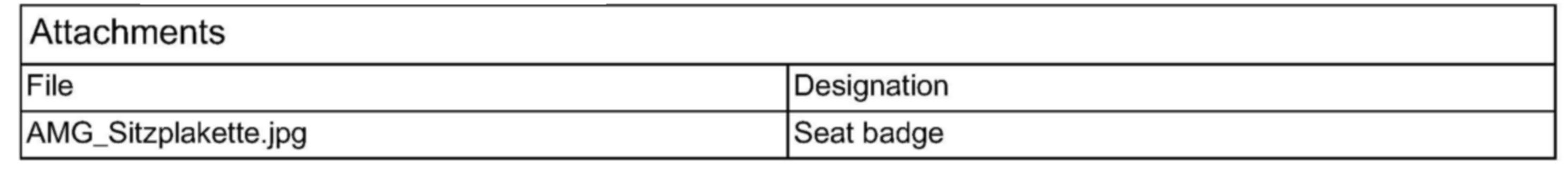

Attachments
