Mercury
>>
1982
>>
Zephyr V8-255 4.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
13.0 Thru 13.5 - Knock Detection
>>

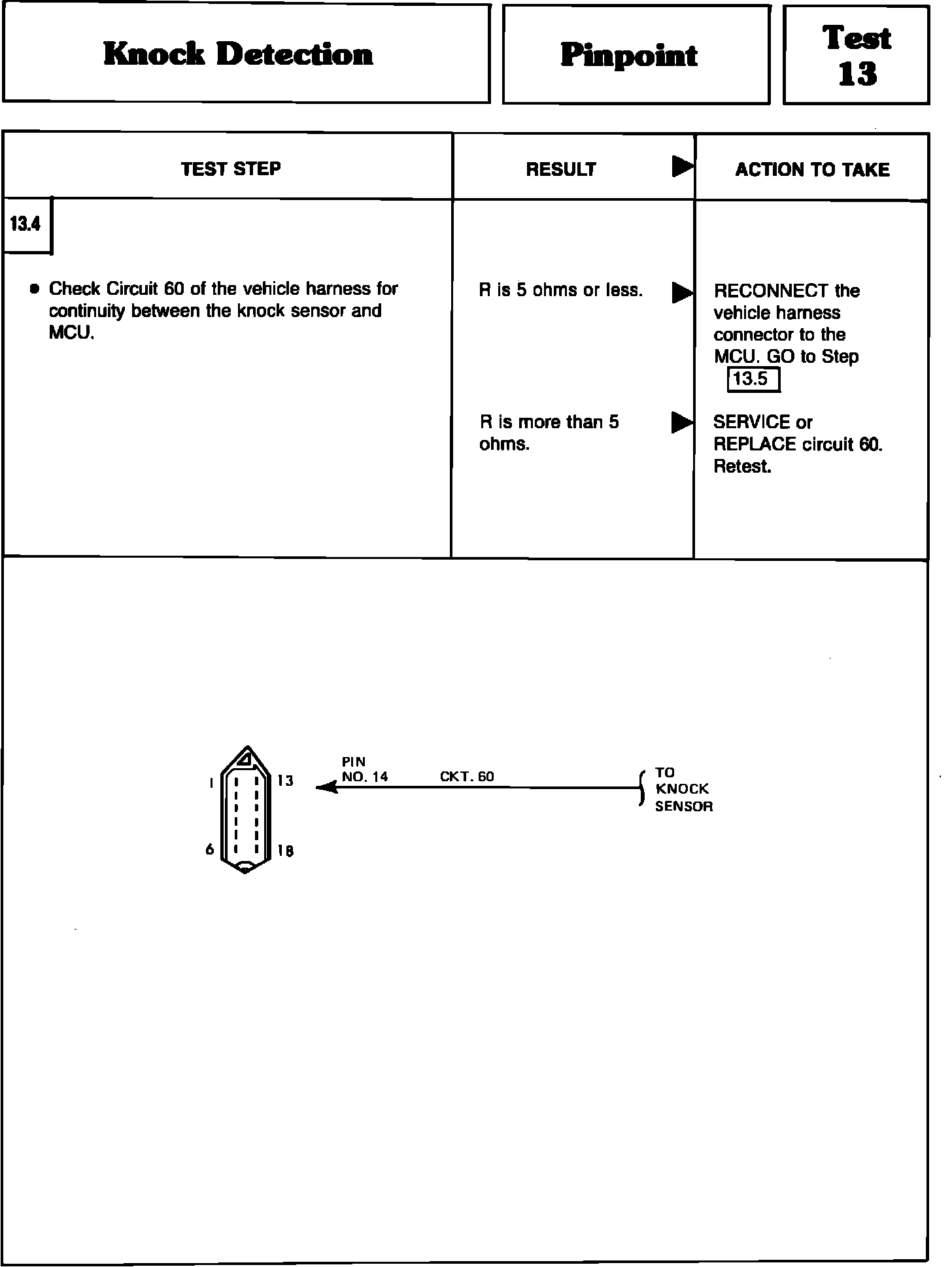

13.4 & Wiring Diagram
13.4 & Wiring Diagram
