Home >> Mercury >> 1990 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Restraints and Safety Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

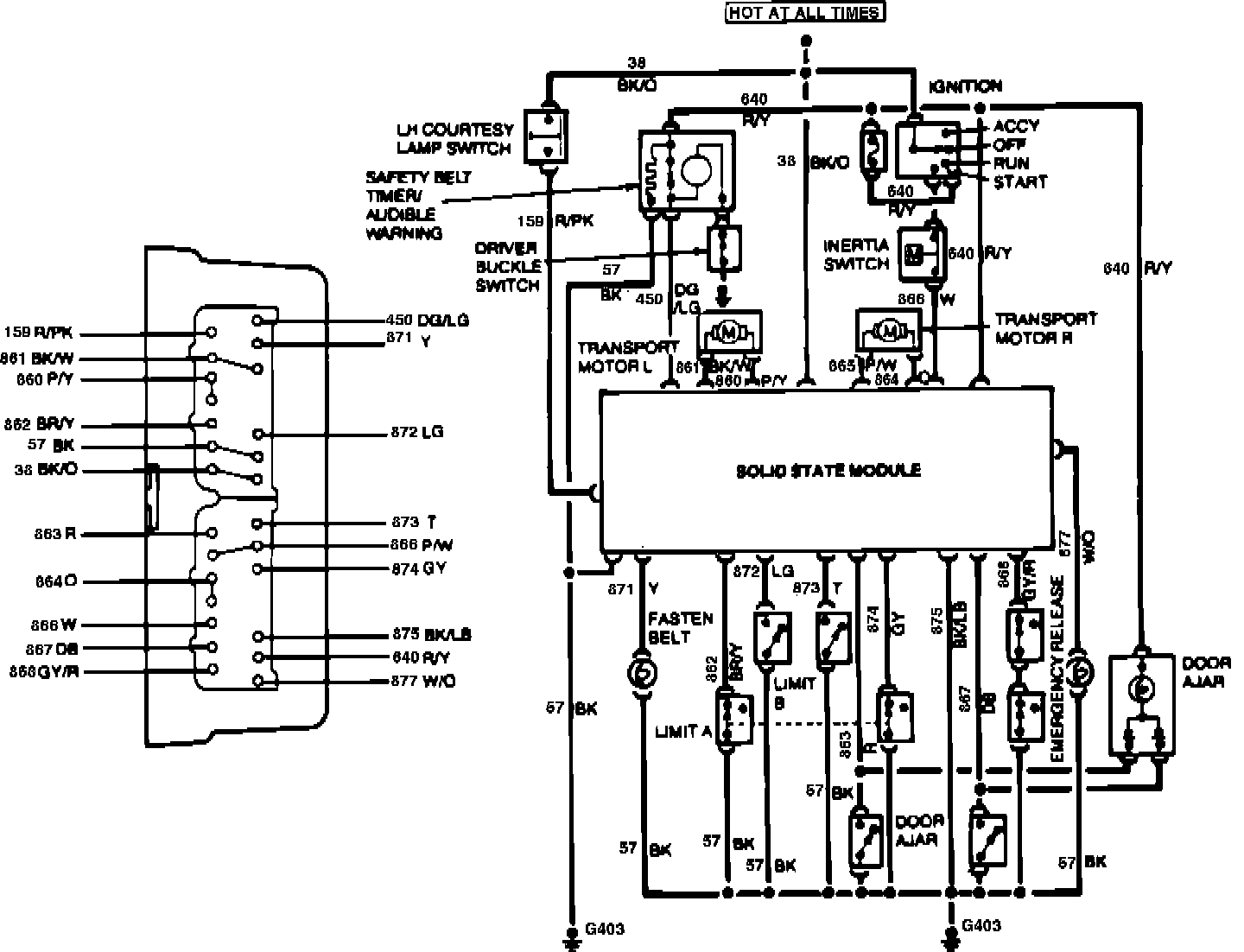

Fig. 15 Restraint System Wiring Circuit:



Fig. 16 Restraint System Wiring Circuit:
