Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
1990
>>
Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Wipers Do Not Run When Washer Switch Is Pulled
Wipers Do Not Run When Washer Switch Is Pulled

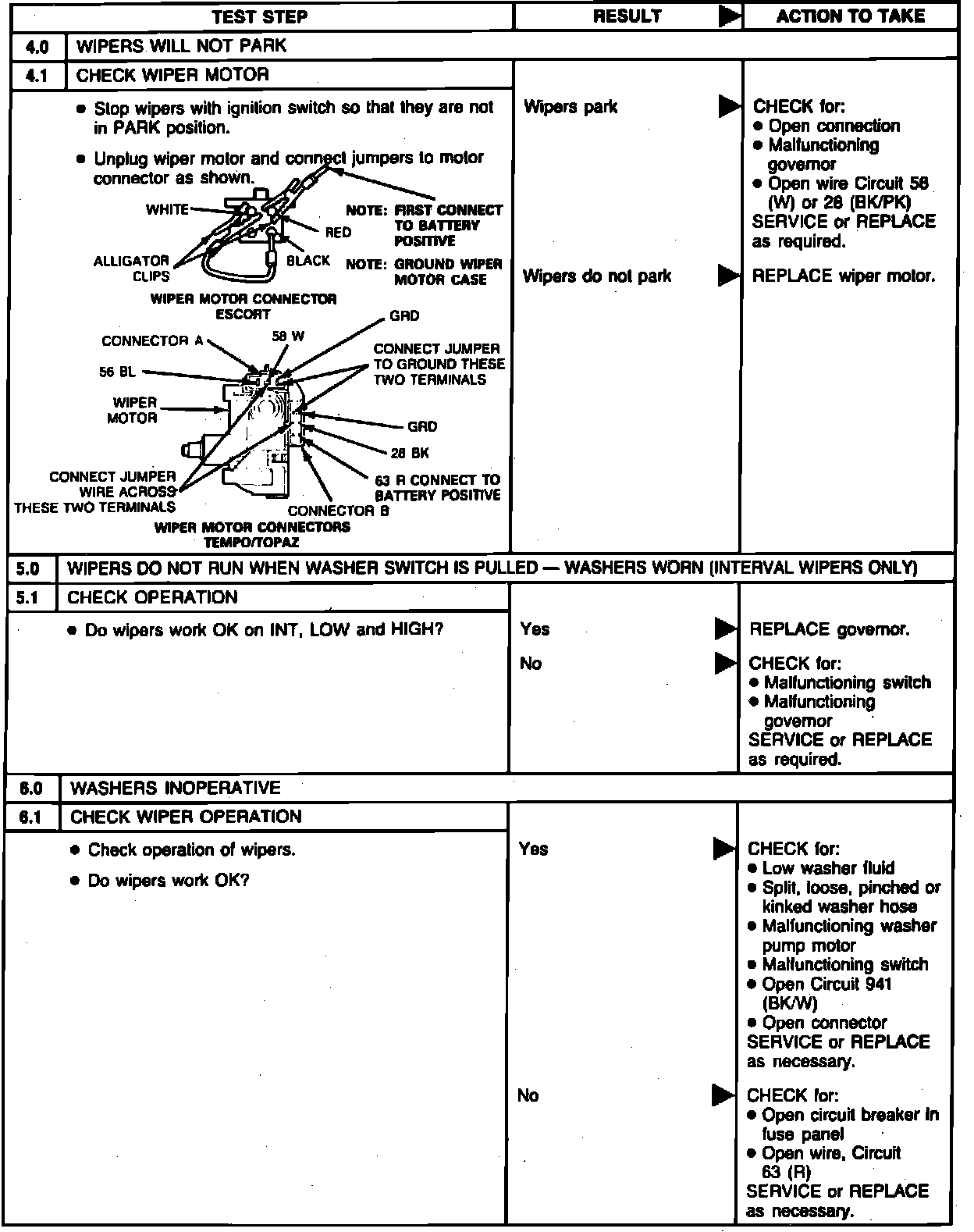

Fig. 5 Wiper System Diagnosis (Part 3 Of 3):
