Mercury
>>
1991
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Non-Turbo
Non-Turbo

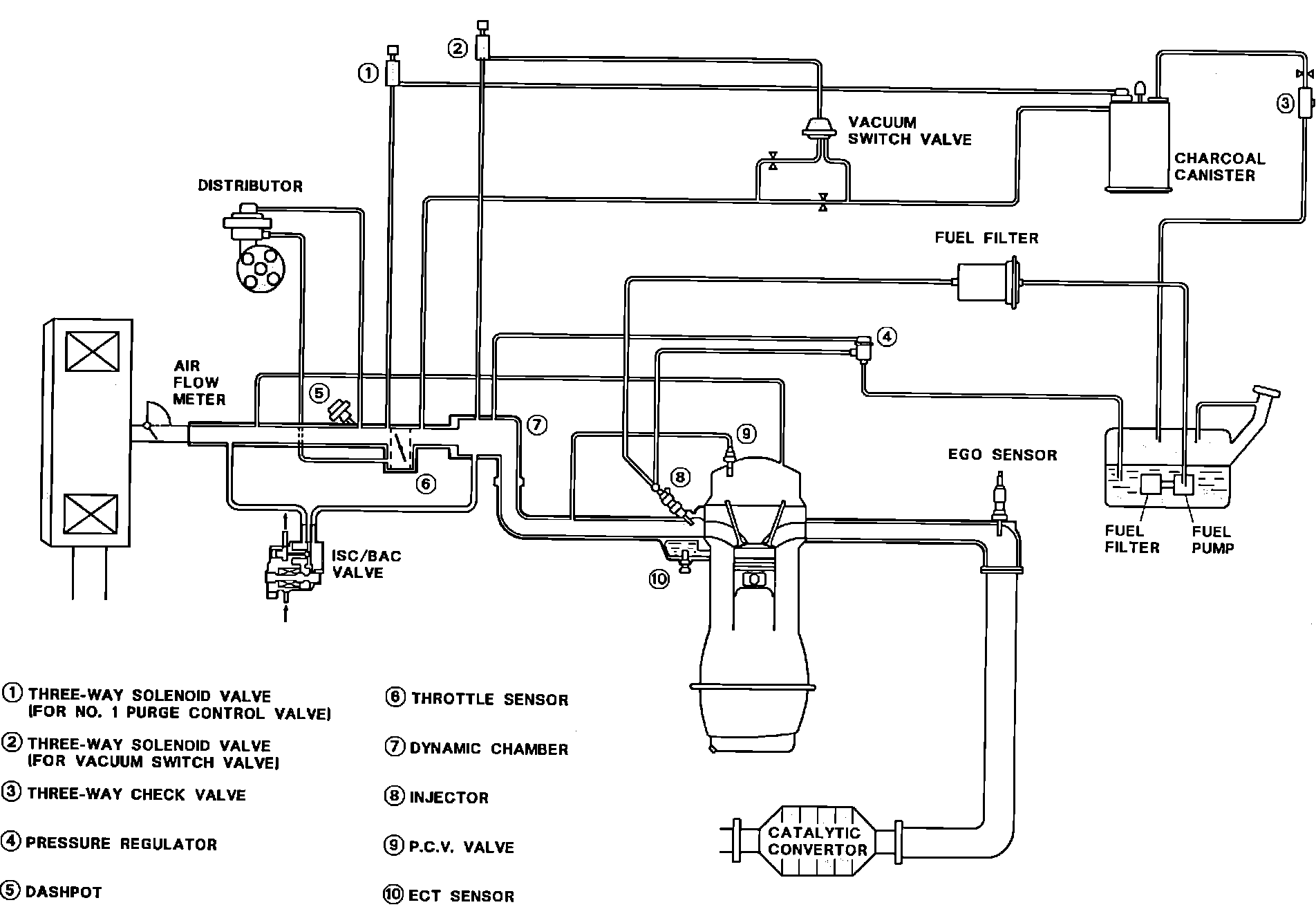

Emissions Control Vacuum Hose Routing:
