Mercury
>>
1991
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Battery
Battery

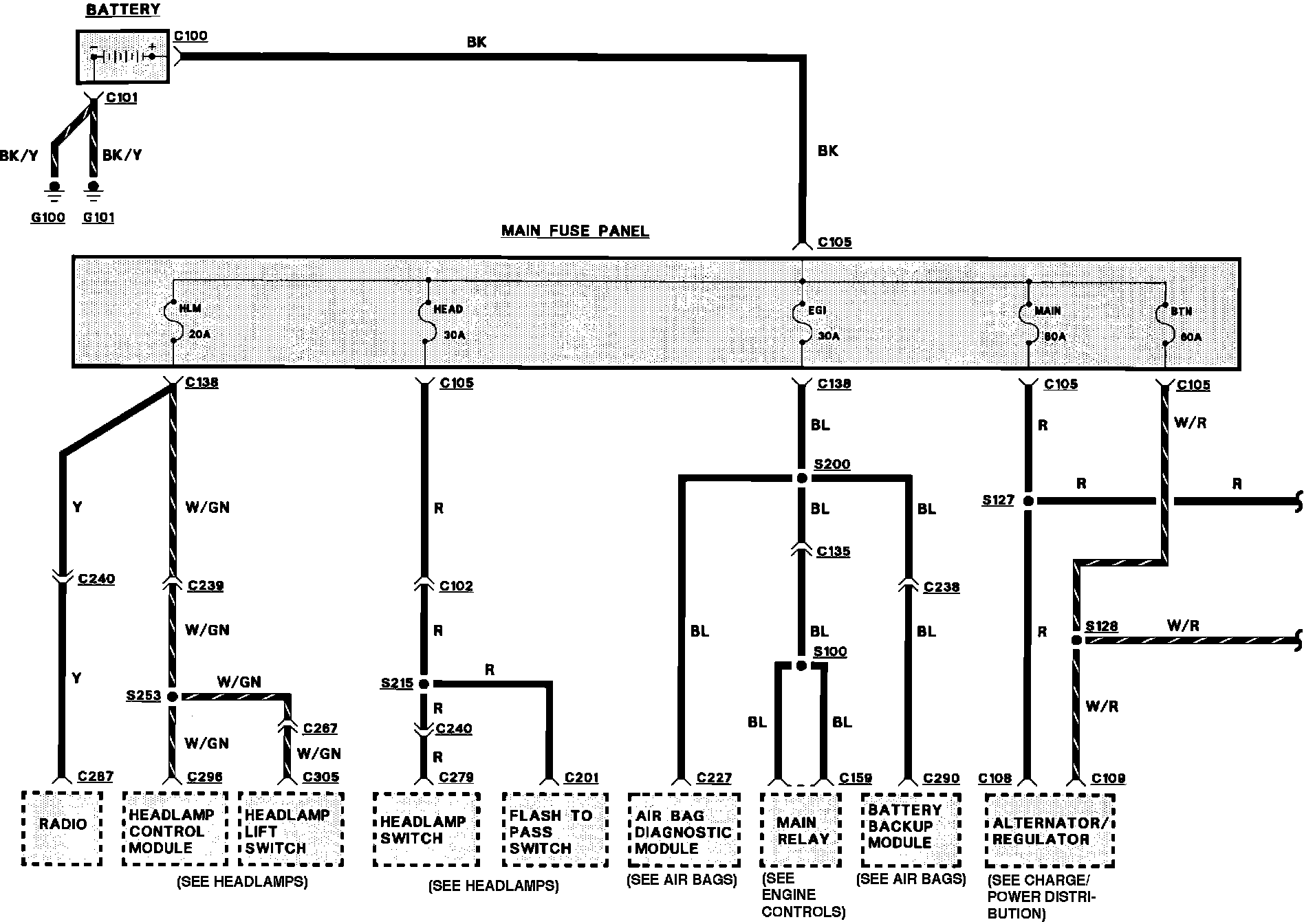

Charging System & Power Distribution:
Charging System & Power Distribution:
Charging System & Power Distribution:
