Home
>>
Mercury
>>
1991
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

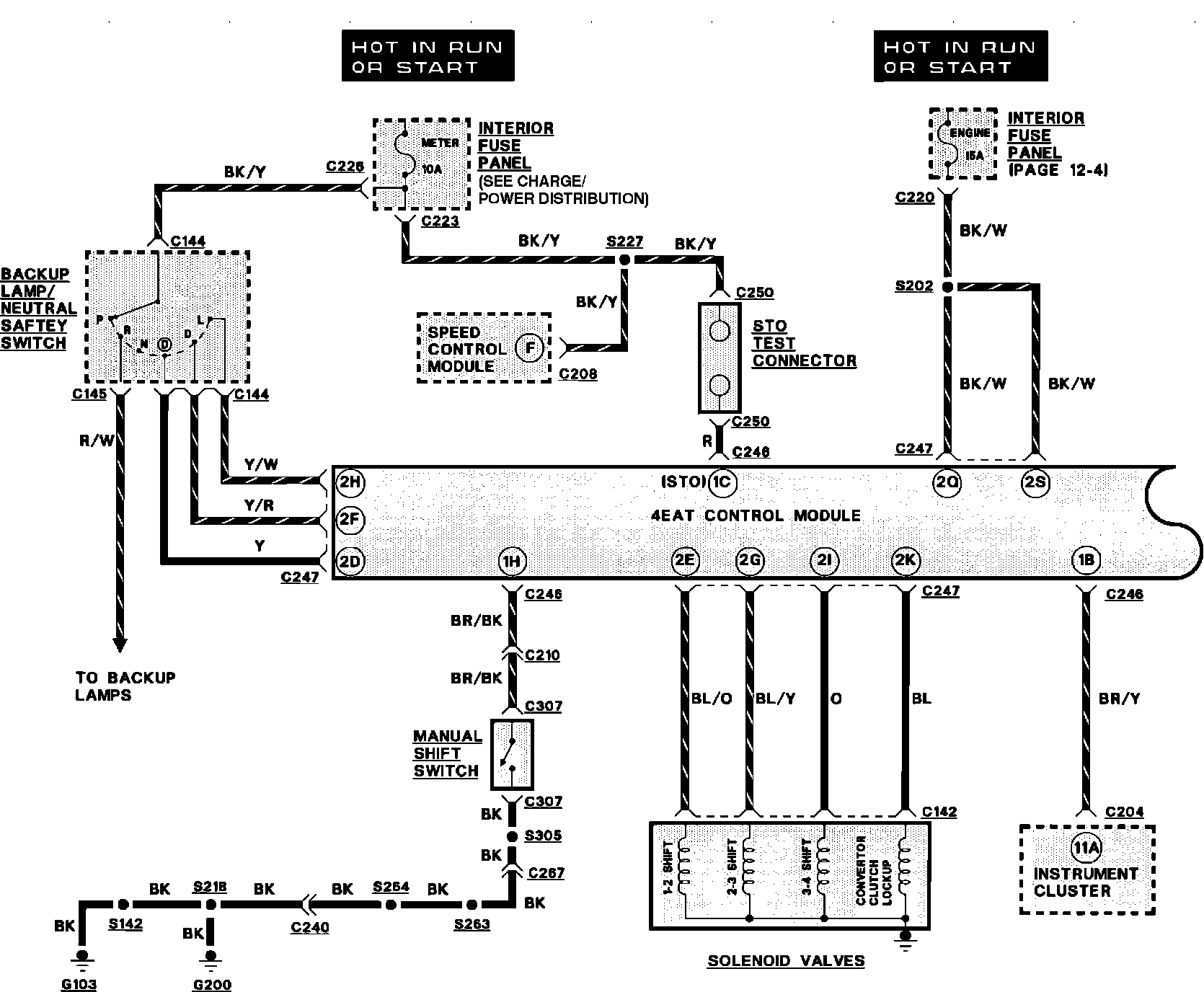

Transmission Controls:
Transmission Controls:
