Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Air Temperature Sensor ( Ambient / Intake )
Air Temperature Sensor ( Ambient / Intake )

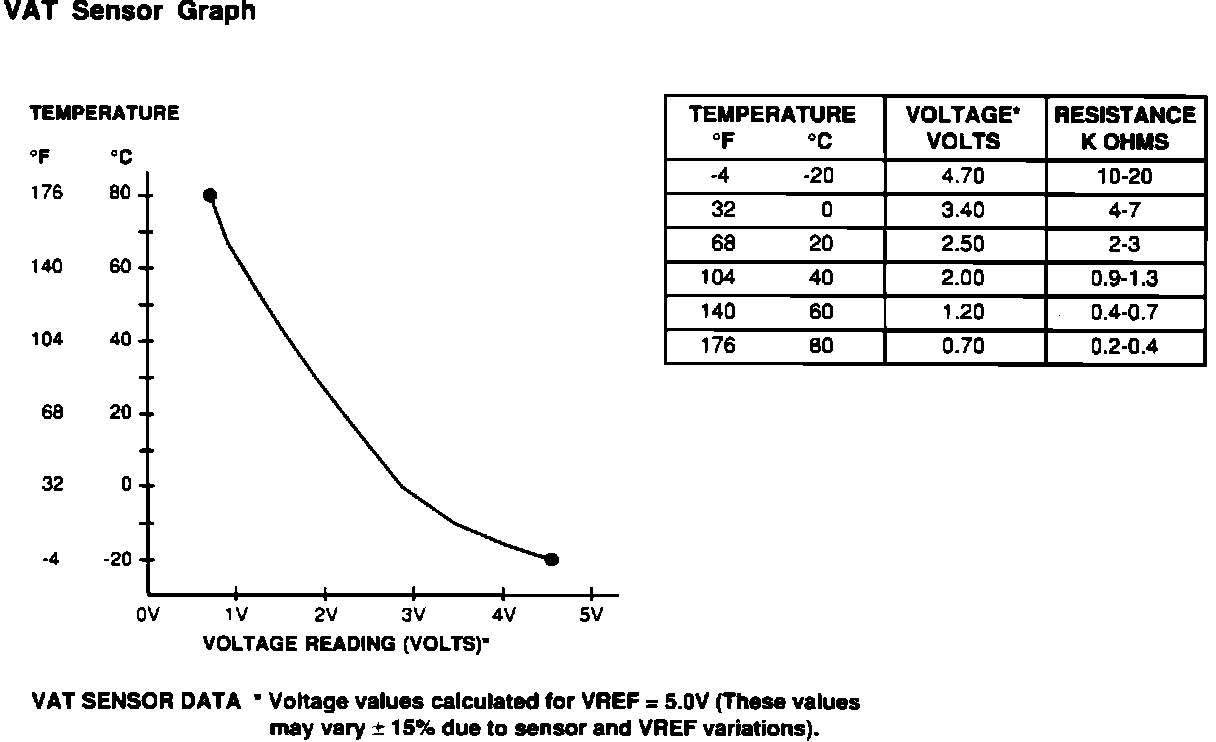

Vane Air Temperature (VAT) Sensor Data Chart:
