Mercury
>>
1991
>>
Capri L4-1597cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Throttle Position Sensor
Throttle Position Sensor

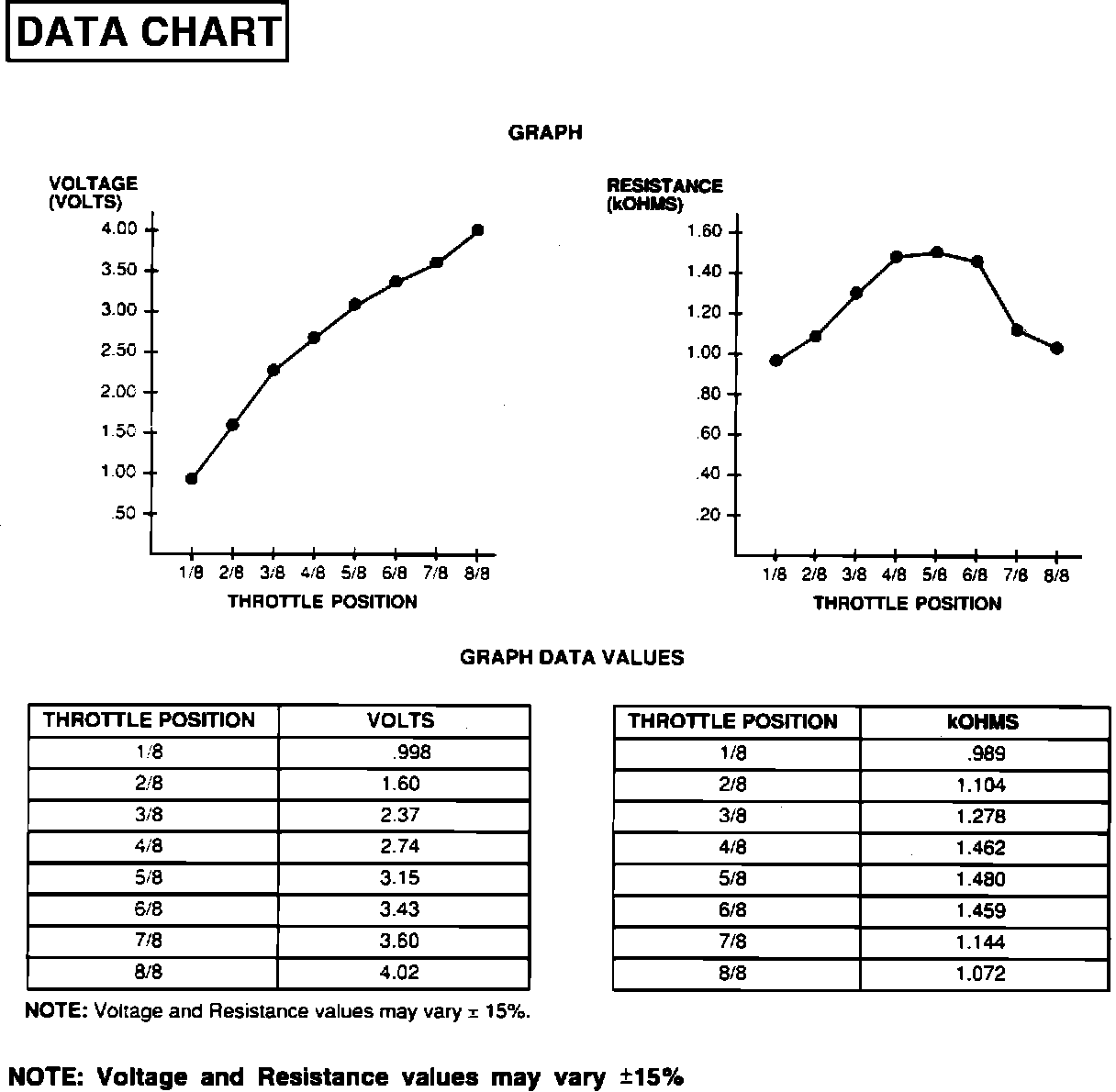

Pinpoint Test TP Data Chart:
