Fuel Delivery and Air Induction: Locations

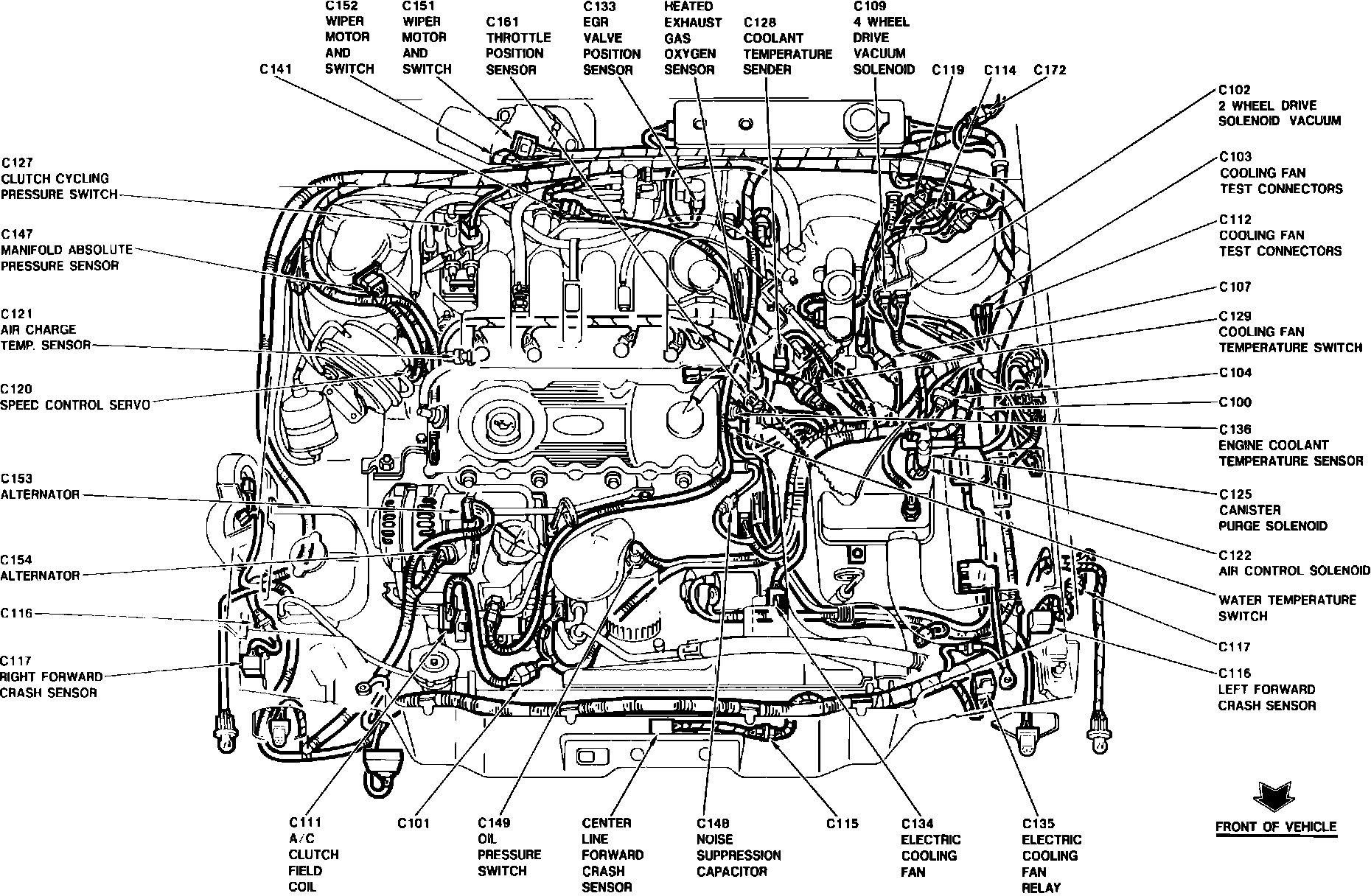

Engine Compartment View Part 1 Of 2:
Engine Compartment View Part 2 Of 2:
