Temperature Gauge: Testing and Inspection

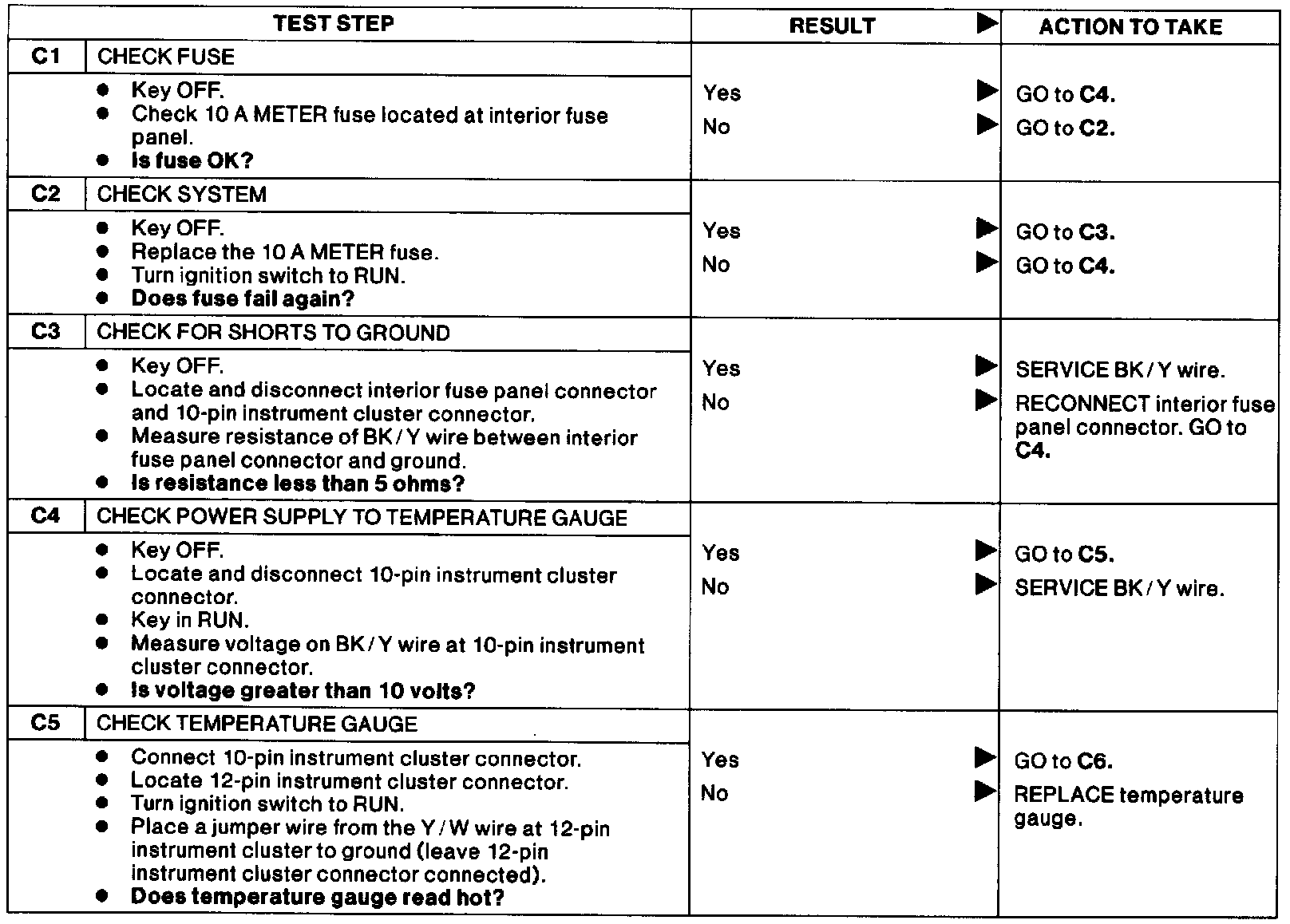

Test C: Coolant Gauge Diagnosis.:





Test C1-C5

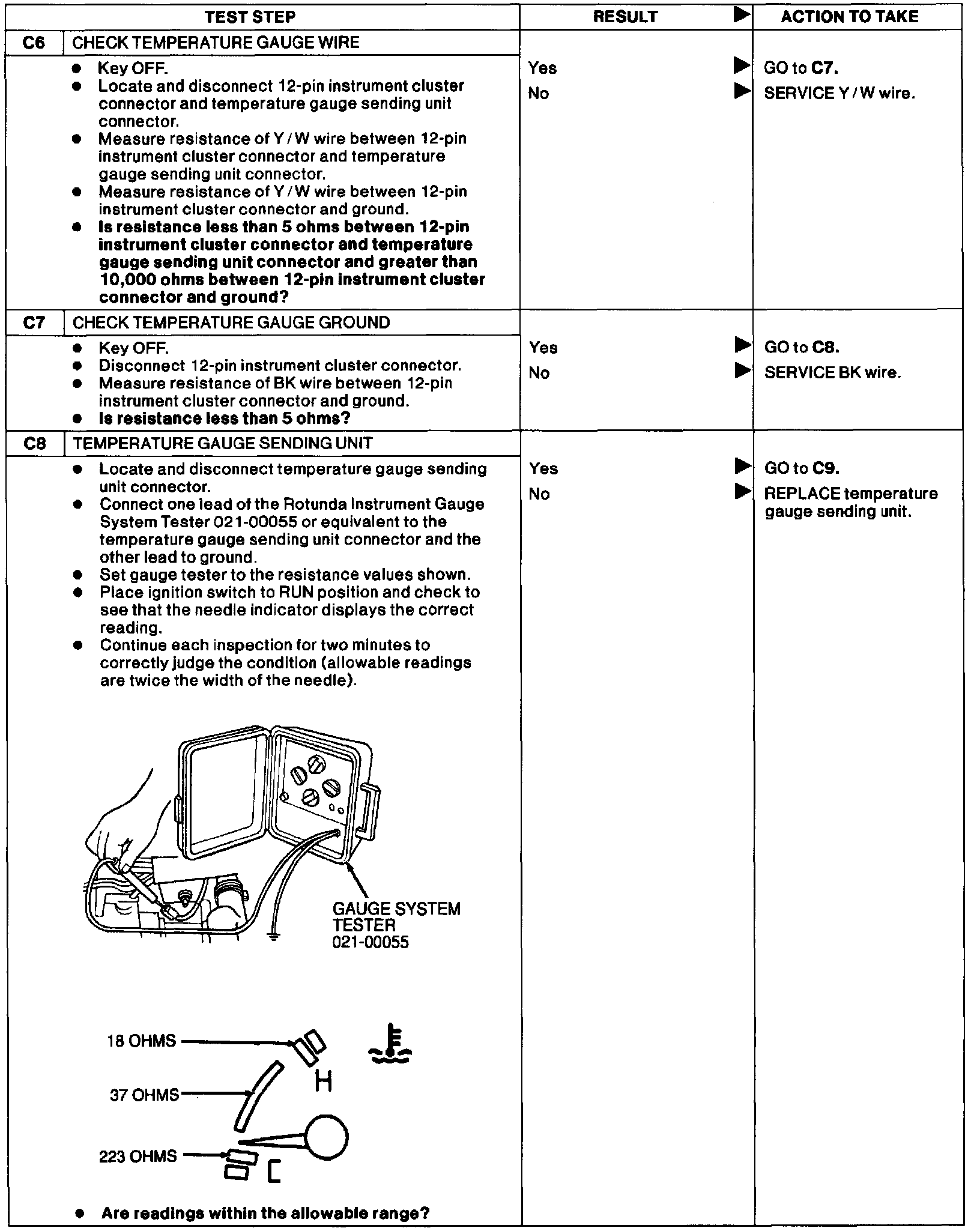

Test C: Coolant Gauge Diagnosis.:





Test C6-C8

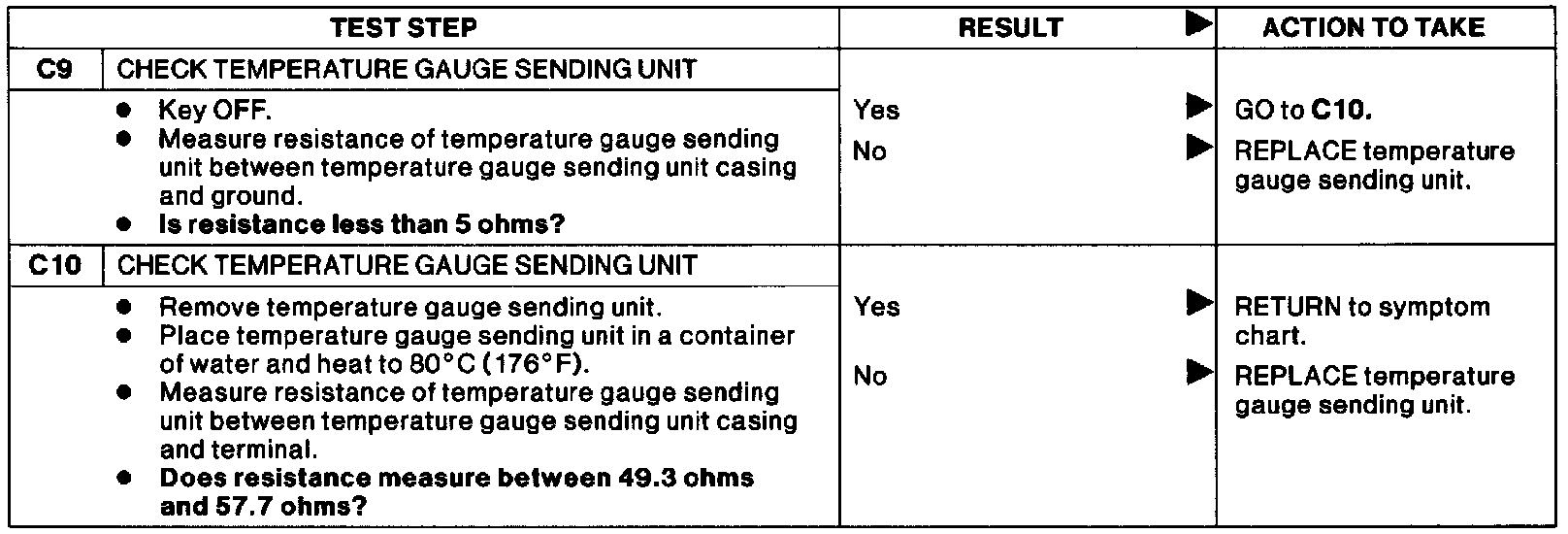

Test C: Coolant Gauge Diagnosis.:





Test C9-C10
