Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

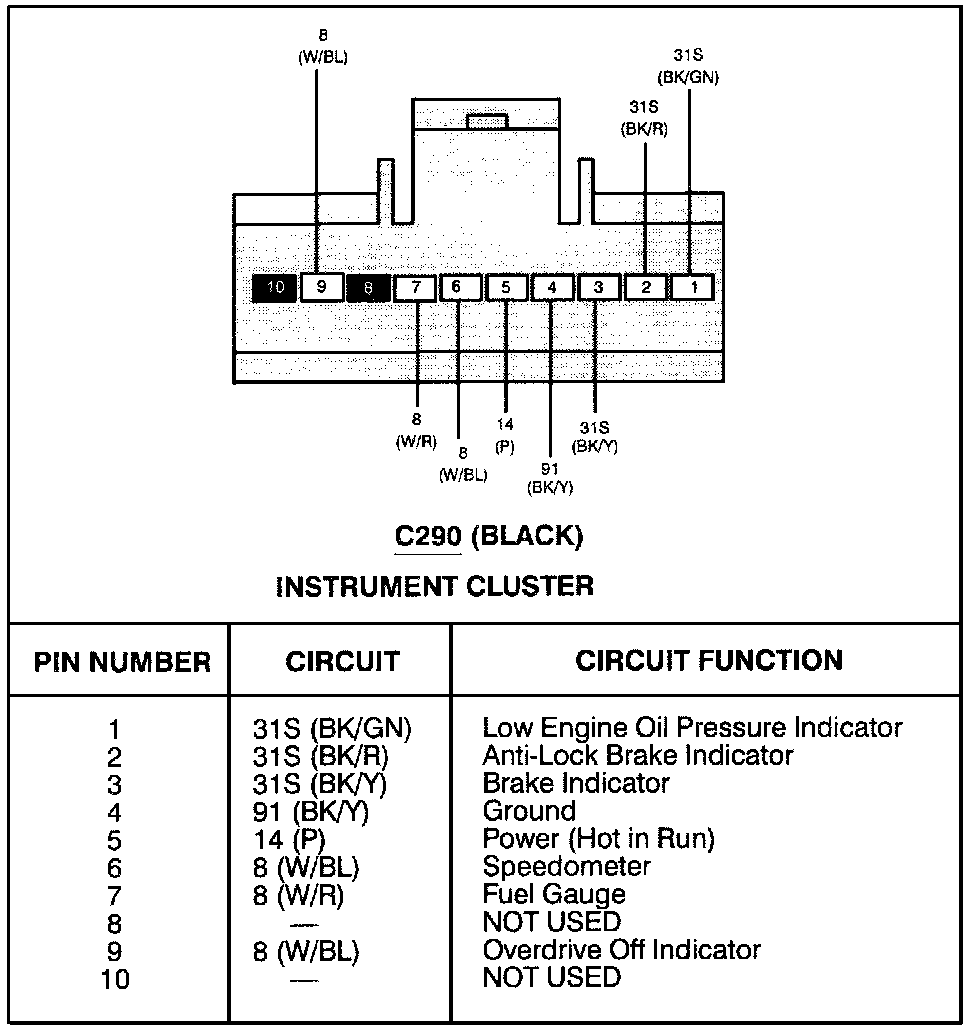

Instrument Cluster (C290):

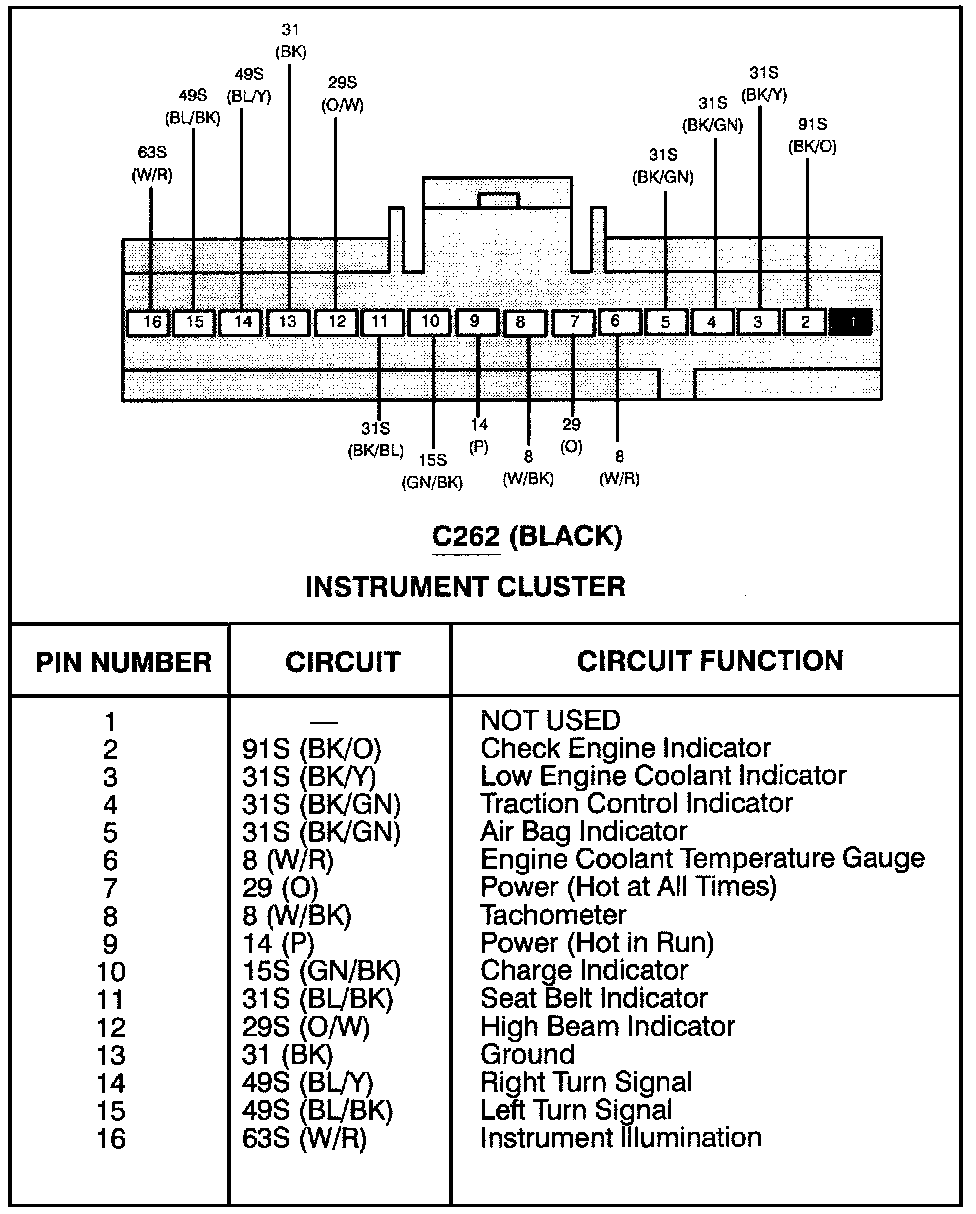

Instrument Cluster (C262):
