Test A

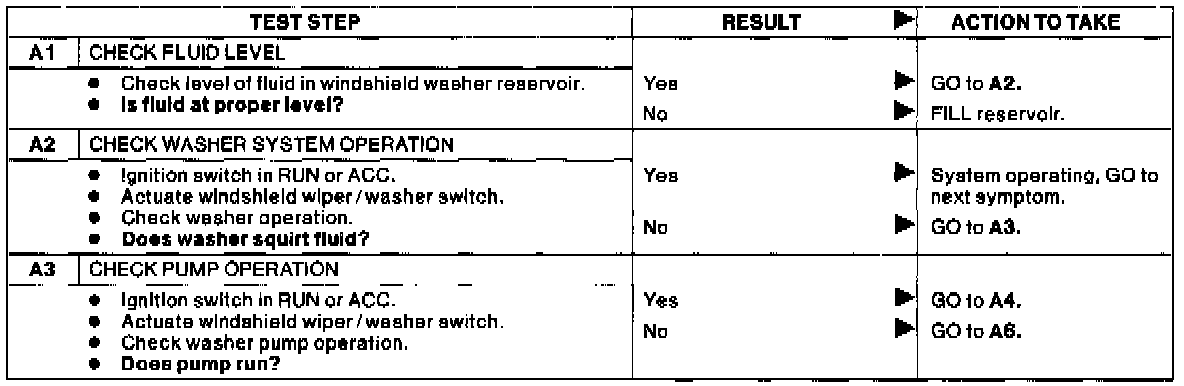

Test A: Washer Inoperative:





Test A1-A3

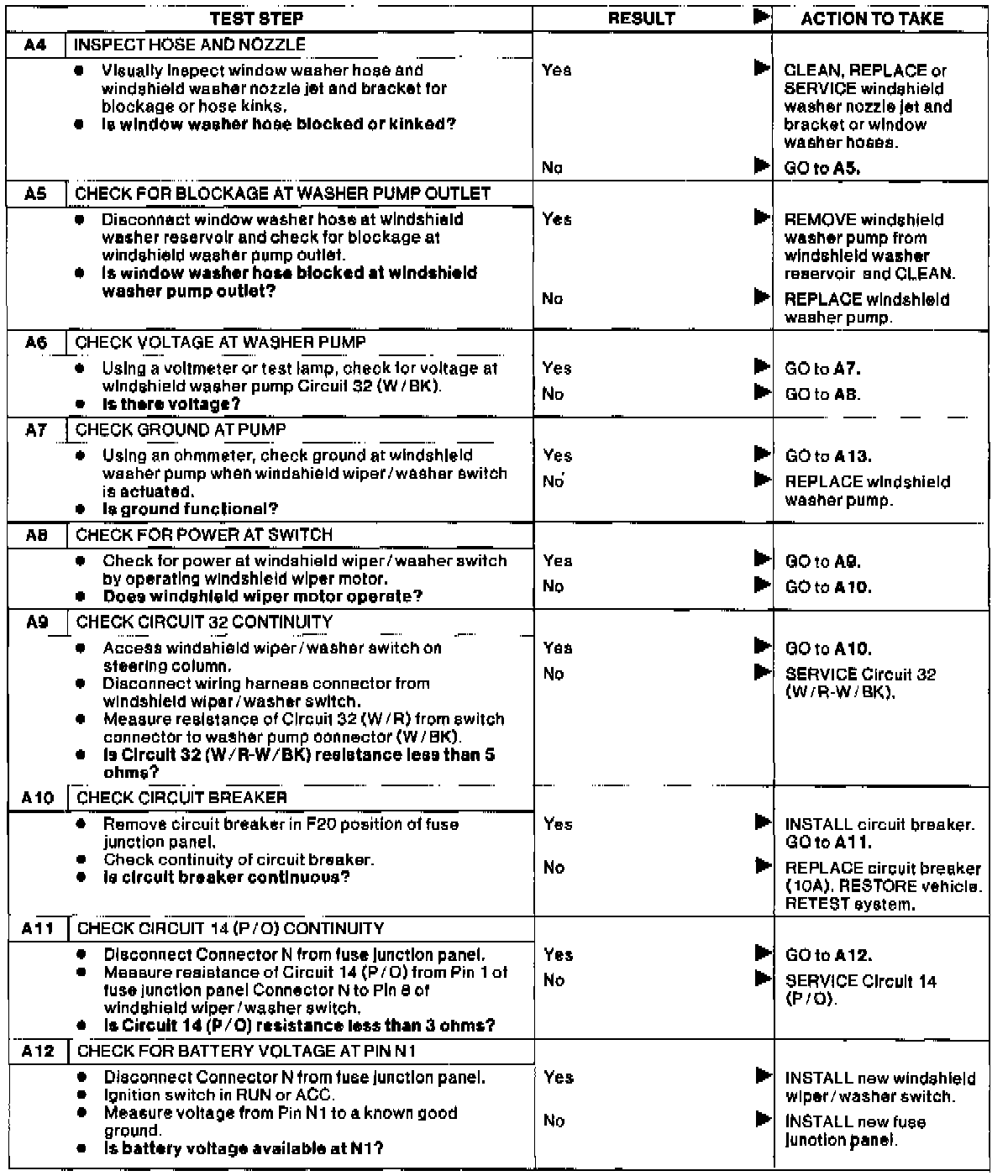

Test A: Washer Inoperative:





Test A4-A12

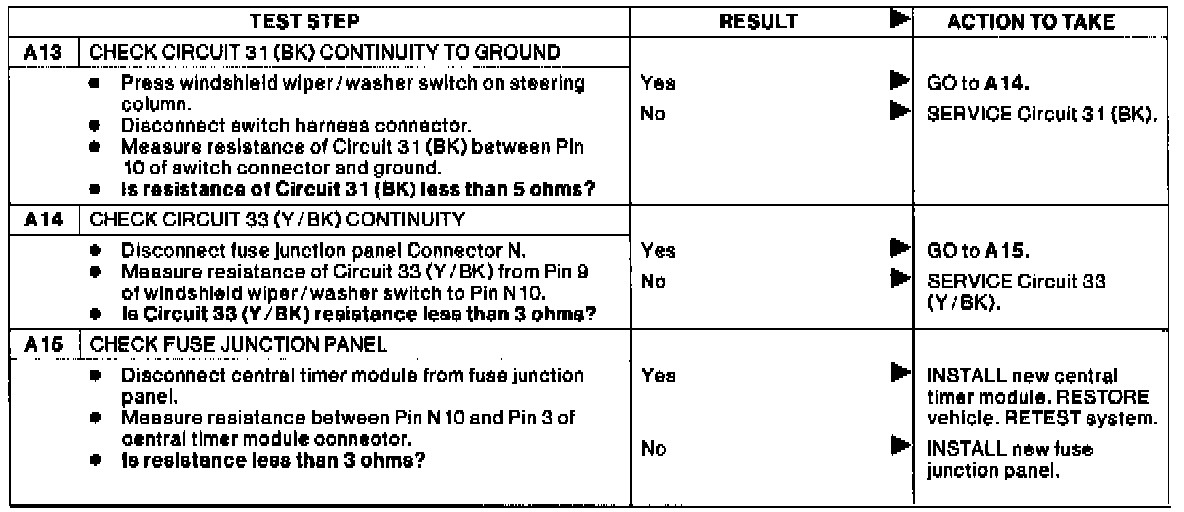

Test A: Washer Inoperative:





Test A13-A15
