Speedometer Head: Testing and Inspection

Test G: Speedometer Reads Inaccurately.:

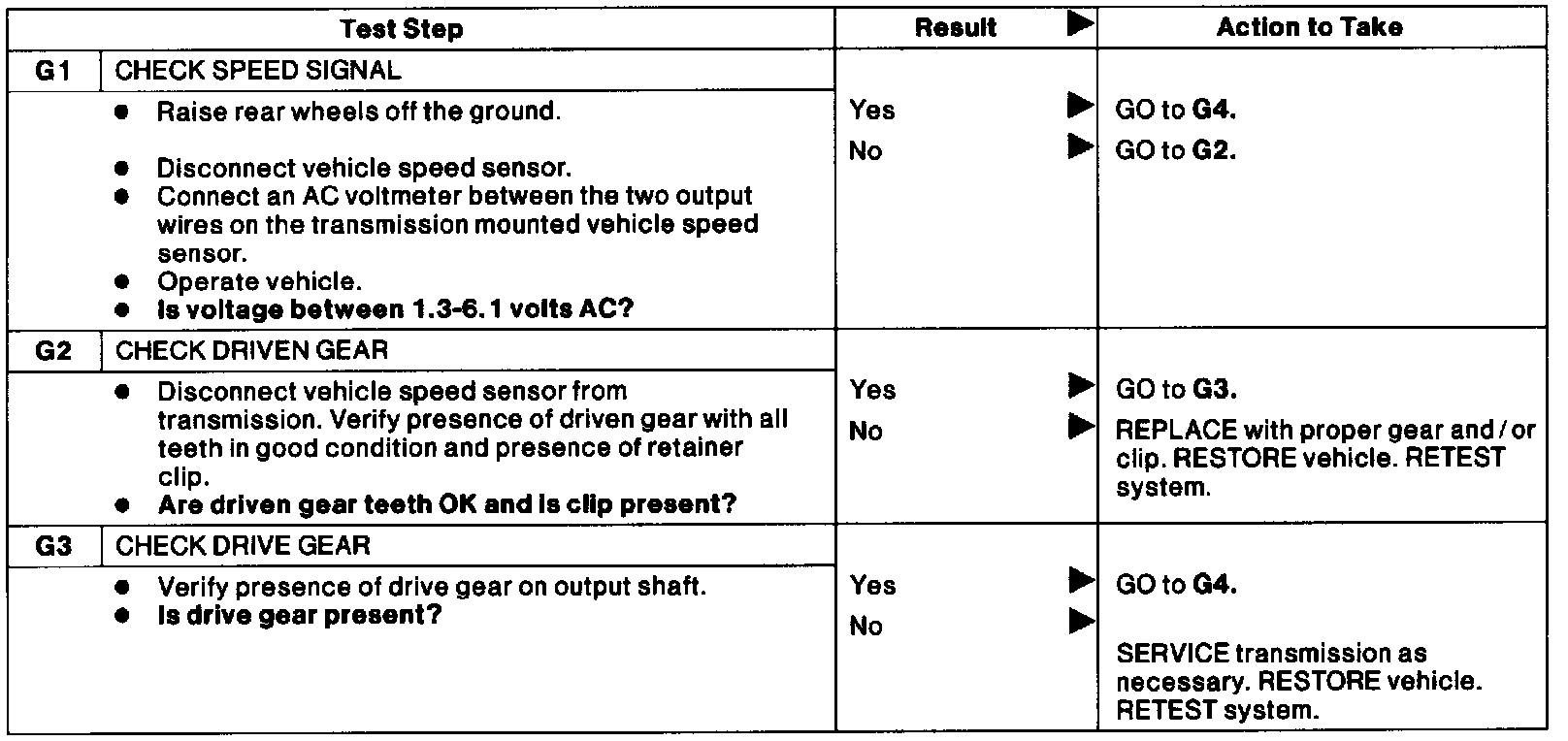

Test G1-G3

Test G: Speedometer Reads Inaccurately.:

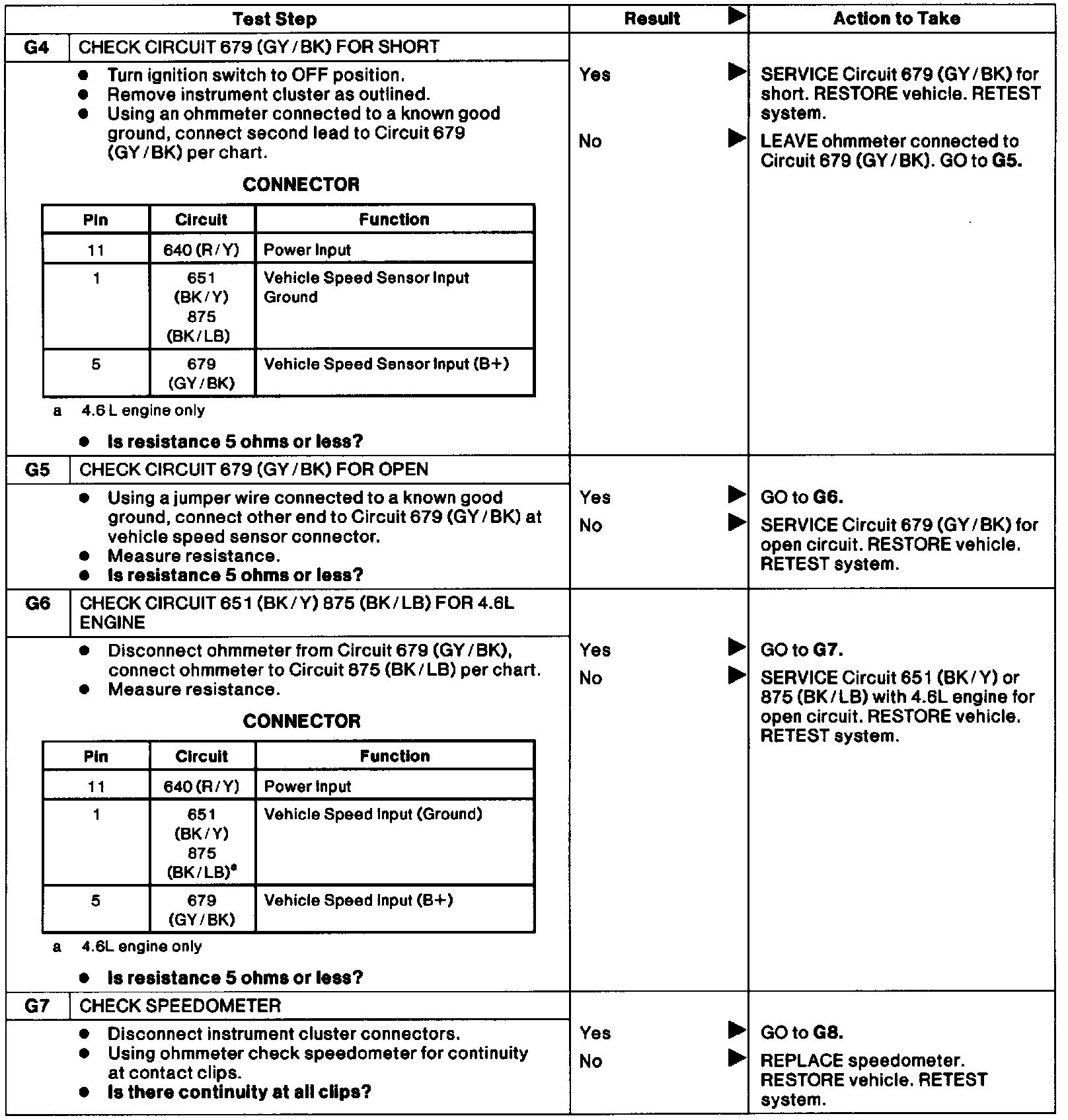

Test G4-G7

Test G: Speedometer Reads Inaccurately.:





Test G8
