Ground Diagrams (By Component Name)

Grounds (G100, G101, G103, G105):

A/C Clutch Diode
A/C Compressor Clutch
Battery
Fuel Rail Cutoff Solenoid
Powertrain Control Module

Grounds (G102):

Cooling Fan
Engine Compartment Fuse Box
Police Power Relay
Right Cornering Lamp
Right Front Park/Turn Lamp
Right Front Park/Turn/Side Marker Lamp
Right Front Side Marker Lamp
Right Hi Beam Headlamp
Right Lo Beam Headlamp

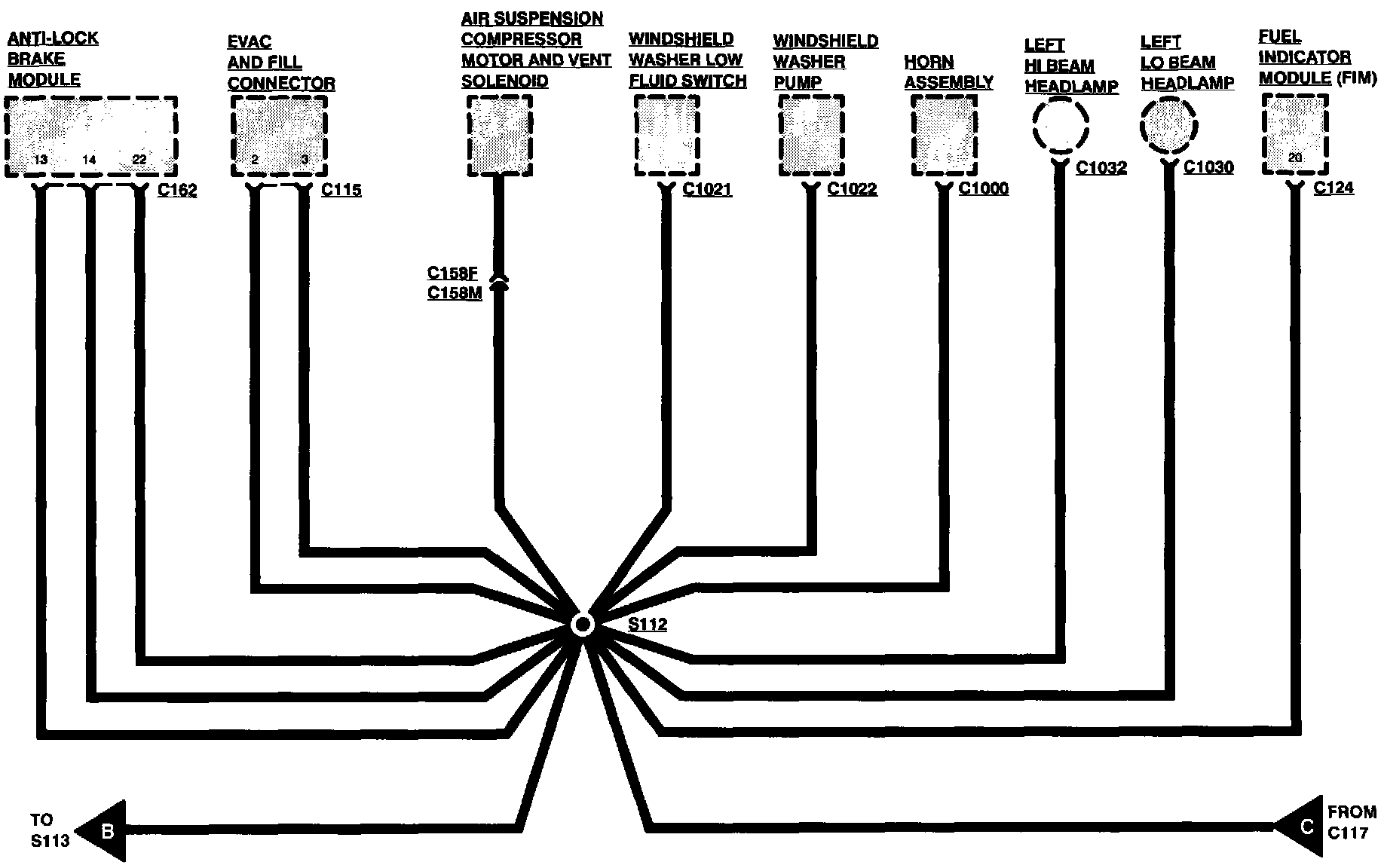

Grounds (G102):

Air Suspension Compressor Motor And Vent Solenoid
Anti-Lock Brake Module
Evac And Fill Connector
Fuel Indicator Module
Horn Assembly
Left Hi Beam Headlamp
Left Lo Beam Headlamp
Windshield Washer Low Fluid Switch
Windshield Washer Pump

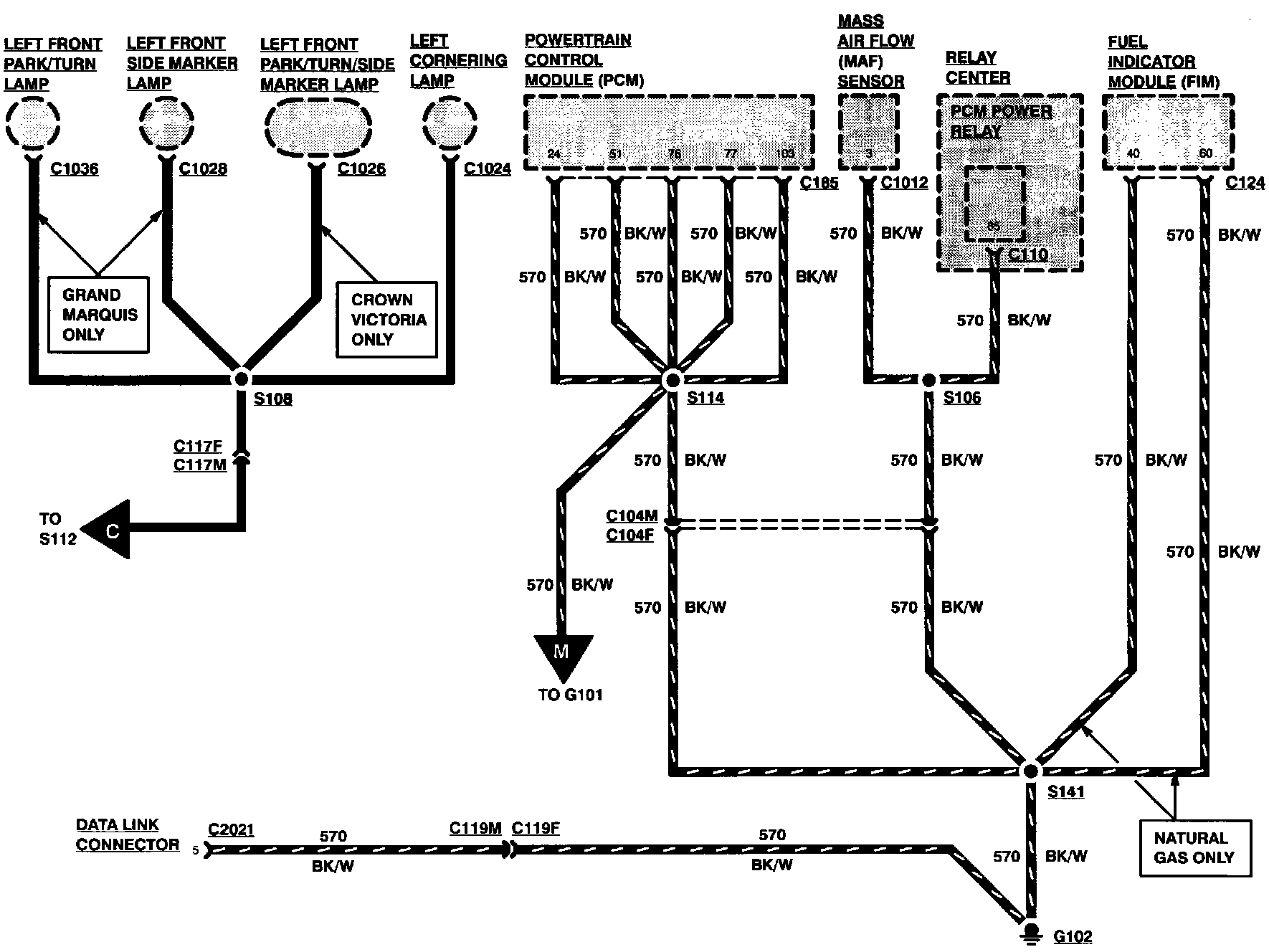

Grounds (G102):

Data Link Connector
Fuel Indicator Module
Left Cornering Lamp
Left Front Park/Turn Lamp
Left Front Park/Turn/Side Marker Lamp
Left Front Side Marker Lamp
Mass Air Flow Sensor
PCM Power Relay
Powertain Control Module
Relay Center

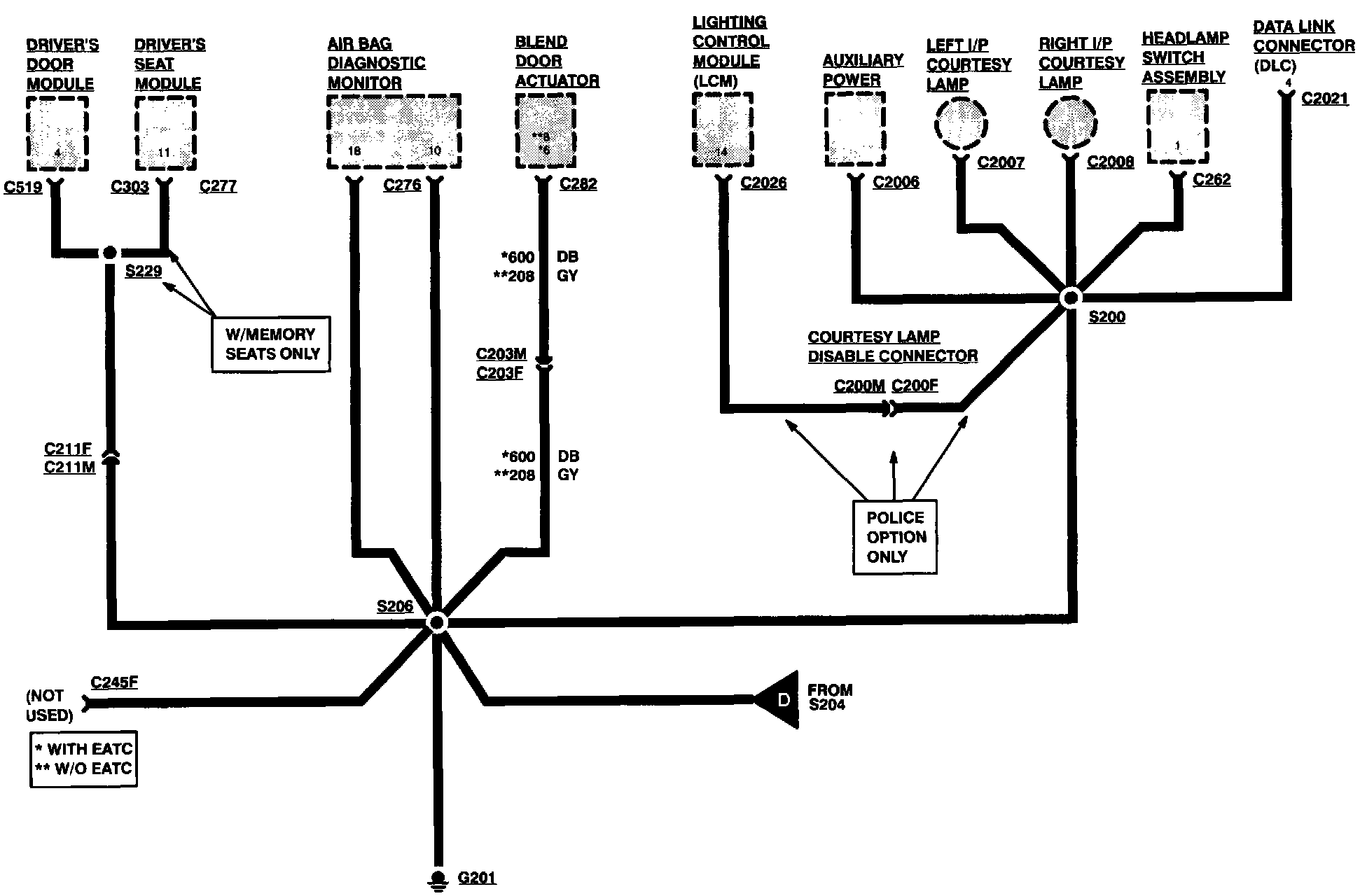

Grounds (G201):

Air Bag Diagnostic Monitor
Auxiliary Power
Blen Door Actuator
Data Link Connnector
Dirver's Seat Module
Driver's Door Module
Headlamp Switch Assembly
Left I/P Courtesy Lamp
Lighting Control Module
Right I/P Courtesy Lamp

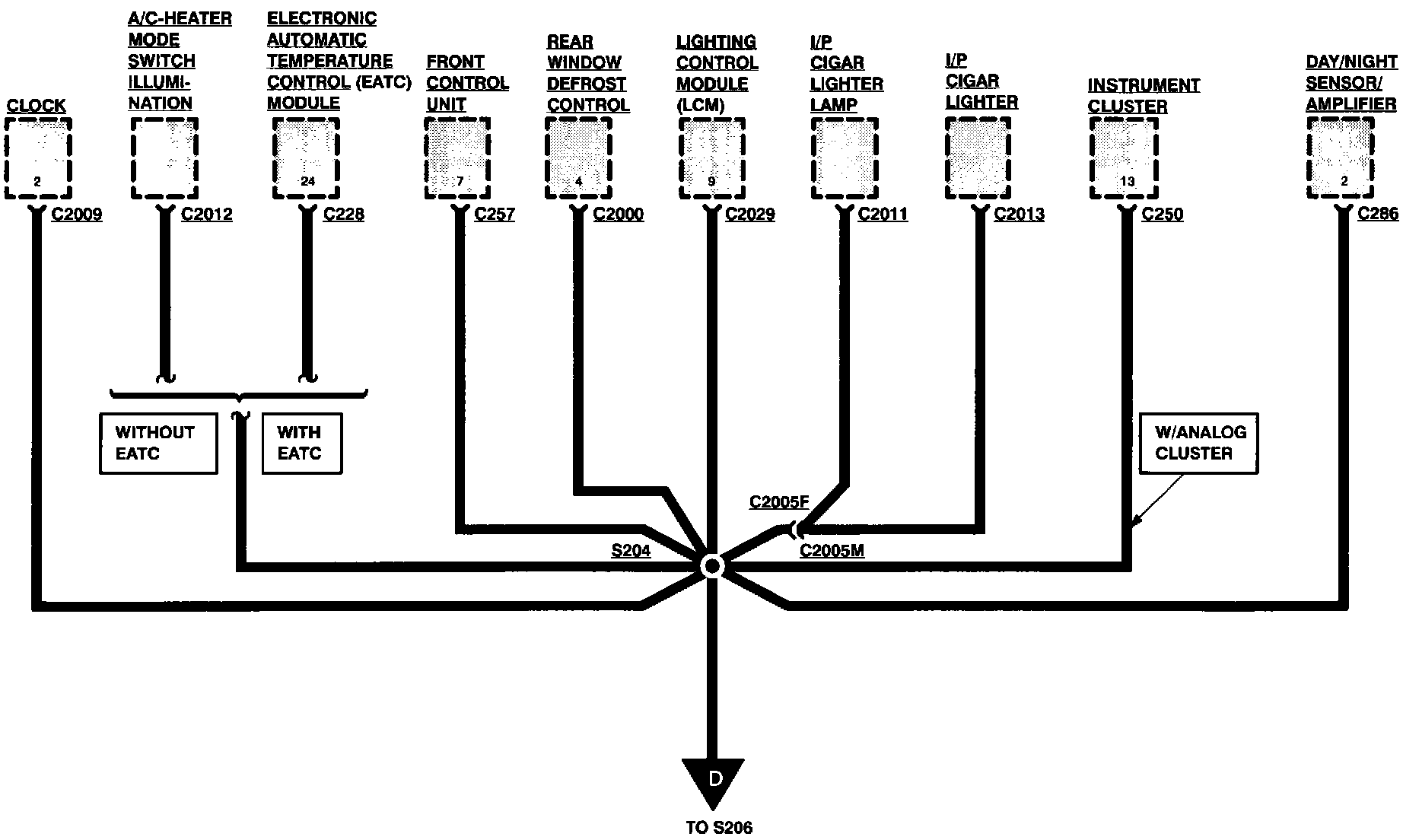

Grounds (G201):

A/C-Heater Mode Switch Illumination
Clock
Day/Night/Sensor/Amplifier
Electroinic Temperature Control Module
Front Control Unit
I/P Cigar Lighter
I/P Cigar Lighter Lamp
Instrument Cluster
Light Control Module
Rear Window Defrost Control

Grounds (G201):

Air Suspension/EVO Steering Module
Electronic Vaialbe Orifice Steering Module
Engine Coolant Temperature Sender
Front Control Unit
Fuel Tank Assembly
Instrment Cluster (Analog)
Instrument Cluster
Instrument Cluster (Digital)
Message Center Switch Assembly
Vehicle Speed Sensor

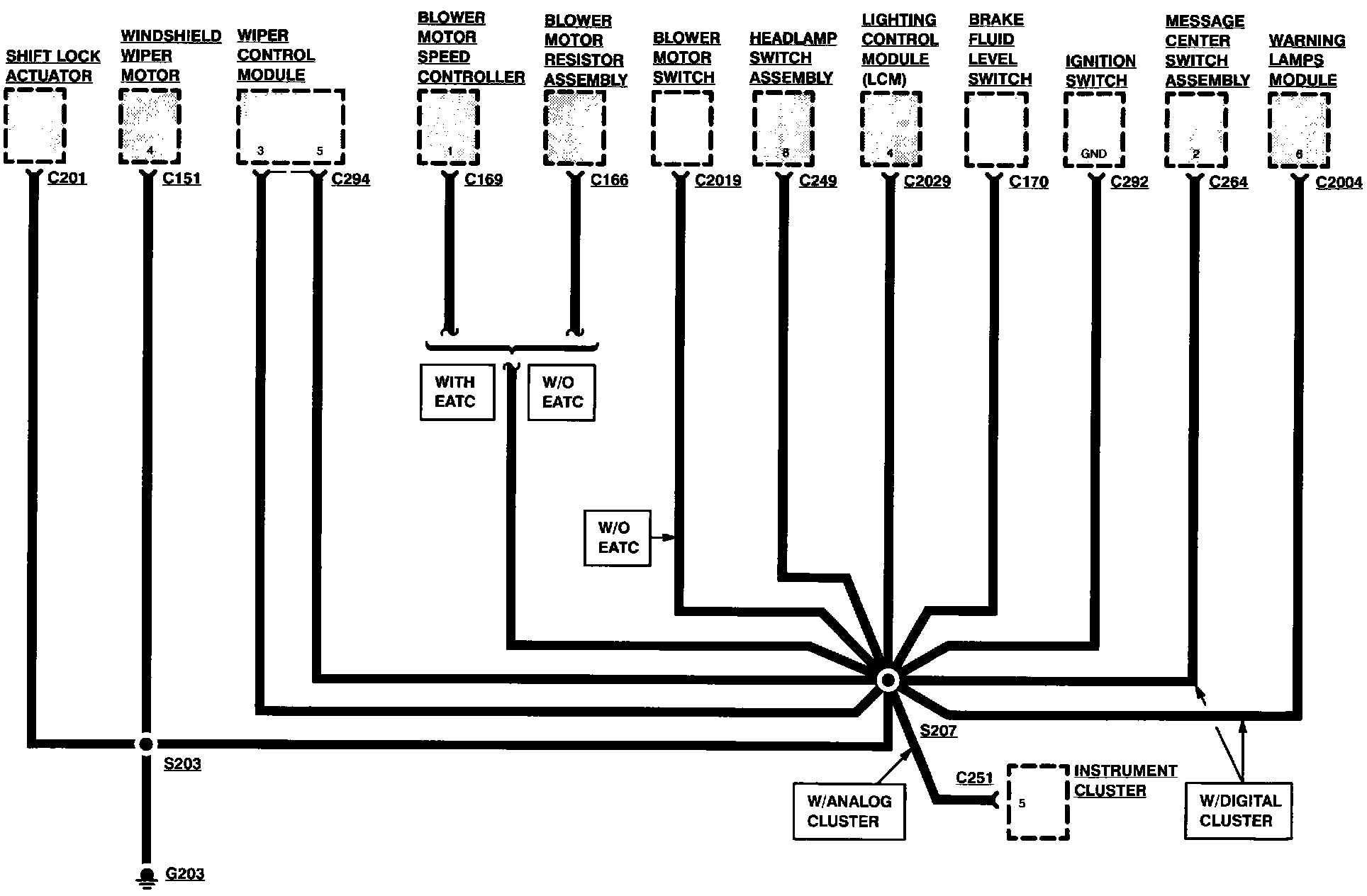

Grounds (G203):

Blower Motor Resistor Assembly
Blower Motor Speed Controller
Blower Motor Switch
Brake Fluid Level Switch
Headlamp Switch Assembly
Ignition Switch
Instrument Cluster
Light Control Module
Message Center Switch Assembly
Shift Lock Actuator
Warning Lamps Module
Windshield Wiper Motor
Wiper Control Module

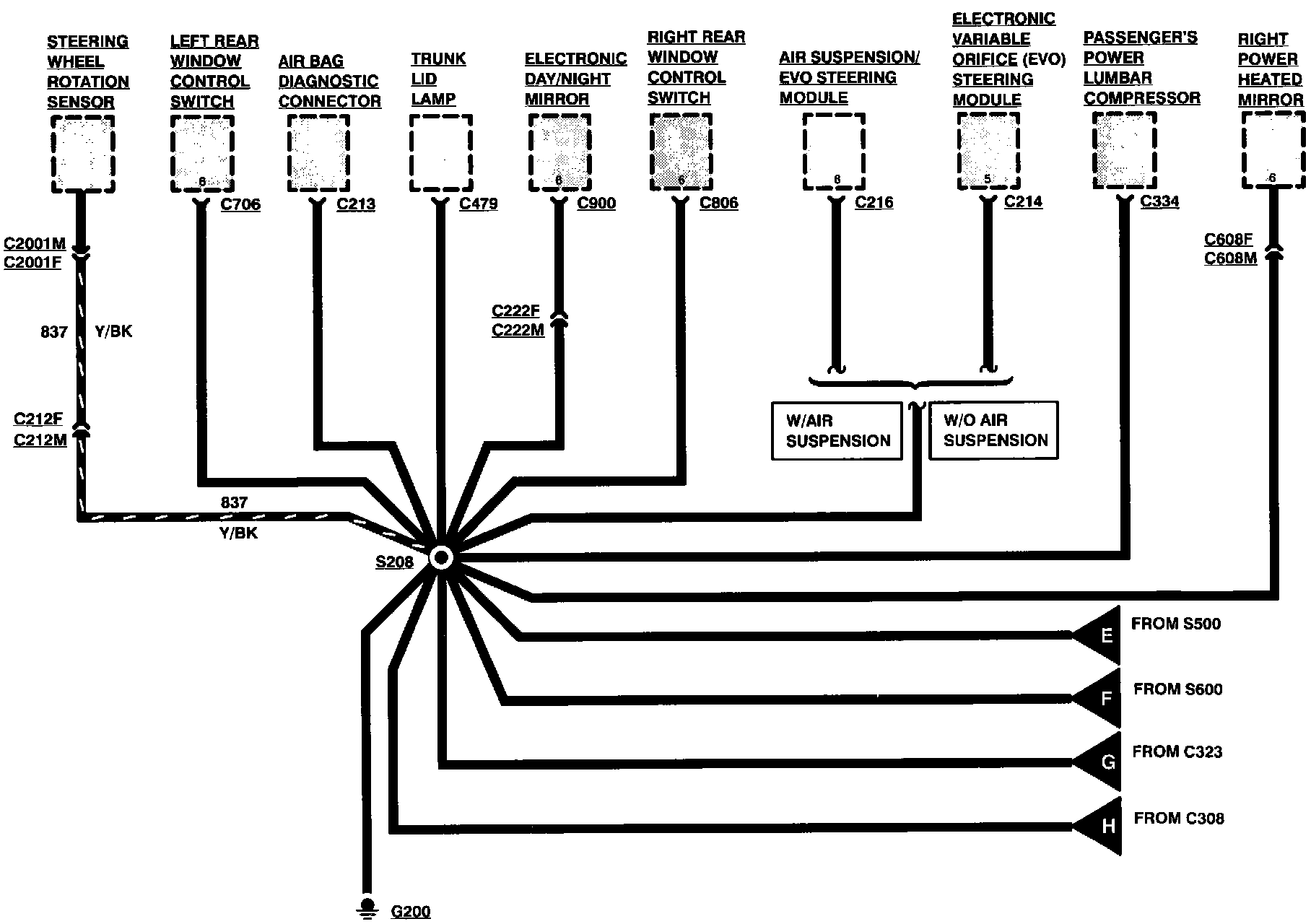

Grounds (G200):

Air Bag Diagnostic Connector
Air Suspension/Electronic Variable Orifice Steering Module
Electronic Day/Night Mirror
Electronic Variable Orifice Steering Module
Left Rear Window Control Switch
Passengers Power Lumbar Compressor
Right Power Heated Mirror
Right Rear Window Control Switch
Steering Wheel Rotation Sensor
Trunk Lid Lamp

Grounds (G200):

Driver's Door Module
Driver's Seat Control Switch
Left Lock Cylinder Lamp Left Front Door Courtesy Lamp
Left Power/Heated Mirror
Master Window/Door Lcok Control Switch
Memory Switch
One Touch Window Down Module
Power Mirror Switch
Remote Keyless Entry Switch
Trunk Lid Release Switch

Grounds (G200):

Passenger's Seat Control Switch
Right Front Door Courtesy Lamp
Right Front Door Latch Switch
Right Front Window/Door Lock Control Switch
Right Lock Cylinder Lamp
Right Power/Heated Mirror
Right Rear Door Latch Switch

Grounds (G200):

Dome Lamp
Driver's Power Lumbar Compressor
Driver's Seat Control Switch
Driver's Seat Module
Front Dome/Reading Lamp
Police Map Lamp Assembly
Rear Dome/Reading Lamp
Seat Belt Switch
Seat Switch

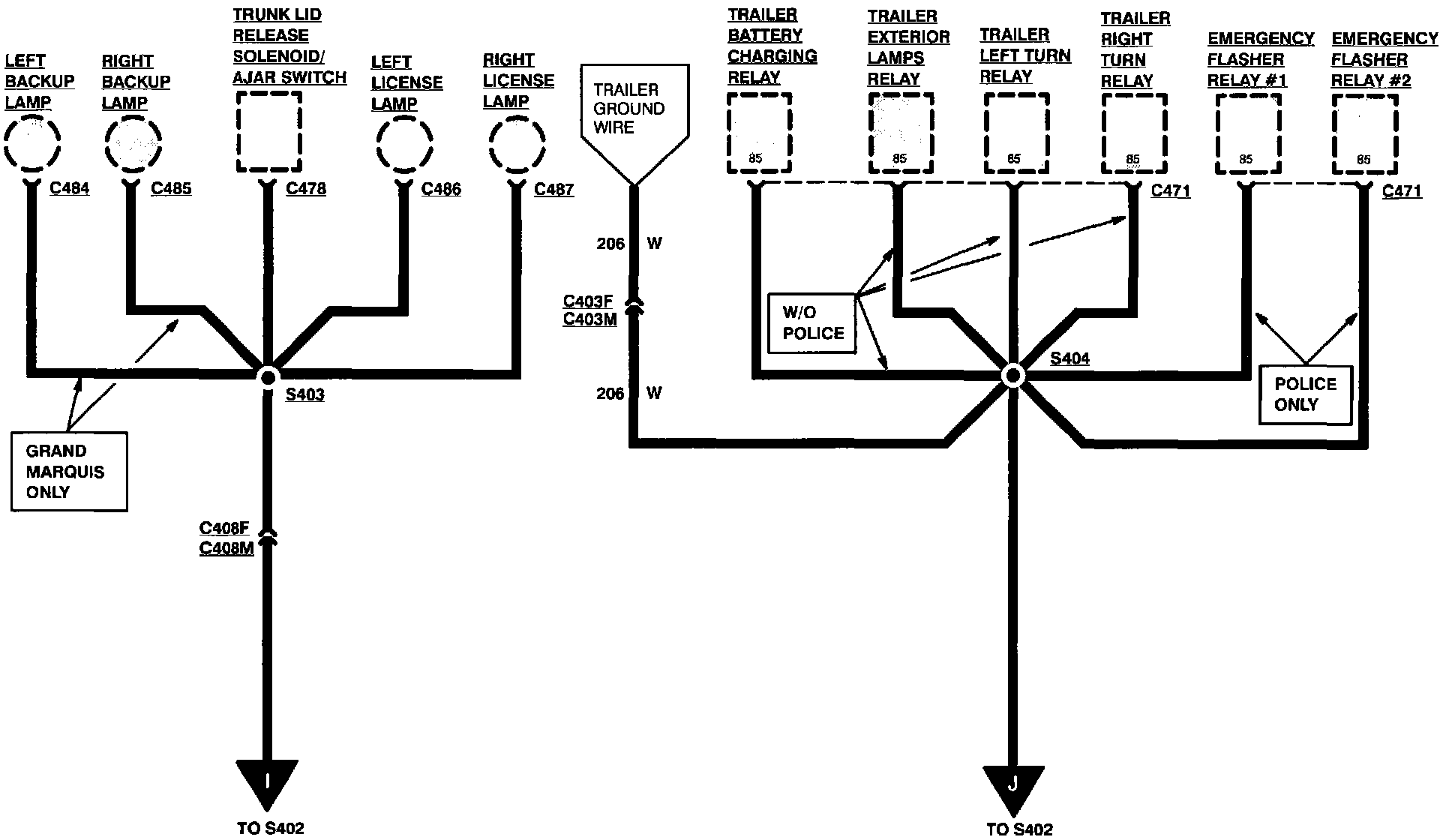

Grounds (G400):

Fuel Filler Door Release Solenoid
Fuel Tank Assembly
Fuel Tank Solenoid #3
Fuel Tank Solenoid #4
Left Backup Lamp
Left Rear Park/Stop/Turn Lamp
Left Rear Running Lamp
Righ Backup Lamp
Right Rear Park/Stop/Turn Lamp
Right Rear Running Lamp

Grounds (G400):

Emergency Flasher #1
Emergency Flasher #2
Left Backup Lamp
Left License Lamp
Right Backup Lamp
Right License Lamp
Trailer Battery Charging Relay
Trailer Exterior Lamps
Trailer Right Turn Relay
Trailer Trailer Left Turn Relay
Trunk Lid Release Solenoid/Ajar Switch

Grounds (G400):

Fuel Tank Solenoid #1
Fuel Tank Solenoid #2

Grounds (G402):

CD Changer
Front Control Unit
Rear Chassis Unit
Subwoofer Amplifier
