Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Fluid Pan, CVT
Fluid Pan, CVT

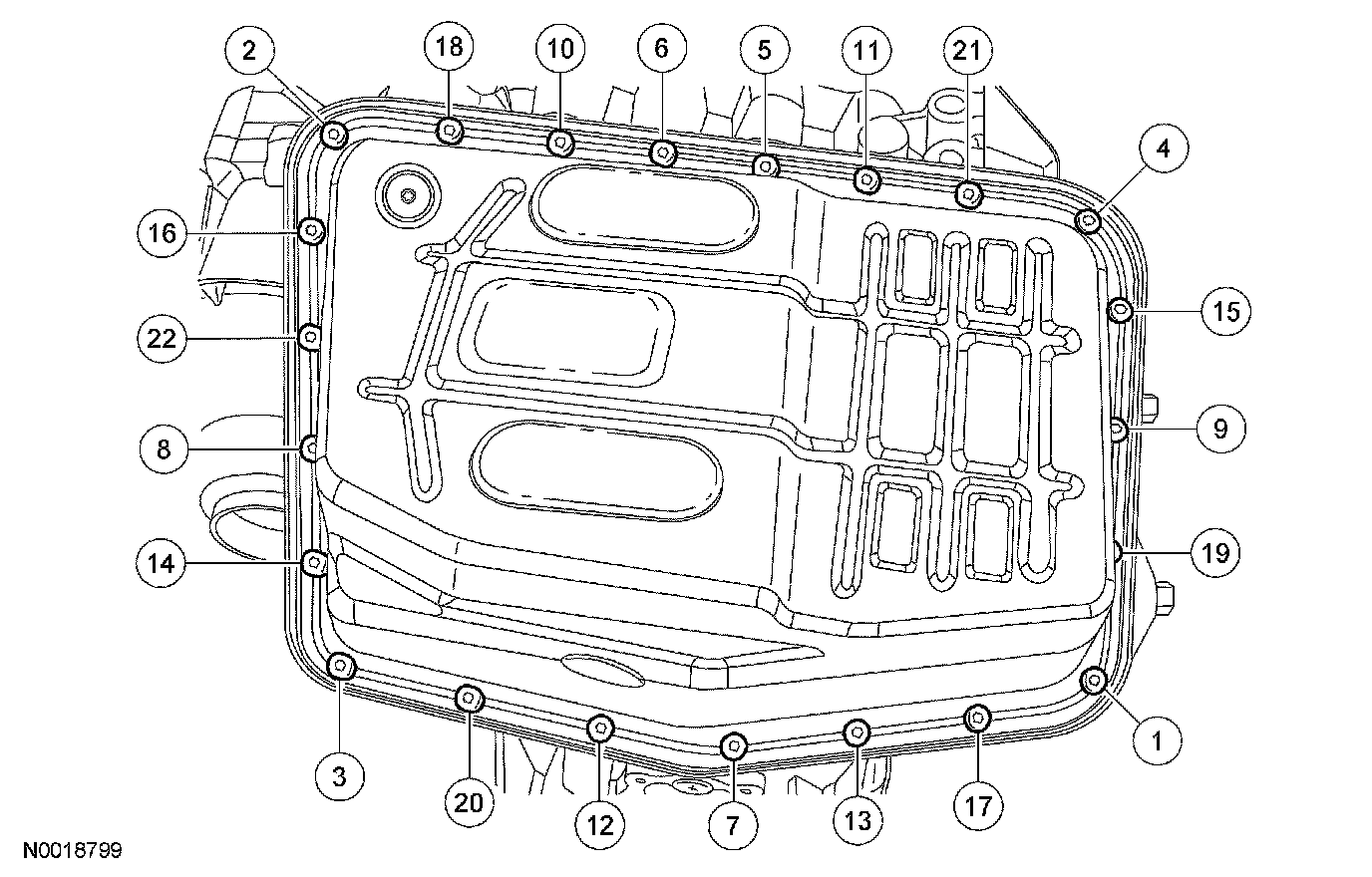

fluid pan and the bolts. Tighten in the sequence shown.
^
Tighten to
12 Nm (9 ft. lbs.).
