Drive Belt

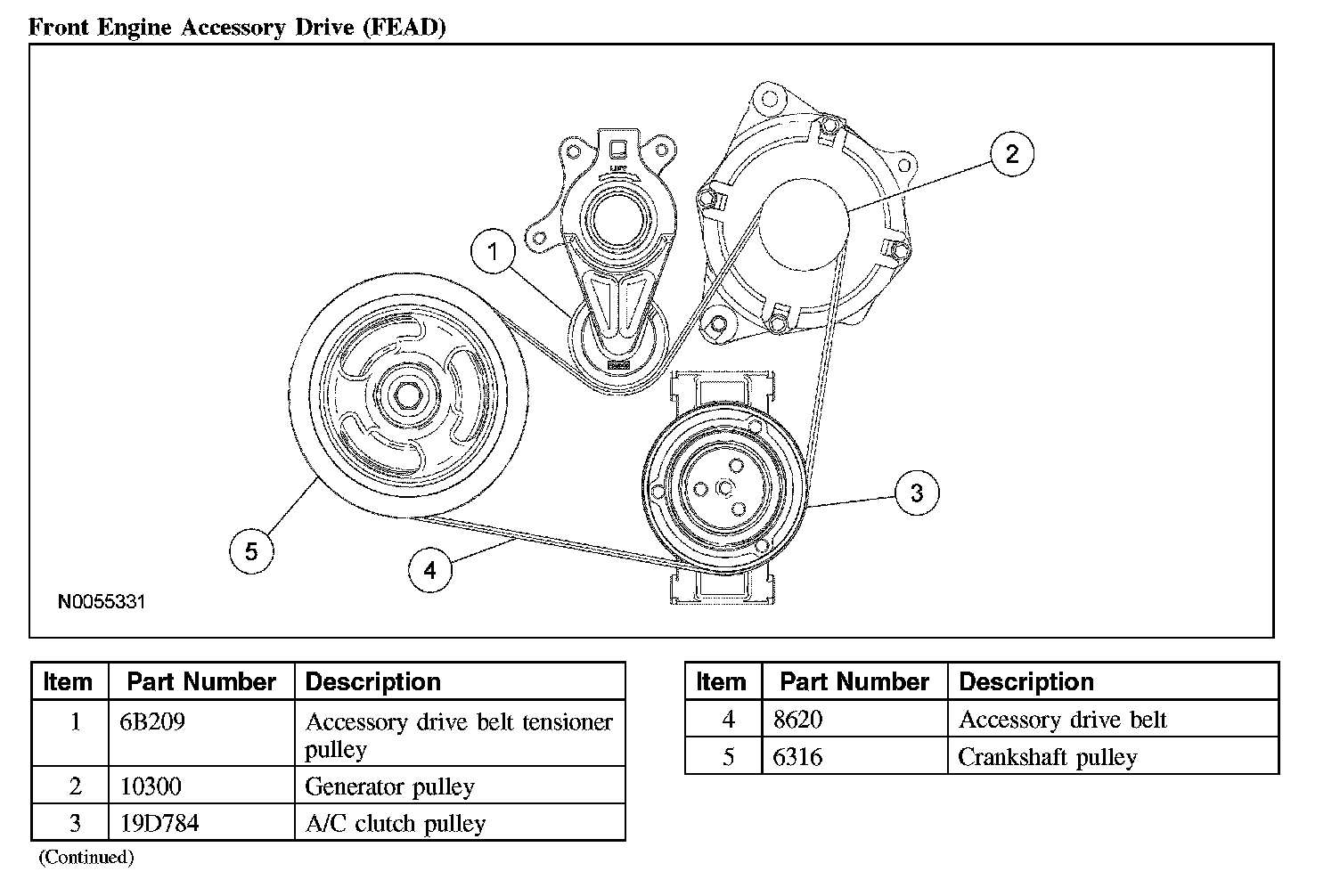

Front Engine Accessory Drive (FEAD)

Front Engine Accessory Drive (FEAD):

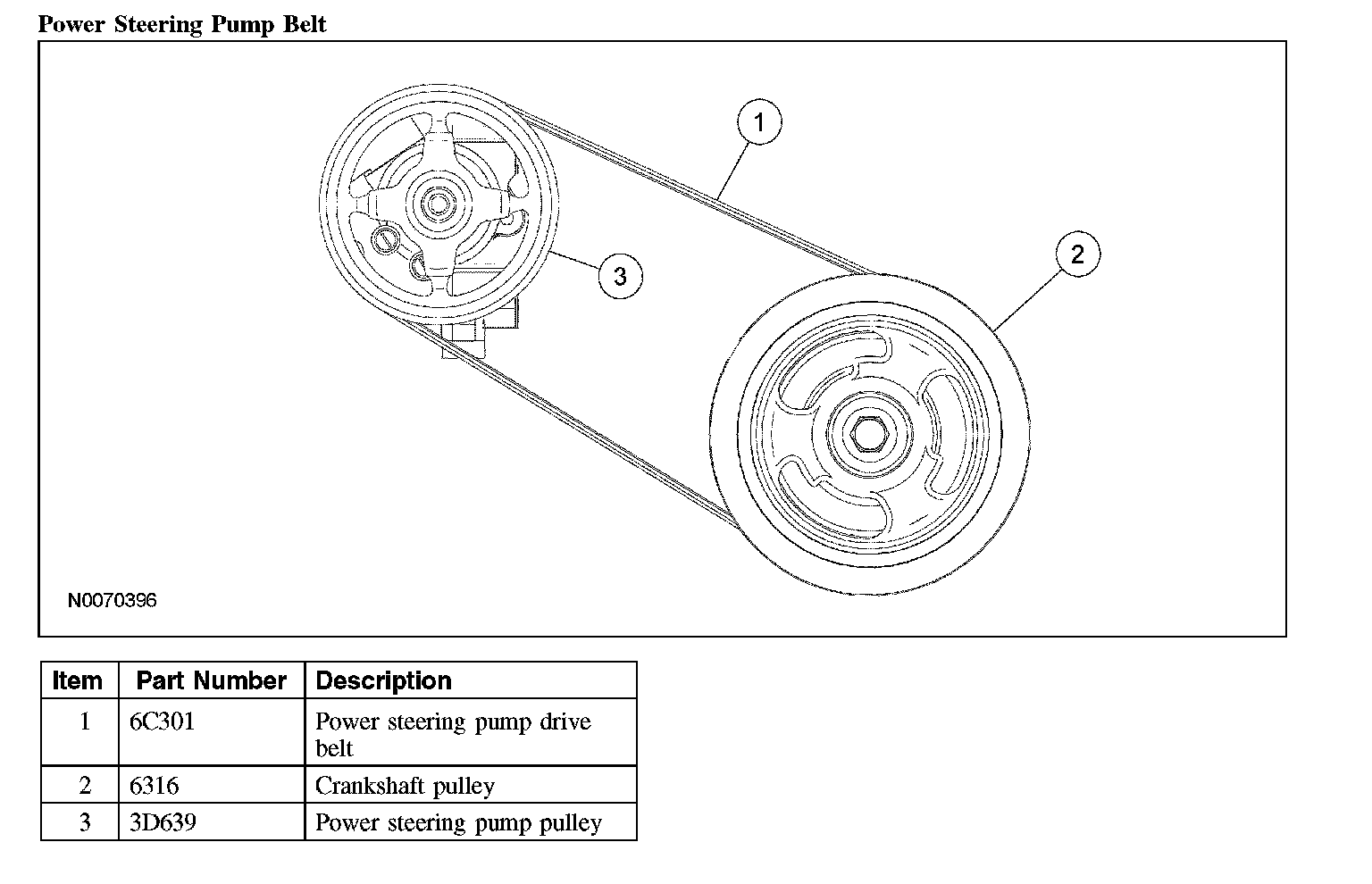

Power Steering Pump Belt

Power Steering Pump Belt:
