Ultrasonic Sensor: Service and Repair

Removing And Installing/Replacing Ultrasound Module

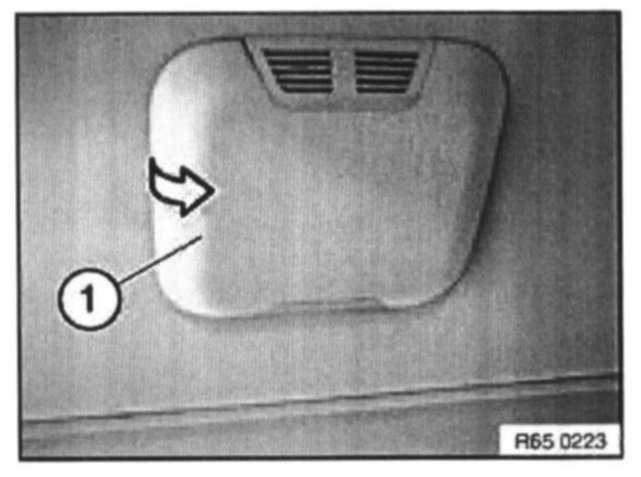

Remove ultrasound module housing (1) and disconnect multiplug.







Replacement:
Lever out retaining clips (1) and remove ultrasound module (2).
