Front Door Window Regulator: Service and Repair

51 33 000 Removing and installing (replacing) power window unit in left or right front door







Necessary preliminary tasks:
- Remove flat motor for power window
- Remove door trim panel carrier







Press down out catches (1) and feed out power window unit (2) from carrier (3).

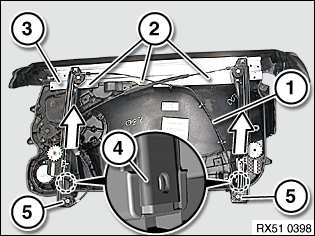

Release Bowden cable (1) from carrier.
Unfasten screws (2).
Feed out power window unit (5) with retaining plate (3) and bracket (4) in direction of arrow from carrier.

Installation:
Bracket (4) must be correctly seated in carrier.







Replacement:
Pull window cavity cover strip (1) off retaining plate (2).

Installation:
Coat window cavity cover strip (1) with water before fitting.
