Removing and Installing Engine

11 00 050 Removing and installing engine (N14)

Special tools required:







Necessary preliminary tasks:
- Remove exhaust system .
- Drain engine oil .
- Disconnect negative battery lead.
- Remove both output shafts .
- Remove air cleaner housing .
- Detach all coolant hoses from engine.
- Detach vacuum line from brake booster.
- Unfasten engine wiring harness and lay to one side.
- Remove complete front panel

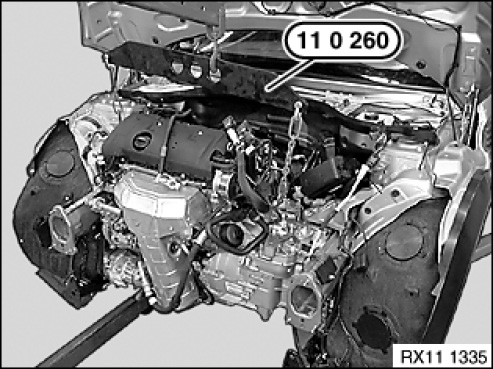

Attach special tool 11 0 260 to lifting eye (1) on engine.

NOTE: Pictures show N12.







Attach special tool 11 0 260 to lifting eye (1) at transmission end.

NOTE: Pictures show N12.







Remove engine with special tool 11 0 260 towards front.

NOTE: Pictures show N12.







Assemble engine.
Check function of DME.
