Flywheel: Service and Repair

11 22 500 Removing and installing or replacing flywheel (N18)

Special tools required:







Necessary preliminary work:
- Remove transmission.
- Remove clutch.







Lock flywheel with special tool 11 9 590.







Flywheel for automatic transmission.

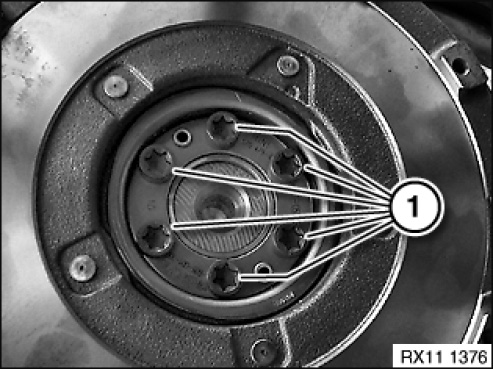

Release flywheel bolts (1).
Tightening torque: 11 22 1AZ.

Installation note:
Flywheel is secured with a dowel pin.
Fit new flywheel bolts.
Clean crankshaft thread for flywheel bolts.







Flywheel for manual gearbox.
Flywheel with and without dual-mass:
release flywheel bolts (1).
Tightening torque: 11 22 2AZ.

Installation note:
Flywheel is secured with a dowel pin.
Replace flywheel bolts (1).
Clean crankshaft thread for flywheel bolts.







Installation note:
Sensor gear (1) is loose on crankshaft and is first secured to flywheel.
Dowel pin (2) for securing sensor gear/flywheel.







Assemble engine.
