B2464

DTC B2464: The sticking of meter information switch

CAUTION:
Whenever the ECU is replaced, ensure that the communication circuit is normal.










TROUBLE JUDGMENT

If the combination meter detects the meter information switch pressed state for 60 seconds or more continuously, DTC B2464 is stored.

TROUBLESHOOTING HINTS

- The meter information switch may be defective
- The combination meter may be defective
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector

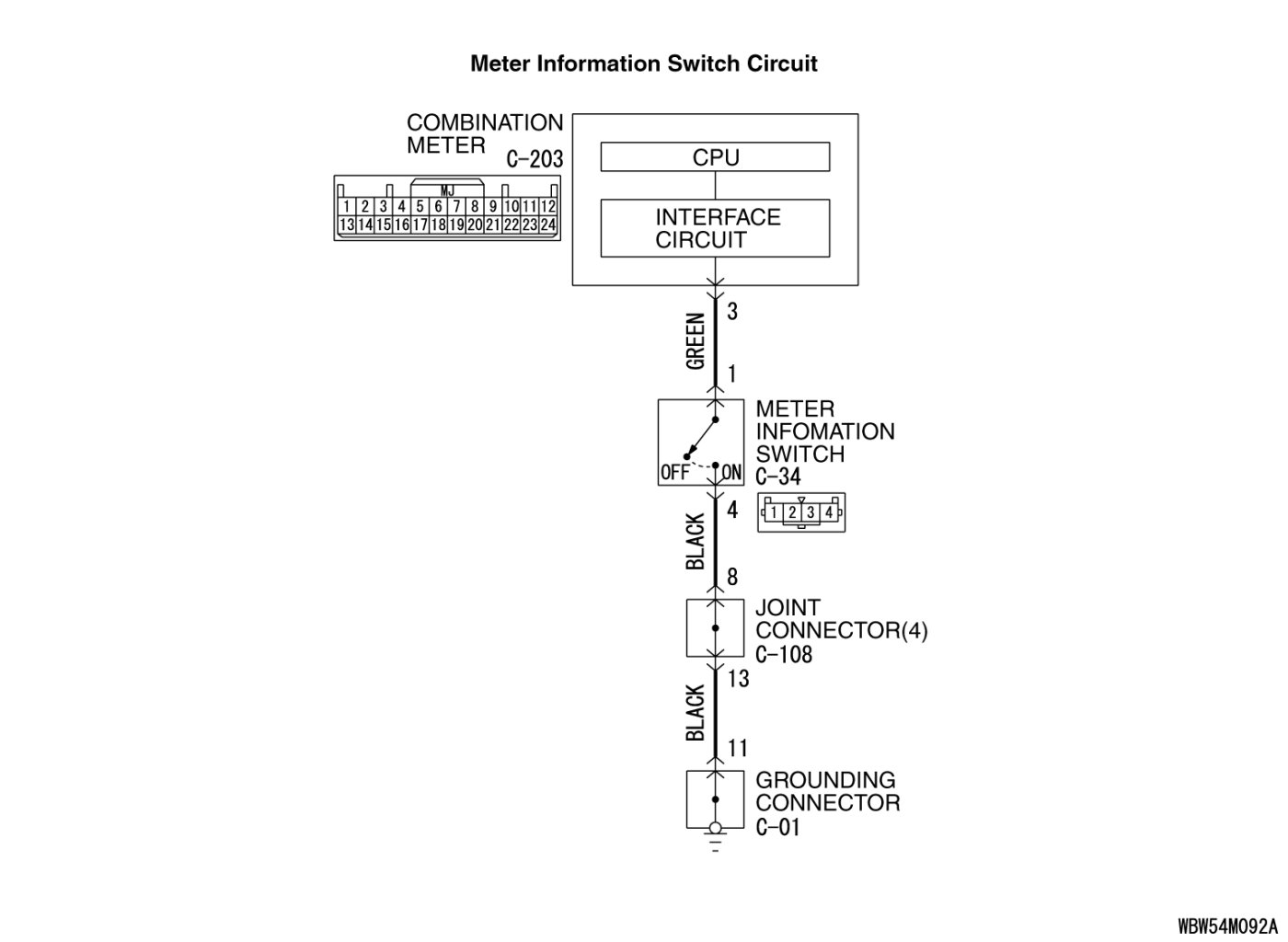

DIAGNOSIS

Required Special Tools:

- MB991223: Harness Set
- MB992006: Extra Fine Probe

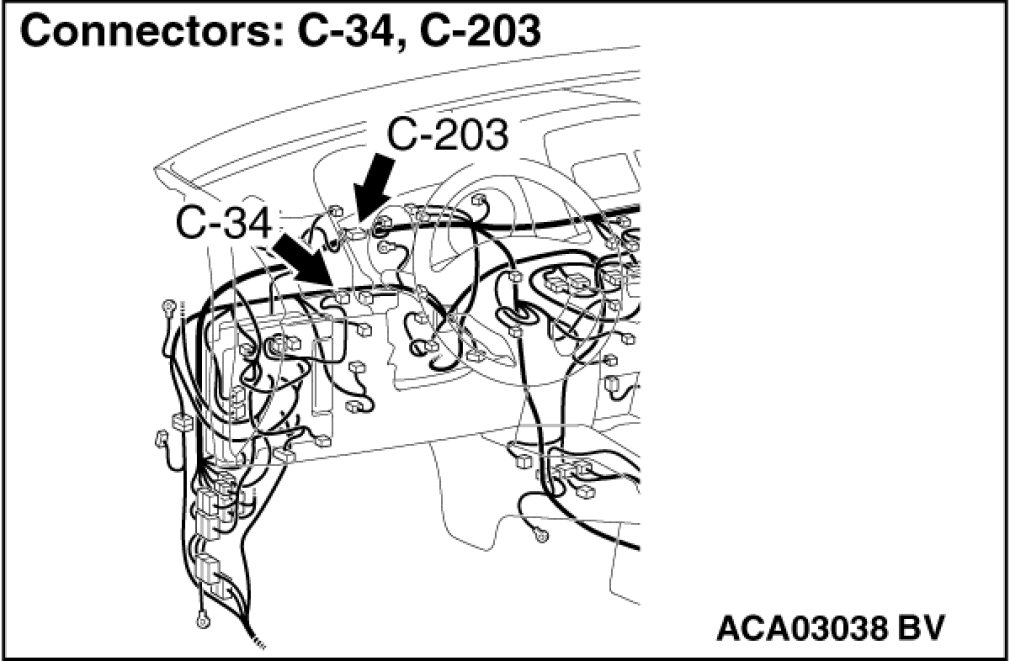

STEP 1. Check meter information switch connector C-34 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q. Is meter information switch connector C-34 in good condition?

YES Go to Step 2.
NO Repair the connector.
STEP 2. Check the meter information switch.

Check the meter information switch (Refer to Meter Information Switch Check).

Q. Is the check result normal?

YES Go to Step 3.
NO Replace the meter information switch.
STEP 3. Measure at meter information switch connector C-34 in order to the ground circuit to the meter information switch.

(1)Disconnect meter information switch connector C-34, and measure at the wiring harness side.





(2)Measure the resistance value between terminal 4 and ground.

- The measured value should be 2 ohm or less.

Q. Does the measured resistance value correspond with this range?

YES Go to Step 5.

NO Go to Step 4.

STEP 4. Check the wiring harness between meter information switch connector C-34 (terminal 4) and grounding connector C-01.

- Check the ground wire for open circuit.

NOTE:
Also check joint connector C-108. If joint connector C-108 are damaged, repair or replace the connector as described in Harness Connector Inspection Harness Connector Inspection.

Q. Is the wiring harness between fuel meter information switch connector C-34 (terminal 4) and grounding connector C-01 in good condition?

YES Go to Step 7.
NO Repair the wiring harness.
STEP 5. Check combination meter connector C-203 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

Q. Is combination meter connector C-203 in good condition?

YES Go to Step 6.
NO Repair the connector.
STEP 6. Check the wiring harness between meter information switch connector C-34 (terminal 1) and combination meter connector C-203 (terminal 3).

- Check the communication line for open circuit and short circuit.

Q. Are the wiring harness between meter information switch connector C-34 (terminal 1) and combination meter connector C-203 (terminal 3) in good condition?

YES Go to Step 7.
NO Repair the wiring harness.
STEP 7. Recheck for diagnostic trouble code.

Check again if the DTC is set to the combination meter.

(1)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958. Refer to "How to connect the Scan Tool (M.U.T.-III) Reading and Clearing Diagnostic Trouble Codes."

(2)Turn the ignition switch to the "ON" position.

(3)Erase the DTC.

(4)Turn the ignition switch from "LOCK" (OFF) position to "ON" position.

(5)Check if DTC is set.

Q. Is the DTC set?

YES Go to Step 1.
NO The procedure is complete.
