Component Tests and General Diagnostics

INSPECTION

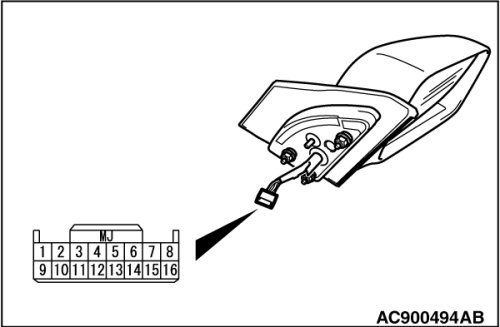

DOOR MIRROR ASSEMBLY OPERATION CHECK

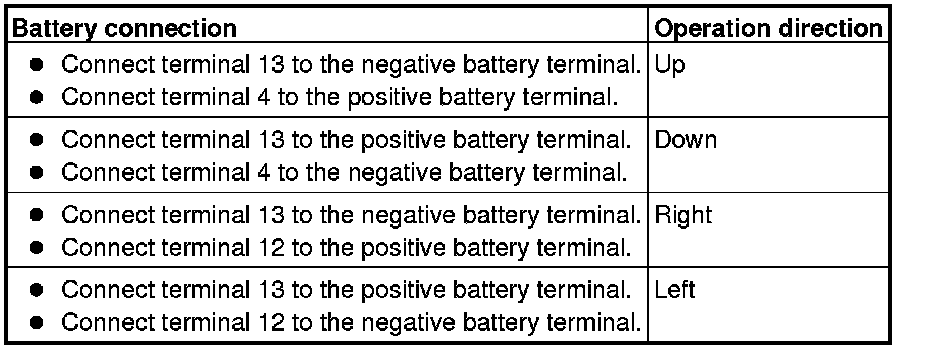

Remove the door trim, and then connect the battery to the door mirror assembly connector to check that the door mirror operates.

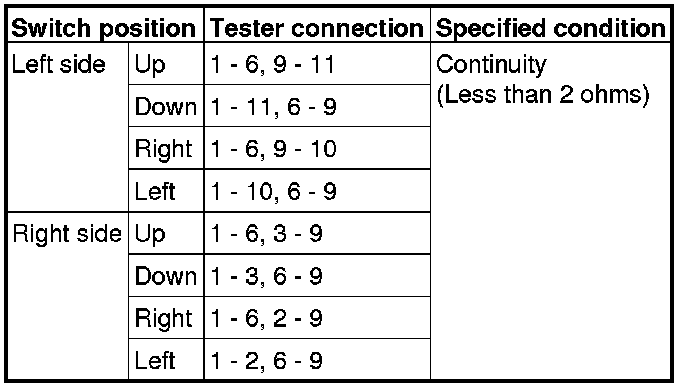

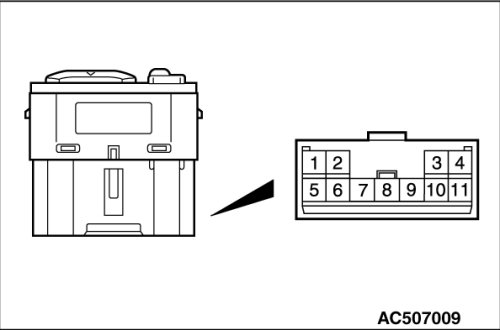

REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK

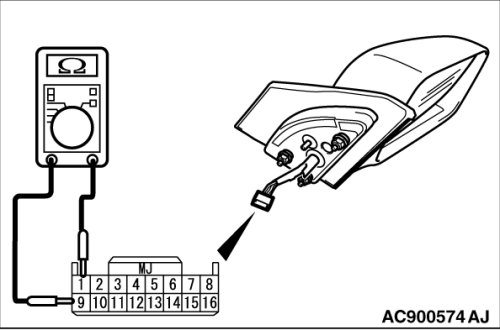

HEATED DOOR MIRROR CHECK

CAUTION:
When relocating the car between locations with extremely different temperatures
(warm and cold), leave the car in the location for a while to adapt to the temperature prior to checking it.





Check that the resistance value between the connector terminals is at the standard value.
Standard value: 7.2± 1.4ohms at 25°C (77°F)
