C-01 to C-38

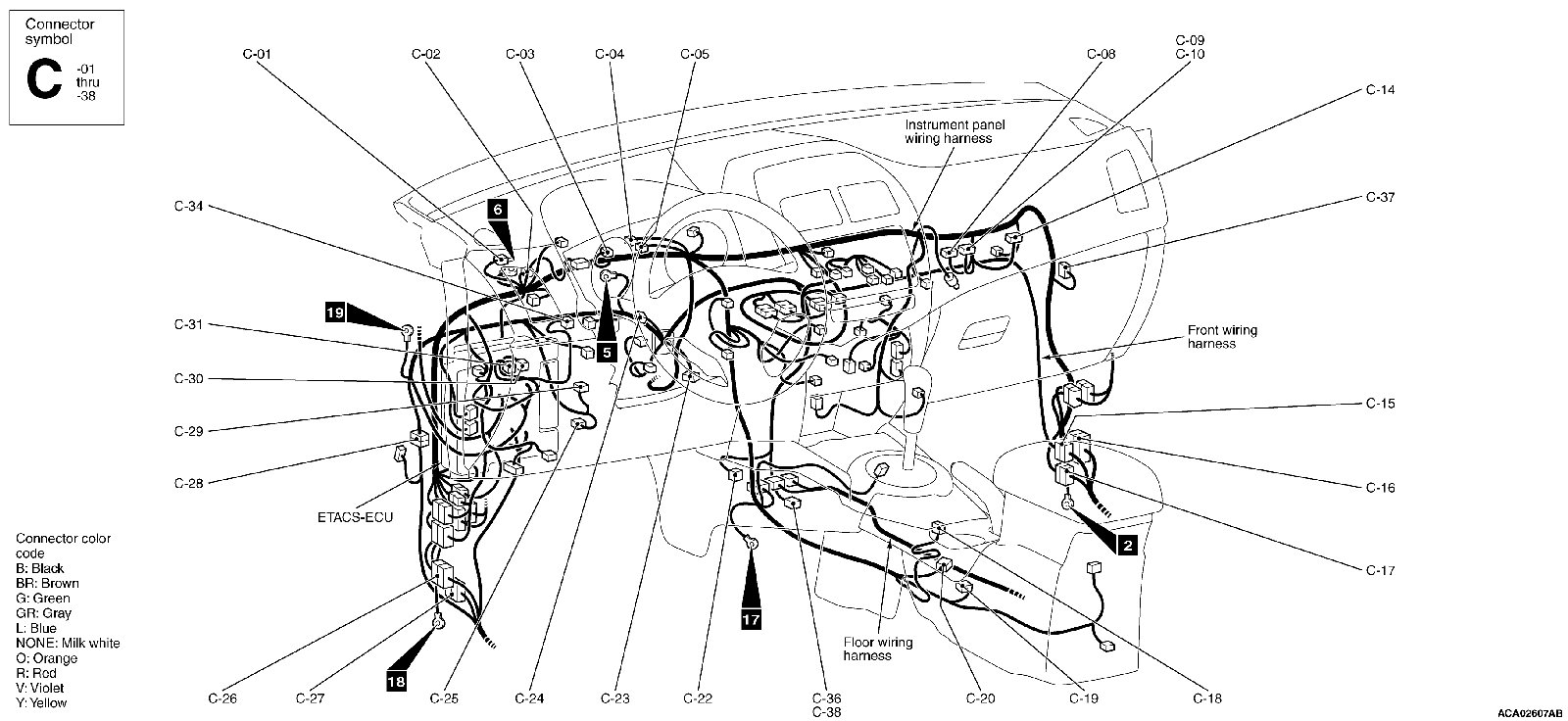

DASH PANEL





C-01 (11) Grounding connector
C-02 (8) LIN cut off control unit [Vehicles with theft-alarm sensor]
C-03 (5) No connection
C-04 (22-GR) Joint connector (2)
C-05 (22-GR) Joint connector (CAN1)
C-08 (24) KOS-ECU
C-09 (16) Wireless control module [Vehicles without KOS]
C-10 (16) KOS-ECU
C-14 (32) OSS-ECU [Vehicles with KOS]
C-15 (20-GR) Front wiring harness and floor wiring harness combination
C-16 (18) Instrument panel wiring harness and floor wiring harness combination
C-17 (22-L) Instrument panel wiring harness and floor wiring harness combination
C-18 (5) Drive mode selector [AWD]
C-19 (5) Inside transmission antenna assembly (front) [Vehicles with KOS]
C-20 (10) Selector lever assembly [CVT]
C-22 (4-B) G and yaw rate sensor
C-23 (6-B) Accelerator pedal position sensor
C-24 (22-GR) Joint connector (CAN3)
C-25 (4) Stoplight switch
C-26 (18) Instrument panel wiring harness and floor wiring harness combination
C-27 (22-L) Instrument panel wiring harness and floor wiring harness combination
C-28 (25) Front wiring harness and floor wiring harness combination
C-29 (8-B) Stoplight relay
C-30 (6) ASC off switch
C-31 (6-GR) Headlamp leveling switch
C-34 (4) Meter information switch
C-36 (4-B) Heated oxygen sensor (rear) [Vehicles for California emission regulation]
C-37 (14) Satellite radio tuner
C-38 (6-B) Linear air-fuel ratio sensor [Except vehicles for California emission regulation]
