Condenser HVAC: Service and Repair

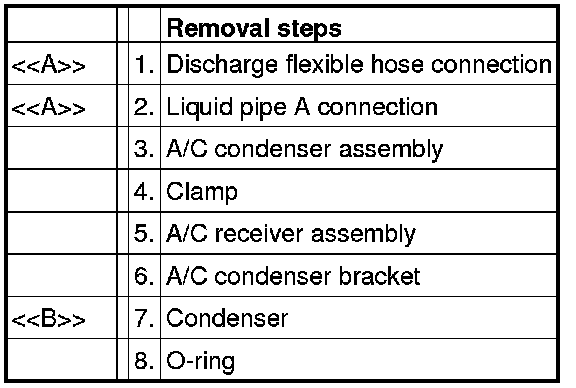

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] DISCHARGE FLEXIBLE HOSE/LIQUID PIPE A DISCONNECTION

CAUTION:
Use the plug which is not breathable because A/C compressor oil or receiver have high hygroscopicity.

Plug the removed nipple of the pipe, hose and condenser to prevent the entry of dust and dirt.

[[B]] CONDENSER REMOVAL

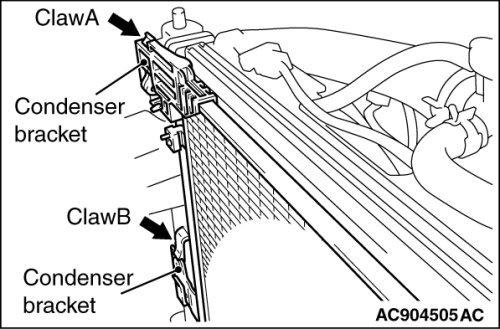

1. Lift the condenser while pressing the claw B, and disengage it.
2. While pressing the claw A, lift and remove the condenser.
