Timing Component Alignment Marks: Locations

TIMING CHAIN INSTALLATION

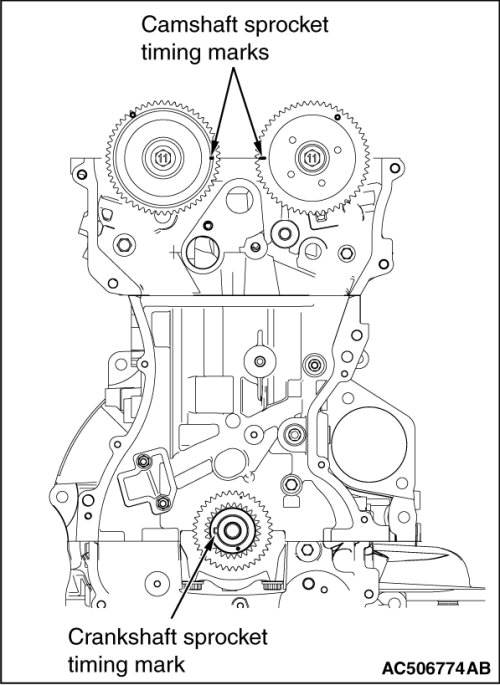

1. Set the timing marks of the camshaft sprockets and the crankshaft sprocket as shown in the figure.

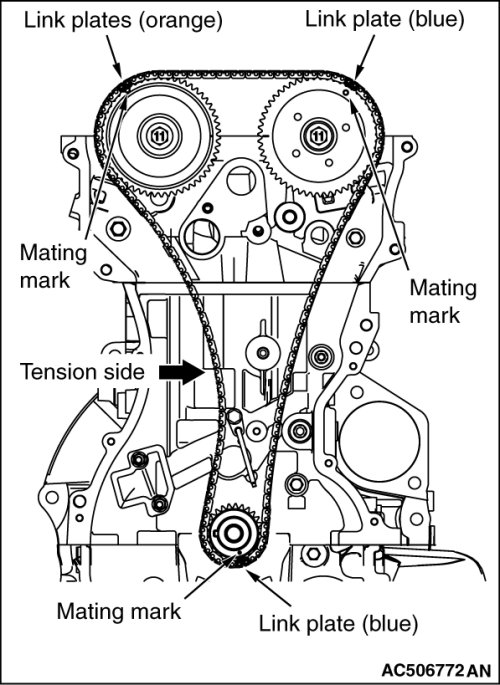

2. Align each sprocket timing chain mating mark with the link plate (orange and blue) of valve timing chain to avoid slack of the valve timing chain tension side, and install the valve timing chain to the sprockets.
