Axle Nut

Washer/Driveshaft Nut (Front and Rear)

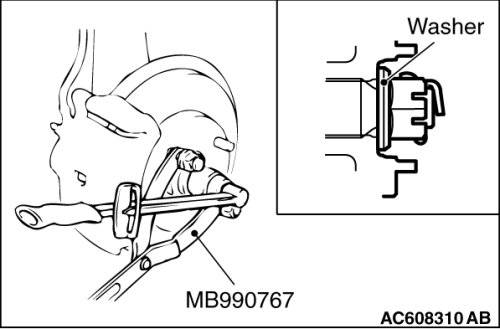

Be sure to install the driveshaft washer in the illustrated direction.
Tighten the driveshaft nut. At this time, tighten the nut to the specified lower limit torque so that the pin hole may align with cotter pin.

Tightening torque 144 - 176 Nm (107 - 129 ft-lb)

If the pin hole does not align with the pin, tighten the driveshaft nut [less than 176 Nm (129 ft-lb)] and find the nearest hole, then fit the cotter pin.
