Wiper Motor: Service and Repair

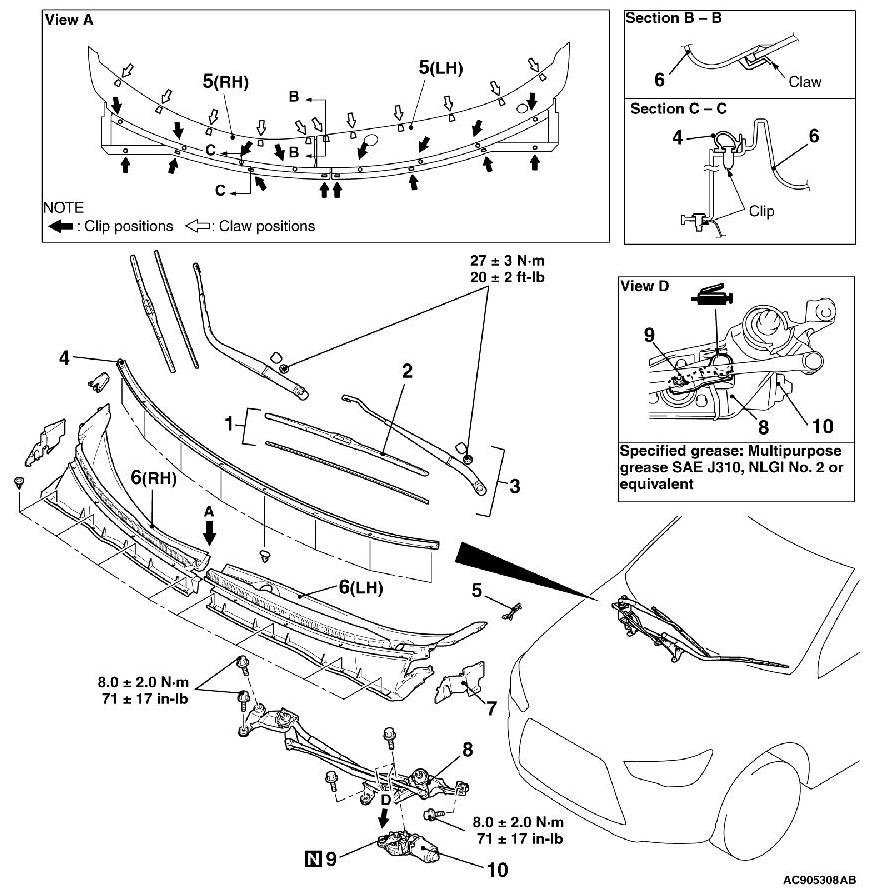

REMOVAL AND INSTALLATION









NOTE:
For removal and installation of the wiper and washer switch, refer to Column switch Service and Repair.

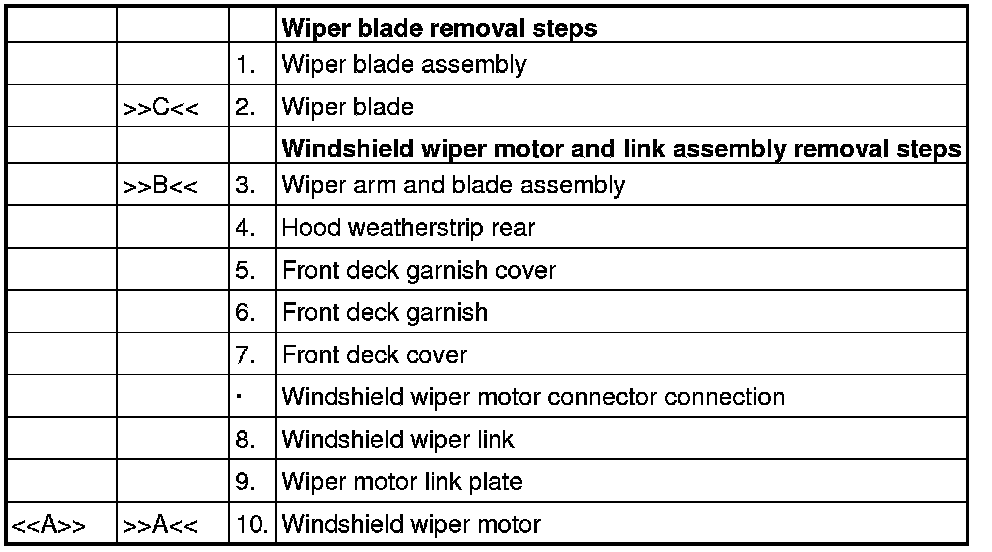

REMOVAL SERVICE POINT

[[A]]
WINDSHIELD WIPER MOTOR REMOVAL

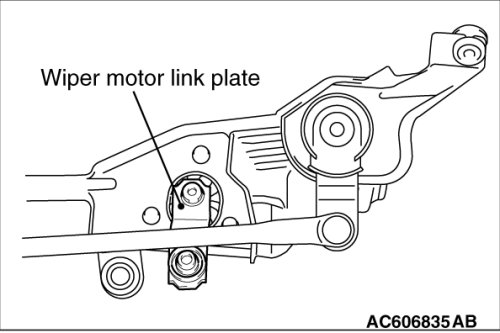

1. Remove the wiper link rod joint from the wiper motor link plate.

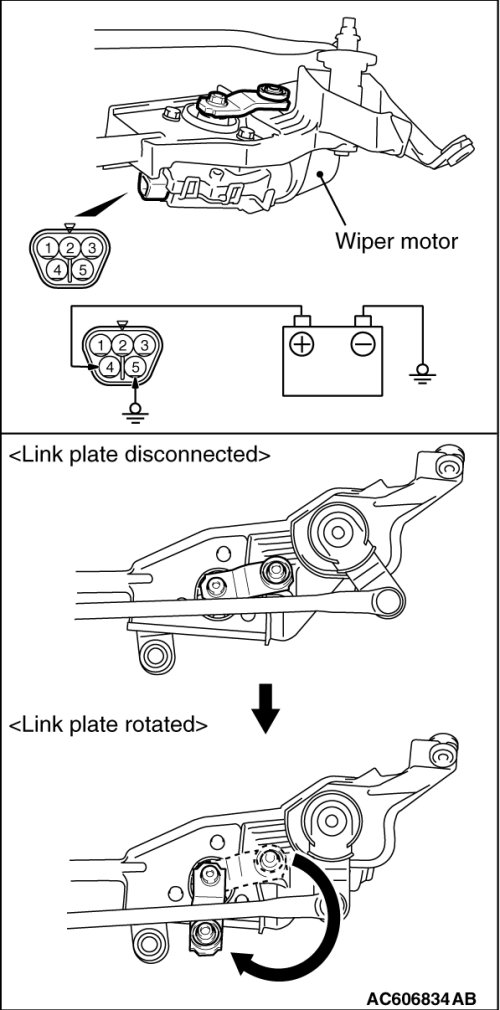

2. Connect the wiper motor to a battery, and rotate the link plate as shown.
3. In this position, withdraw the link plate from the wiper link assembly.

INSTALLATION SERVICE POINTS

]]A[[
WINDSHIELD WIPER MOTOR INSTALLATION





1. Position the wiper motor link plate as shown, and assemble it to the wiper link assembly.
NOTE:

- The link plate can be assembled to the wiper link assembly only at this position. If not, rotate the link plate to this position (Refer to Stop Position Check, Testing and Inspection ).
- Wiper motor replacement parts are supplied with the link plate positioned as shown.

2. Connect the assembled wiper motor to a battery, and set it to the automatic stop position
(Refer to Stop position check, Testing and Inspection).
3. Apply grease to the inside of link rod joint (as required) and connect the link rod to wiper motor link plate.

]]B[[
WIPER ARM AND BLADE ASSEMBLY INSTALLATION





Install the wiper arm and blade assembly at the specified positions.

(A):dia. 2 marking± 5 mm(0.2 in)


]]C[[
WIPER BLADE INSTALLATION





CAUTION:
Use a curved backing like that shown for the backing of a wiper blade to ensure sustained wiper wiping performance.
