Body/Frame - Body Repair Manual Revision

No: TSB-11-42B-001

DATE: January, 2012

MODEL: 2012 Outlander Sport

SUBJECT:

2012 MODEL UPDATES TO BODY REPAIR MANUAL -
SERVICE MANUAL REVISION

[TSB Revision: TSB-11-42B-001]

PURPOSE

Production changes to the side structure of affected vehicles requires updates to the 2011 Body Repair Manual. This TSB provides the new information.

AFFECTED VEHICLE

2012 Outlander Sport

AFFECTED BODY REPAIR MANUAL

2011 Outlander Sport Body Repair Manual page 1-15

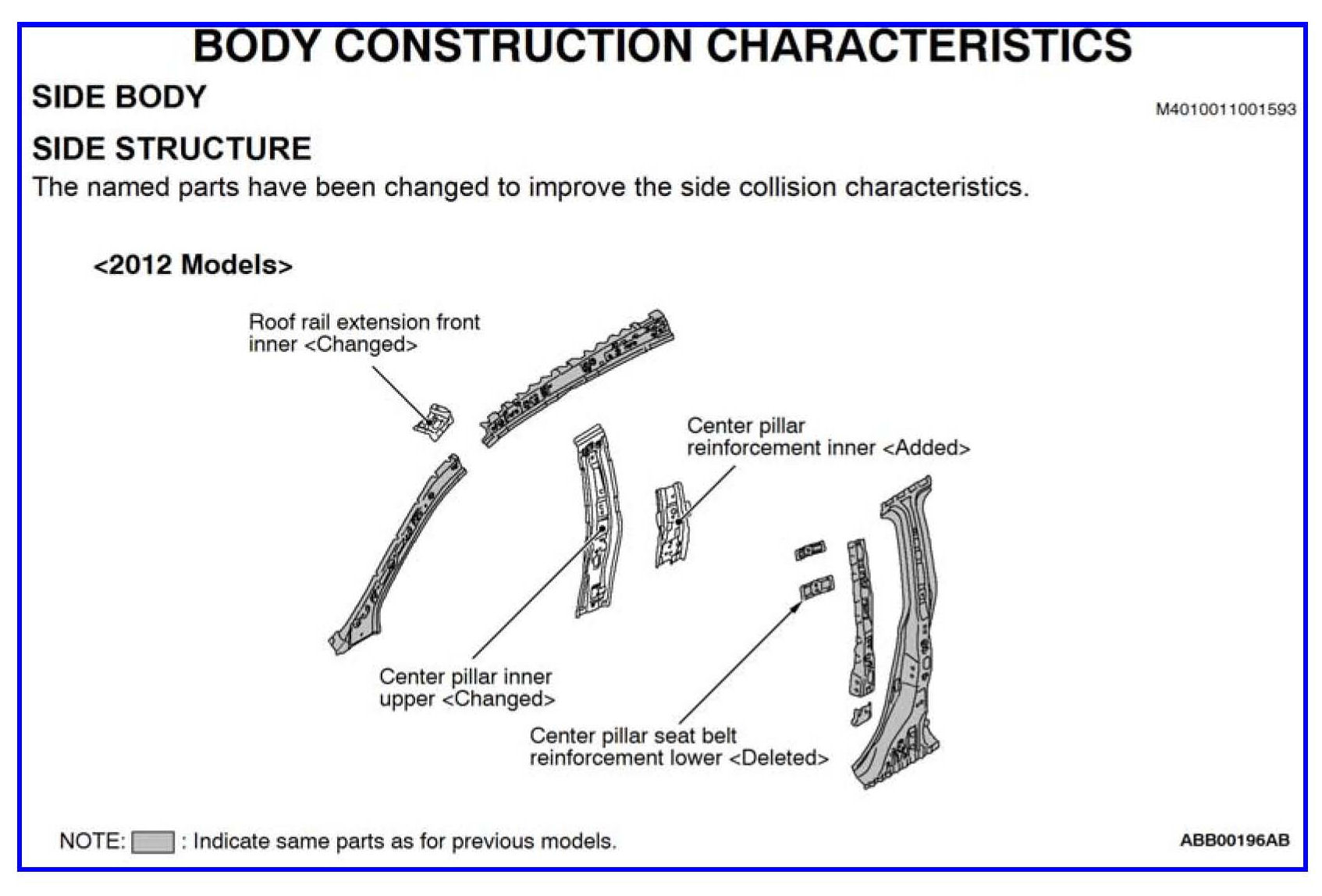

Insert the following into the 2011 Outlander Sport Body Repair Manual page 1-15
