Front Fender: Service and Repair

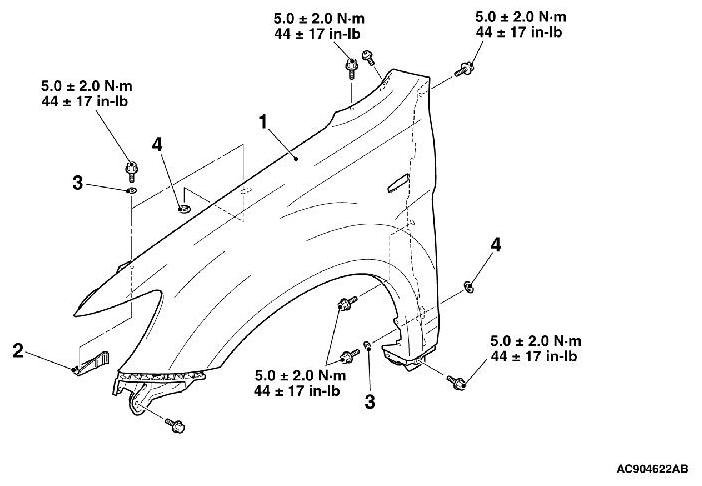

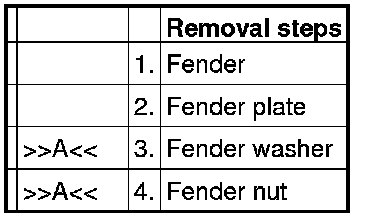

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINT

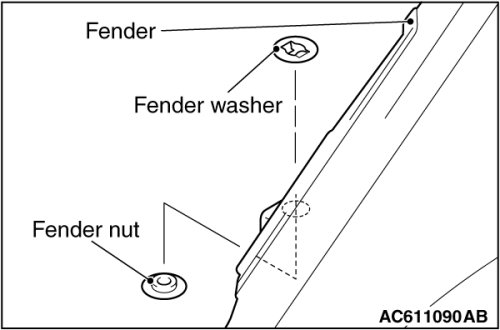

]]A[[ FENDER NUT/ FENDER WASHER INSTALLATION





1. Fit the fender nut to the fender.
2. Fit the fender washer to the fender and fender plate.
3. Install the bolts.
