License Plate Lamp: Service and Repair

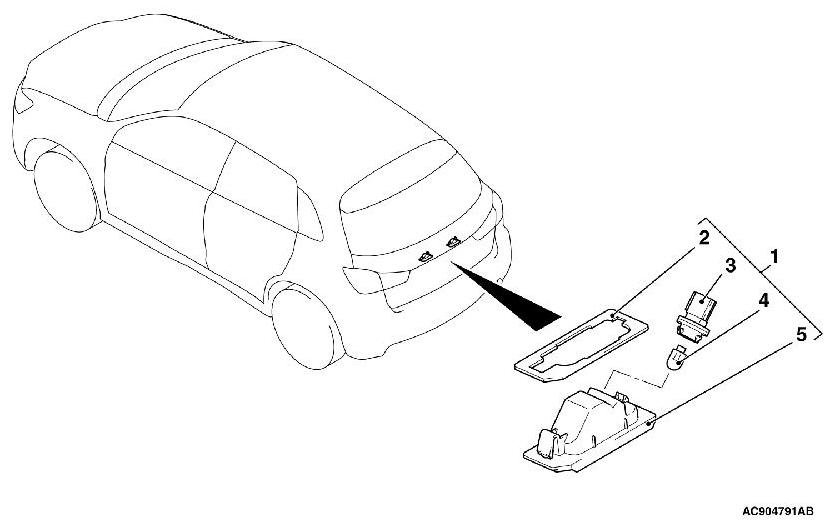

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

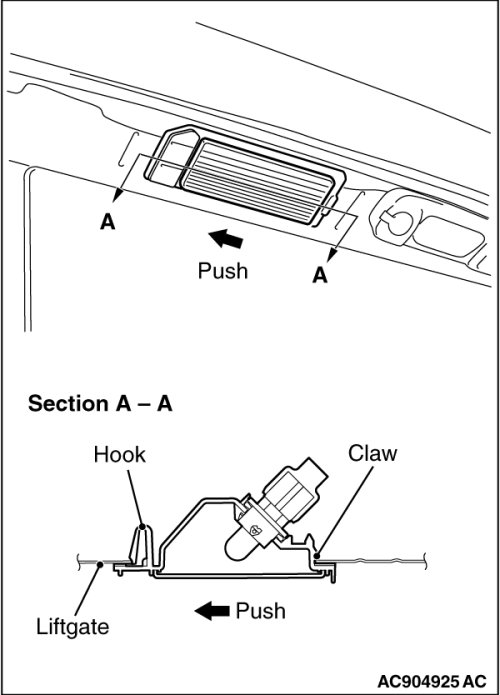

[[A]] LICENSE PLATE LIGHT ASSEMBLY REMOVAL





Push the license plate light assembly to the left to bend the hook, and then remove by disengaging the tab from the liftgate.
