Rear Suspension

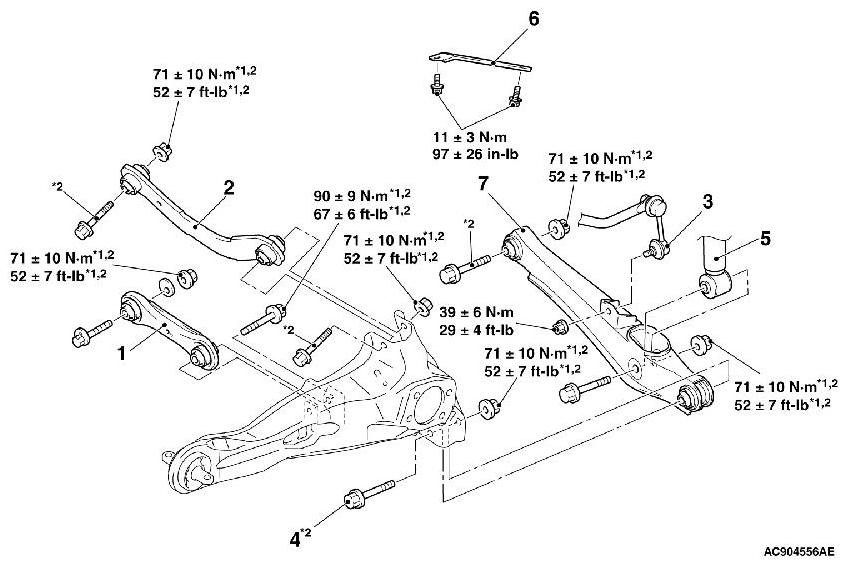

REMOVAL AND INSTALLATION

CAUTION:

- The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
- The parts indicated by *2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

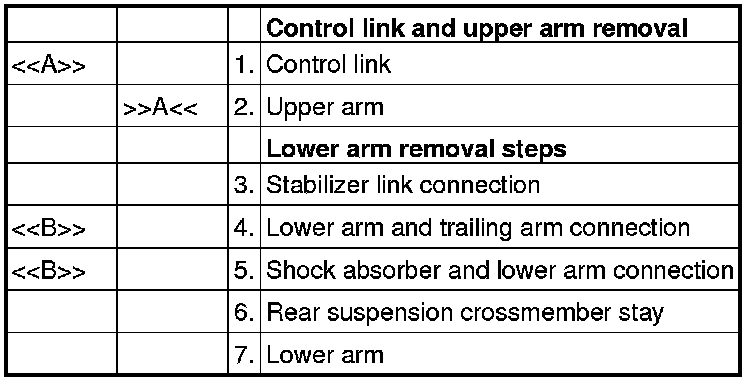

REMOVAL SERVICE POINTS

[[A]] CONTROL LINK REMOVAL

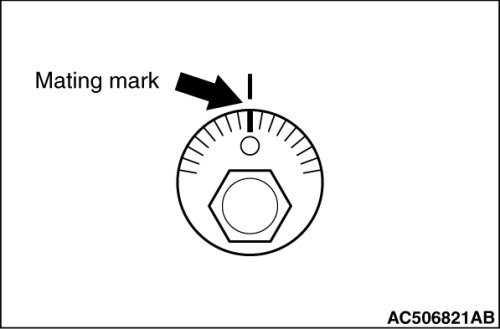

Make a mating mark on the toe adjusting bolt, and remove the control link.

[[B]] LOWER ARM AND TRAILING ARM CONNECTION/SHOCK ABSORBER AND LOWER ARM CONNECTION DISCONNECTION

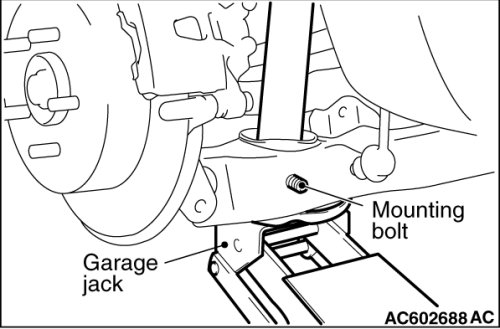

While jacking-up the lower arm with garage jack, remove the mounting bolts.

INSTALLATION SERVICE POINT

]]A[[ UPPER ARM INSTALLATION





Install the upper arm so that the hole faces the body side.
