A/C - Revised A/C Line Fitting Torque Specifications
No: TSB-13-55-002DATE: March, 2013
MODEL: 2011-13 Outlander Sport/RVR
SUBJECT:
TORQUE SPECIFICATION FOR A/C REFRIGERANT LINE FITTING - SERVICE MANUAL REVISION
PURPOSE
This TSB changes the unit of measure (from ft. lbs to in. lbs) for the refrigerant line fittings torque specification in the applicable manual.
AFFECTED VEHICLES
2011-2013 Outlander Sport/RVR
AFFECTED SERVICE MANUALS
2011 Outlander Sport/RVR Service Manual Group 55 - Heating, Air Conditioning and Ventilation > Refrigerant Line > Removal and Installation
2012 Outlander Sport/RVR Service Manual Group 55 - Heating, Air Conditioning and Ventilation > Refrigerant Line > Removal and Installation
2013 Outlander Sport/RVR Service Manual Group 55 - Heating Air Conditioning and Ventilation > Refrigerant Line > Removal and Installation

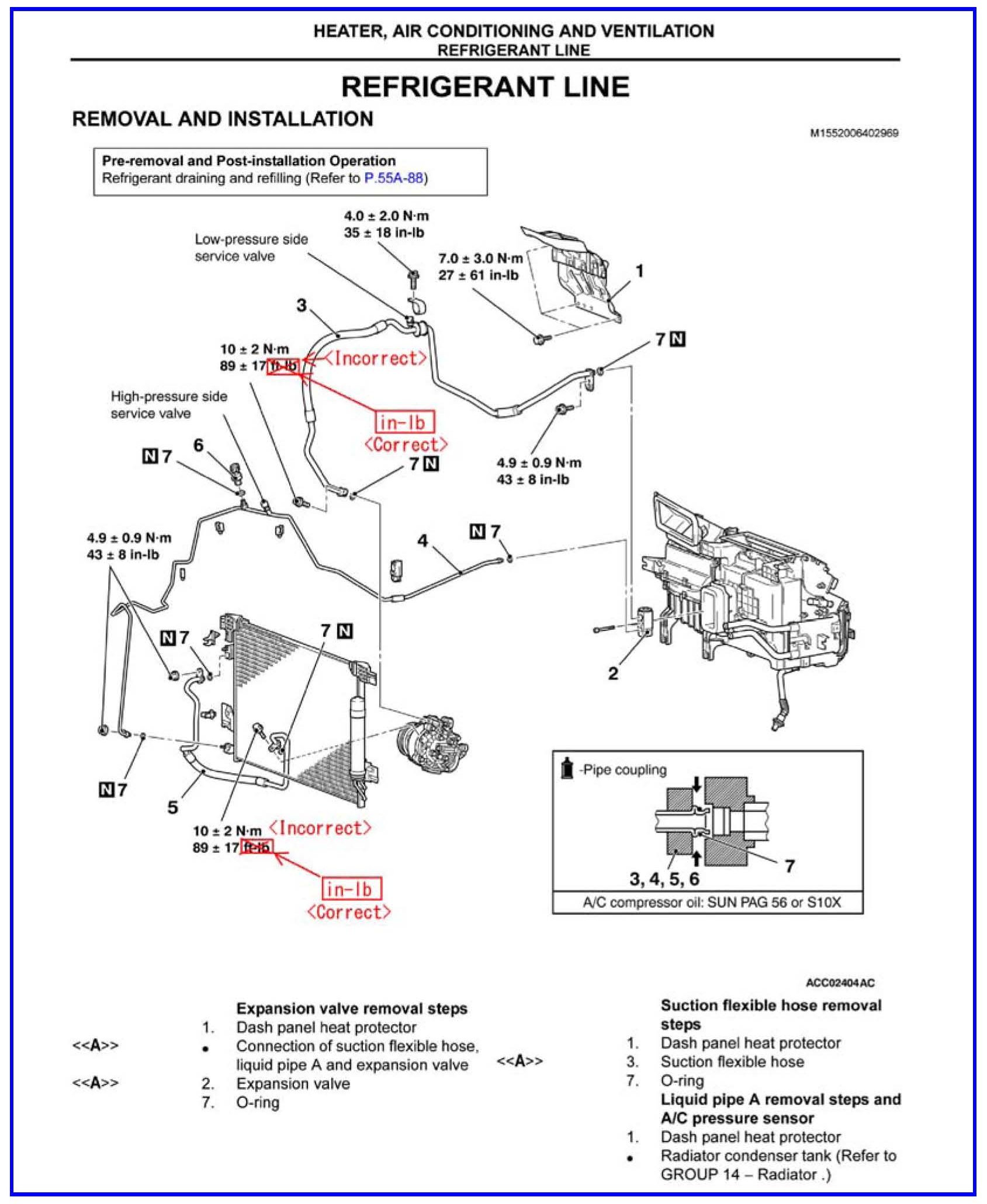

Please apply the changes from the following pages to 2011-2013 Outlander Sport/RVR Service Manuals: Group 55 - Heating, Air Conditioning and Ventilation > Refrigerant Line > Removal and Installation
