Ratio Pattern

GENERAL INFORMATION

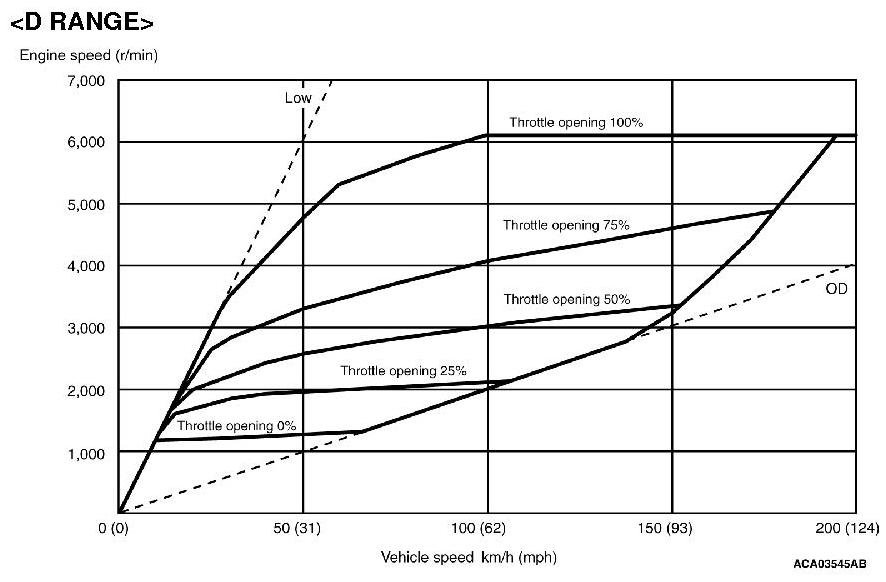

RATIO PATTERN





The shift change is performed in the entire shift range from the lowest to the highest pulley ratio.





When the sport mode is switched ON with the selector lever or paddle shift, the fixed shifting line is determined. The upshift/downshift operation enables to shift in steps according to the predetermined shifting line, providing M/T-like shifting. The 6-speed transmission which is suitable for sporty driving is adopted.

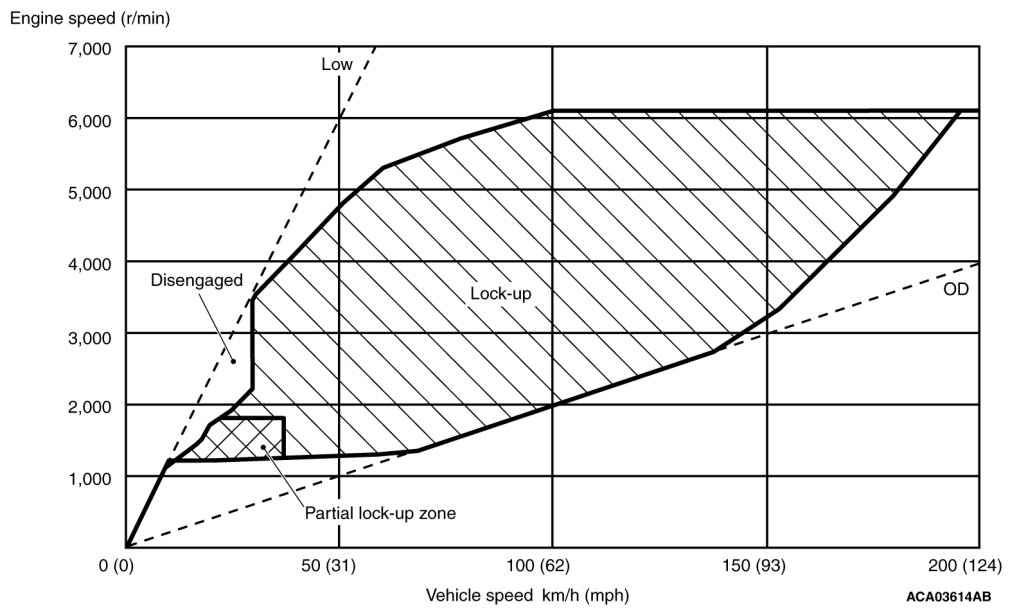

DIRECT CONTROL (TORQUE CONVERTER CLUTCH CONTROL)





By carefully controlling the direct operating pressure depending on the driving conditions, the shock-free direct operation from low speed has been achieved.
