Brakes - Revised Inspection Procedures
No: TSB-13-35-002DATE: February, 2013
MODEL: 2013 Outlander
SUBJECT:
UPDATED BRAKE INSPECTION PROCEDURES -
SERVICE MANUAL REVISION
PURPOSE
This TSB updates inspection procedures for "Brake Drag," "Scraping or Grinding Noise when Brakes are Applied" and "Squealing Noise when Brakes are not Applied" in the applicable service manual.
This TSB provides new information only.
AFFECTED VEHICLES
2013 Outlander Sport/RVR
AFFECTED SERVICE MANUALS
2013 Outlander Sport Service Manual Group 35 Service Brakes:
^ 35A - Basic Brake > Basic Brake System Diagnosis > Symptom Procedures > Inspection Procedure
4: Brake Drag
^ 35A - Basic Brake > Basic Brake System Diagnosis > Symptom Procedures > Inspection Procedure
5: Scraping or Grinding Noise when Brakes are Applied
^ 35A - Basic Brake > Basic Brake System Diagnosis > Symptom Procedures > Inspection Procedure
6: Squealing Noise when Brakes are not Applied

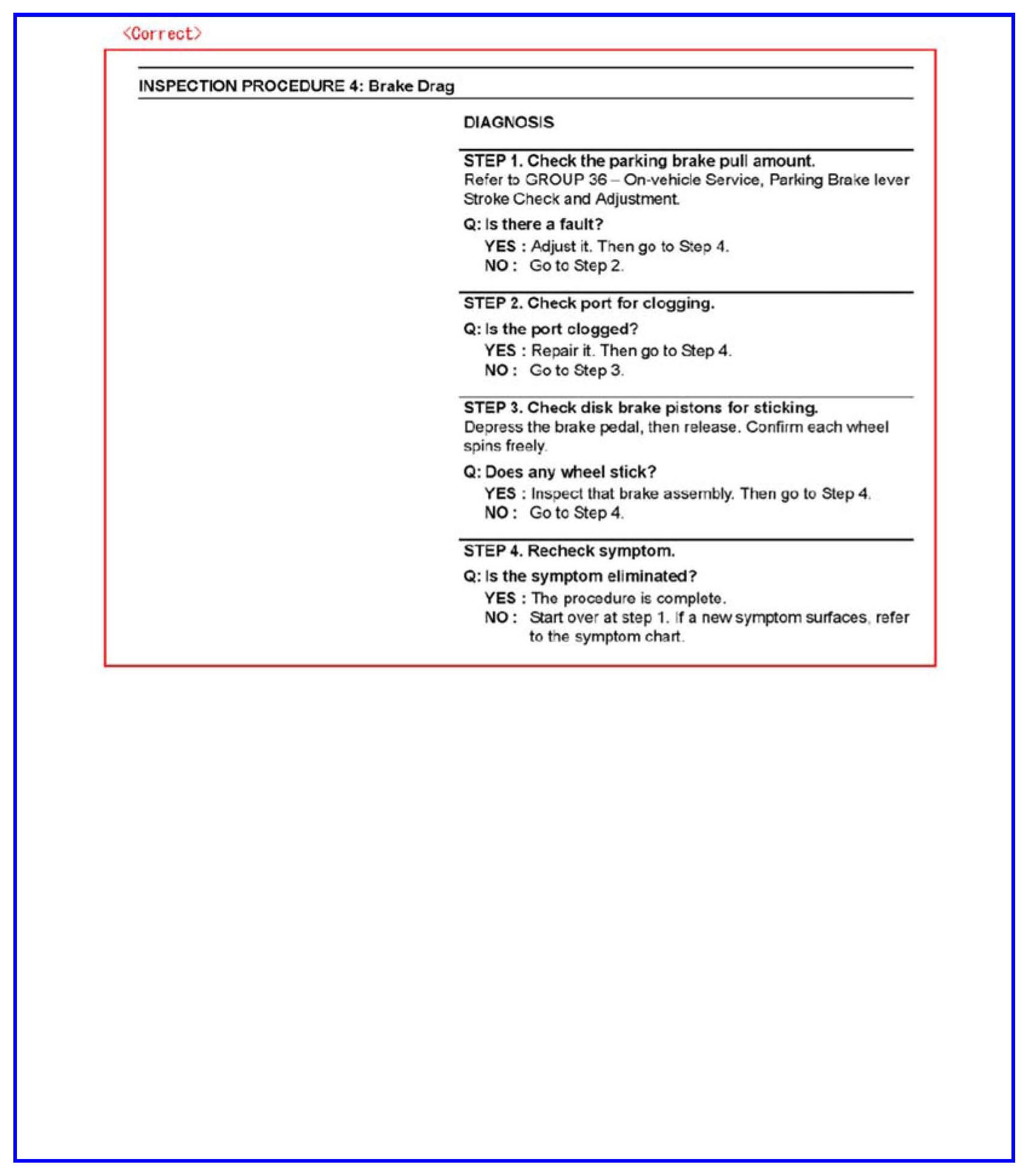

Replace 2013 Outlander Sport Service Manual Group 35 Service Brakes: > 35A - Basic Brake > Basic Brake System Diagnosis > Symptom Procedures > Inspection Procedure 4: Brake Drag with the illustration.
Replace 2013 Outlander Sport Service Manual Group 35 Service Brakes: > 35A - Basic Brake > Basic Brake System Diagnosis > Symptom Procedures > Inspection Procedure 5: Scraping or Grinding Noise when Brakes are Applied with the illustration.
Replace 2013 Outlander Sport Service Manual Group 35 Service Brakes: > 35A - Basic Brake > Basic Brake System Diagnosis > Symptom Procedures > Inspection Procedure 7: Squealing Noise when Brakes are not Applied with the illustration.
