Interior - Rattle Or Ticking From Glove Box
No: TSB-12-52A-003DATE: November, 2012
MODEL: 2013 Outlander
Sport/RVR
SUBJECT:
RATTLE OR TICKING NOISE FROM GLOVE BOX
PURPOSE
Customers of affected vehicles may report a rattle or ticking noise from the glove box area when travelling over railroad tracks, highway lane markers ("Botts dots") or rough road surfaces. This may be caused by contact between the glovebox and the dash. This TSB instructs technicians to remove the existing glovebox felt insulating strips and add a new felt strip in a different location to suppress the noise.
AFFECTED VEHICLES
2013 Outlander Sport/RVR built prior to September 4, 2012
REPAIR PROCEDURE
1. Remove existing felt strips from the indicated areas and discard them.
NOTE:
These felt strips will not be replaced.

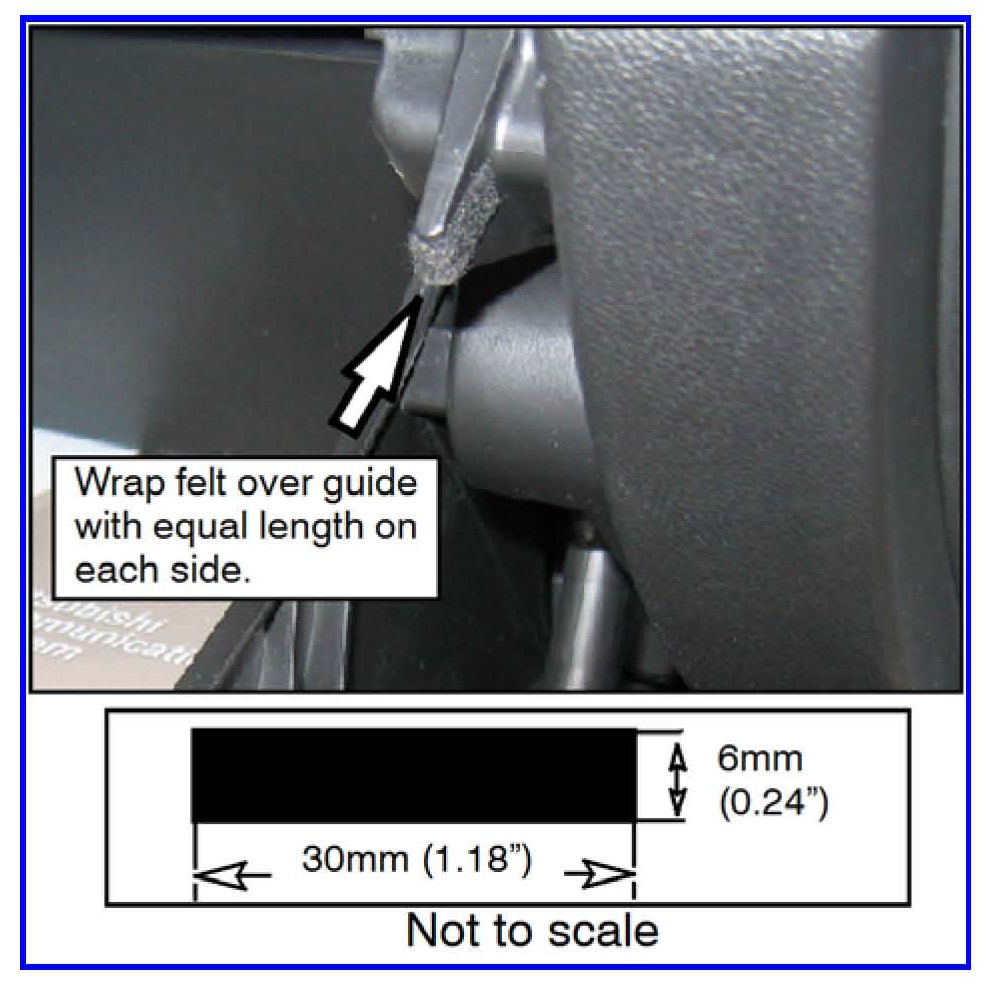

2. Cut a 6mm x 30mm felt strip from the 1mm thick sheet of non-woven felt provided in the Noise Suppression Service Kit (p/n MB991752). Place it over the guide at the RH side of the glove box opening as shown
in the photo. Press the felt against the guide to ensure proper adhesion.
3. Test drive the vehicle on a rough road to confirm the noise is no longer present.
PARTS INFORMATION
Use only the following Genuine Mitsubishi parts:
MB991752: Service Kit - Noise Suppression
One kit will be automatically shipped to each
dealer with stock orders beginning November
13, 2012.
Cut one 30mm x 6mm strip of 1mm thick non-woven felt per vehicle.
WARRANTY INFORMATION
This bulletin is supplied as technical information only and is not an authorization to repair. If an affected vehicle is reported with the described condition, diagnose the condition, repair as described in this bulletin and submit a normal warranty claim using the following information.
